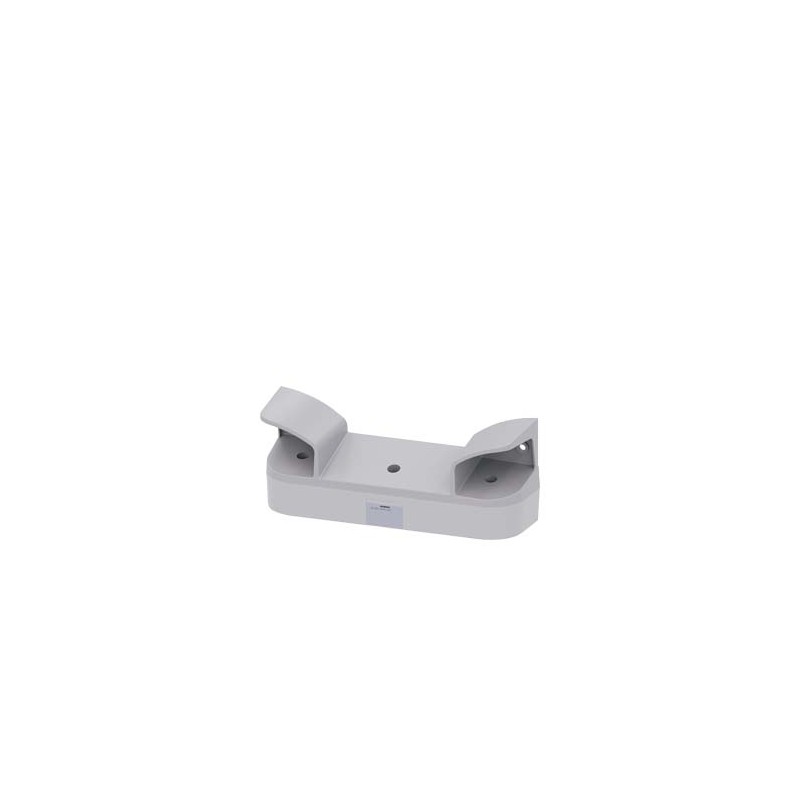

3SU1803-3AA00-0AA1 SIEMENS Two-hand operation console for command devices, 22 mm, round, Enclosure material .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1803-3AA00-0AA1 SIEMENS Two-hand operation console for command devices, 22 mm, round, Enclosure material ..

3SU1803-3AA00-0AA1

SIEMENS

two-hand operation console for command devices, 22 mm, round, enclosure material plastic, enclosure top part gray, 3 holes for command points, 8 additional preset breaking points for 22 mm command devices, without equipment, with cable cut-outs for metric screw connections

More details


Low-voltage industrial components > Two-hand control device

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $326.03
Unit price: $326.03
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

two-hand operation console for command devices, 22 mm, round, enclosure material plastic, enclosure top part gray, 3 holes for command points, 8 additional preset breaking points for 22 mm command devices, without equipment, with cable cut-outs for metric screw connections
product brand nameSIRIUS ACT
product designationTwo-hand operation console
product type designation3SU1
Enclosure
design of the housingTwo-hand operating console without standard equipment
material of the enclosureplastic
number of command points3
color of the enclosure top partgrey
delivery state
● as a kitNo
● pre-wired on strip terminalNo
fastening method of the enclosureHorizontal
Actuator
design of the actuating elementUnequipped
principle of operation of the actuating elementwithout
product feature
● lockoutNo
● staggered switchingNo
number of contact modules0
General technical data
product function
● positive openingNo
● EMERGENCY OFF functionNo
● EMERGENCY STOP functionNo
product component stand/pedestalNo
protection class IPIP66
degree of protection NEMA rating1, 4X, 12K, indoor use only, 13
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
vibration resistance according to IEC 60068-2-610 ... 500 Hz: 5g
reference code according to IEC 81346-2U
Substance Prohibitance (Date)10/01/2014
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Connections/ Terminals
type of electrical connection on enclosureCable routing at the rear 2 x M25
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
height185.3 mm
width469.2 mm
depth137.4 mm
Accessories
number of backing plates0
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

UL

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Test CertificatesMarine / Shipping

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1803-3AA00-0AA1
Product Descriptiontwo-hand operation console for command devices, 22 mm, round, enclosure material plastic, enclosure top part gray, 3 holes for command points, 8 additional preset breaking points for 22 mm command devices, without equipment, with cable cut-outs for metric screw connections
Product familyTwo-hand operation consoles
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)2,107 Kg
Packaging Dimension222,00 x 520,00 x 182,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209953772
UPC804766075216
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-19
eClass7.127-37-12-19
eClass827-37-12-19
eClass927-37-12-19
eClass9.127-37-12-19
ETIM5EC001260
ETIM6EC001260
ETIM7EC001260
ETIM8EC001260
IDEA45219
UNSPSC1539-12-22-21

ETIM data

ETIM: EC001260 - Two-hand control device

Value Unit
Prewiring on terminal rail (EF002404) false
Suitable for emergency stop (EF001433) false
With switch lock (EF002405) false
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Version as assembly kit (EF002406) false
Scheme for two-hand control (EF002407) true
With foot (EF002408) false
Stepped switching (EF002409) false



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1803-3AA00-0AA1 3SU1803-3AA00-0AA1 EN_3SU1803-3AA00-0AA1.pdf 335 Kbytes 3SU1803-3AA00-0AA1 3SU1803-3AA00-0AA1 EN_3SU1803-3AA00-0AA1.pdf
