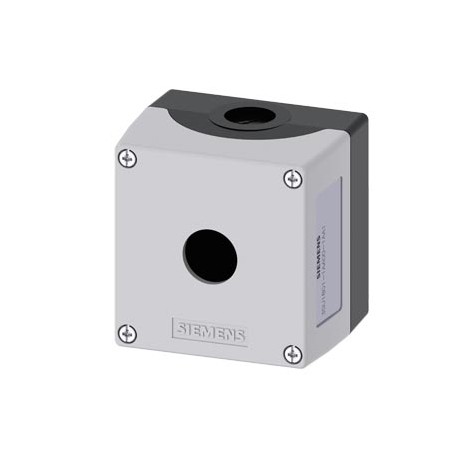

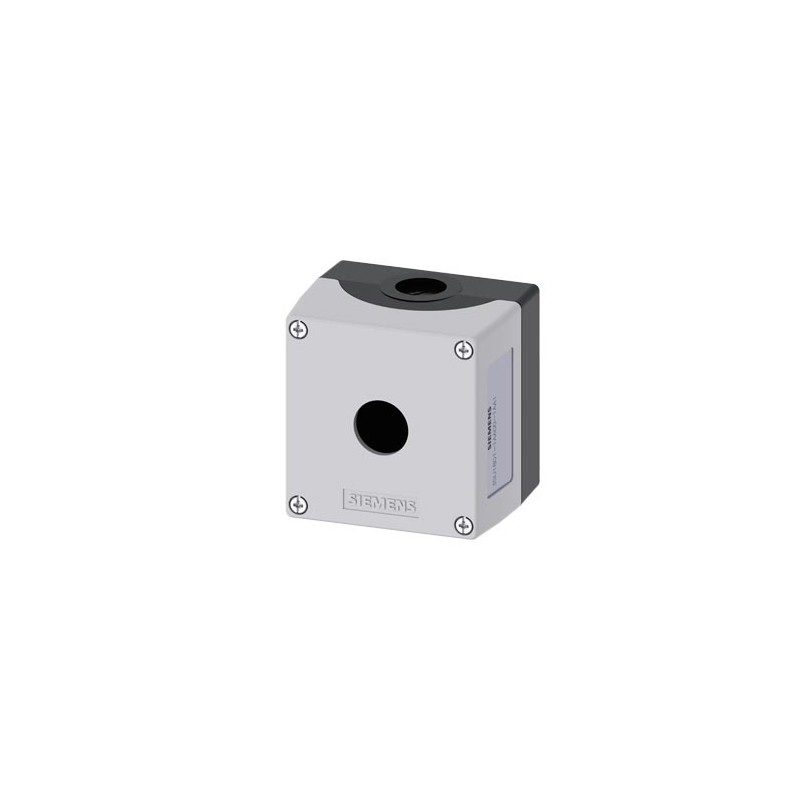

3SU1801-1AA00-1AA1 SIEMENS Enclosure for 4 position knob, coordinate, ID key-operated switches and sensor sw.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1801-1AA00-1AA1 SIEMENS Enclosure for 4 position knob, coordinate, ID key-operated switches and sensor sw..

3SU1801-1AA00-1AA1

SIEMENS

Enclosure for 4 position knob, coordinate, ID key-operated switches and sensor switches, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, without equipment, only for front plate mounting

More details


Low-voltage industrial components > Enclosure for control circuit devices

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $18.90
Unit price: $18.90
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

Enclosure for 4 position knob, coordinate, ID key-operated switches and sensor switches, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, without equipment, only for front plate mounting
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
Enclosure
design of the housingCommand point in center
shape of the enclosure frontSquare
material of the enclosureplastic
number of command points1
product component protective collarNo
color of the enclosure top partgrey
fastening method of the enclosureVertical / horizontal
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
Substance Prohibitance (Date)10/01/2014
cable entry typeWithout
Connections/ Terminals
type of electrical connection on enclosureCable routing above and below, both 1 x M20
tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height85 mm
width85 mm
depth68 mm
mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

VDE

EAC

EC/EU-Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

Marine / Shippingother

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1801-1AA00-1AA1
Product DescriptionEnclosure for 4 position knob, coordinate, ID key-operated switches and sensor switches, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, without equipment, only for front plate mounting
Product familyEmpty enclosures
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,264 Kg
Packaging Dimension93,00 x 98,00 x 81,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209961043
UPC804766075117
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-05
eClass7.127-37-12-05
eClass827-37-12-05
eClass927-37-12-05
eClass9.127-37-12-05
ETIM5EC000200
ETIM6EC000200
ETIM7EC000200
ETIM8EC000200
IDEA45219
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000200 - Enclosure for control circuit devices

Value Unit
Material quality housing (EF008135) -
Degree of protection (IP) (EF005474) -
Number of command positions (EF001372) 1
Construction type housing (EF004008) Surface mounting housing
Material housing (EF001596) Plastic
Diameter openings (EF000243) 22.3mm
Colour housing cover (EF001373) Grey
Degree of protection (NEMA) (EF011959) 13
Width (EF000008) 85.0mm
Height (EF000040) 85.0mm
Depth (EF000049) 68.0mm
