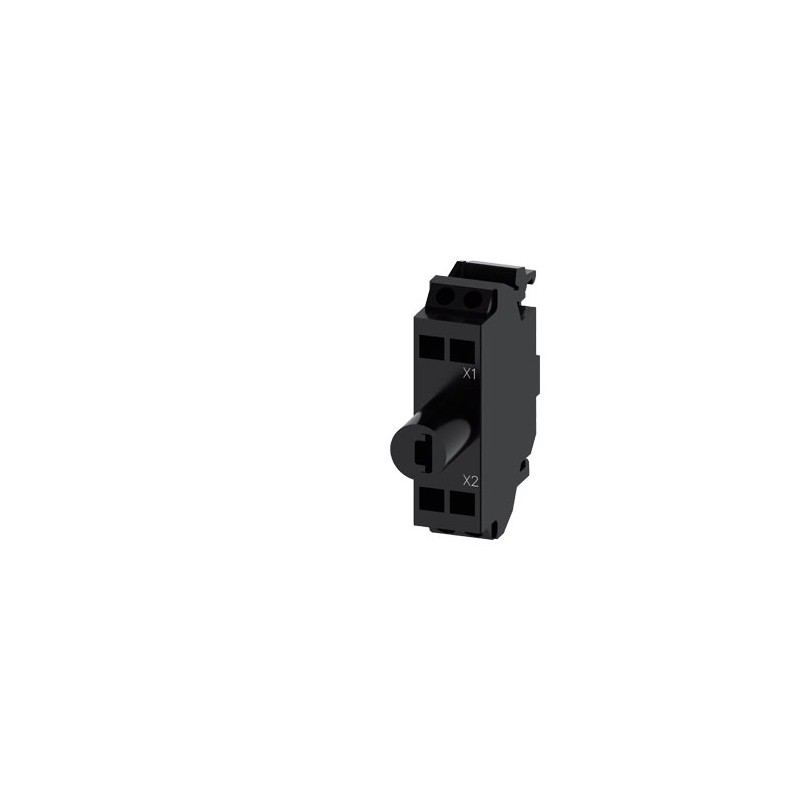

3SU1401-2BC20-3AA0 SIEMENS LED module with integrated LED 110 V AC, red, spring-type terminal, for floor mou.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1401-2BC20-3AA0 SIEMENS LED module with integrated LED 110 V AC, red, spring-type terminal, for floor mou..

3SU1401-2BC20-3AA0

SIEMENS

LED module with integrated LED 110 V AC, red, spring-type terminal, for floor mounting

LED MODULE WITH INTEGRATED LED 110V AC, RED, SPRING TERMINALS, FOR BASE FIXING.

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $18.10
Unit price: $18.10
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

LED module with integrated LED 110 V AC, red, spring-type terminal, for floor mounting
product brand nameSIRIUS ACT
product designationLED module
product type designation3SU1
General technical data
product component
● diodeYes
● lamp transformerNo
● light sourceYes
● series resistorNo
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC
● for actuationAC
surge voltage resistance rated value4 kV
consumed current maximum20 mA
protection class IP
● of the enclosureIP40
● of the terminalIP20
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating period typical100 000 h
reference code according to IEC 81346-2P
Substance Prohibitance (Date)10/01/2014
operating voltage 1
● at AC
— at 50 Hz rated value110 V
— at 60 Hz rated value110 V
relative positive tolerance of the operating voltage20 %
relative negative tolerance of the operating voltage20 %
Control circuit/ Control
inrush current maximum3 A
Connections/ Terminals
type of electrical connectionspring-loaded terminals
type of connectable conductor cross-sections
● solid without core end processing2x (0.25 ... 1.5 mm²)
● finely stranded with core end processing2x (0.25 ... 0.75 mm²)
● finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables2x (24 ... 16)
Lamp
type of light sourceLED
color of the light sourcered
light intensity450 ... 1 120 mcd
certificate of suitability
● ATEXNo
● IECExNo
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening method
● of modules and accessoriesFloor mounting
height36 mm
width9.8 mm
depth29.4 mm
suitability for integration
● plastic enclosureYes
● metal enclosureYes
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

Marine / Shippingother

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/9/2022
Date
5/9/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1401-2BC20-3AA0
Product DescriptionLED module with integrated LED 110 V AC, red, spring-type terminal, for floor mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,010 Kg
Packaging Dimension30,00 x 35,00 x 10,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209943377
UPC804766074219
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-09
eClass7.127-37-12-09
eClass827-37-12-09
eClass927-37-12-09
eClass9.127-37-12-09
ETIM5EC000204
ETIM6EC000204
ETIM7EC000204
ETIM8EC000204
IDEA44771
UNSPSC1539-12-15-44

ETIM data

ETIM: EC000204 - Lamp holder block for control circuit devices

Value Unit
Type of fastening (EF002442) -
Transformer integrated (EF001358) false
With integrated voltage decreasing resistor (EF001399) false
With light source (EF005905) true
With integrated diode (EF001400) true
Lamp holder (EF000048) None
Rated voltage Ue at AC 50 Hz (EF007029) ['-', '-']V
Rated voltage Ue at AC 60 Hz (EF007030) ['-', '-']V
Rated voltage Ue at DC (EF007031) ['-', '-']V
Voltage type for actuating (EF008242) AC
Lamp type (EF002423) LED
Connection type auxiliary circuit (EF006820) Spring clamp connection
Colour lamp (EF001402) Red
