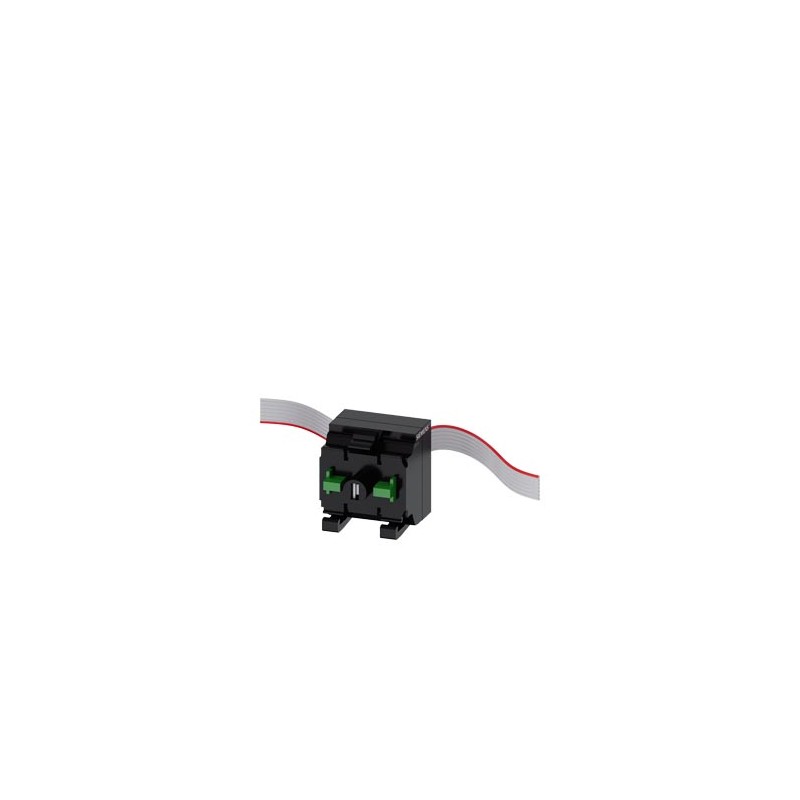

3SU1401-1MC20-1CA1 SIEMENS SIRIUS ACT: Terminal module (Command and LED module), integrated LED red, for fro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1401-1MC20-1CA1 SIEMENS SIRIUS ACT: Terminal module (Command and LED module), integrated LED red, for fro..

3SU1401-1MC20-1CA1

SIEMENS

SIRIUS ACT: terminal module (command and LED module), integrated LED red, for front plate mounting

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $58.28
Unit price: $58.28
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SIRIUS ACT: terminal module (command and LED module), integrated LED red, for front plate mounting
product brand nameSIRIUS ACT
product designationTerminal module
design of the productwith 2 contacts and integrated LED
product type designation3SU1
Display
display version
● for diagnostic function: Supply voltage monitoring power LEDYes
● status Tx/Rx linkNo
General technical data
product function
● reverse polarity protectionYes; Ribbon cable can be rotated 180°.
● diagnostics functionYes
firmware version1.0.0
hardware version1
software version with STEP 7 in the TIA Portal requiredV13 SP1 (V13 SP1 and V14 with HSP0132)
power loss [W] typical0.115 W
degree of pollution3
type of voltage
● of the operating voltageDC
● of the input voltageDC
surge voltage resistance rated value0.8 kV
consumed current
● maximum27 mA
● rated value23 mA
protection class IPIP20
reference code according to IEC 81346-2K
Substance Prohibitance (Date)12/19/2016
Communication/ Protocol
protocol is supported
● PROFIsafe protocolNo
Connections/ Terminals
type of electrical connectionInsulation displacement connection
type of connectable conductor cross-sectionsRibbon cable 7-pole, 7 x 0.08 mm2
connectable conductor cross-section for auxiliary contacts
● solid or stranded0.08 ... 0.08 mm²
● finely stranded with core end processing0.08 mm²
connectable conductor cross-section
● solid0.08 ... 0.08 mm²
● solid with core end processing0.08 ... 0.08 mm²
● finely stranded with core end processing0.08 ... 0.08 mm²
● finely stranded without core end processing0.08 ... 0.08 mm²
AWG number as coded connectable conductor cross section28 ... 28
Lamp
color of the light sourcered
Safety related data
service life maximum20 y
Ambient conditions
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
explosion protection marking for intrinsic safety of related equipment EEx iaNo
explosion protection marking for intrinsic safety of related equipment EEx ibNo
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height32.6 mm
width30 mm
depth31.5 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

UL

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Test Certificatesother

Special Test Certificate

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1401-1MC20-1CA1
Product DescriptionSIRIUS ACT: terminal module (command and LED module), integrated LED red, for front plate mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,021 Kg
Packaging Dimension65,00 x 80,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209965805
UPC804766476341
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5453
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 19.12.2016
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-13
eClass7.127-37-92-13
eClass827-37-92-13
eClass927-37-92-13
eClass9.127-37-92-13
ETIM5EC002024
ETIM6EC002024
ETIM7EC002024
ETIM8EC002024
IDEA45226
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002024 - Accessories/spare parts for command devices

Value Unit
Type of electrical accessory/spare part (EF005722) -
Type of mechanical accessory/spare part (EF005994) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1401-1MC20-1CA1 3SU1401-1MC20-1CA1 EN_3SU1401-1MC20-1CA1.pdf 243 Kbytes 3SU1401-1MC20-1CA1 3SU1401-1MC20-1CA1 EN_3SU1401-1MC20-1CA1.pdf
