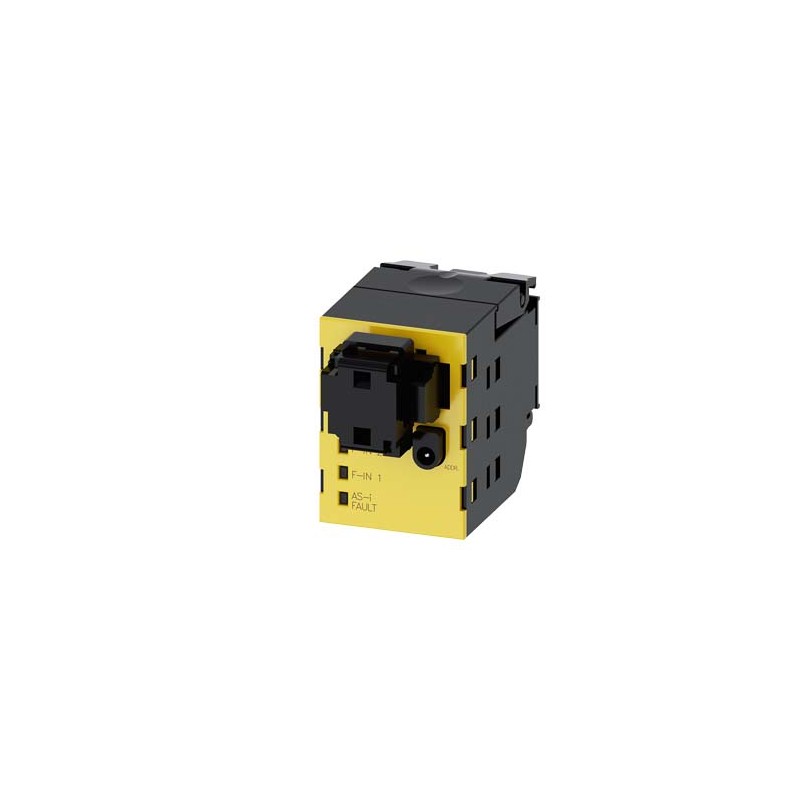

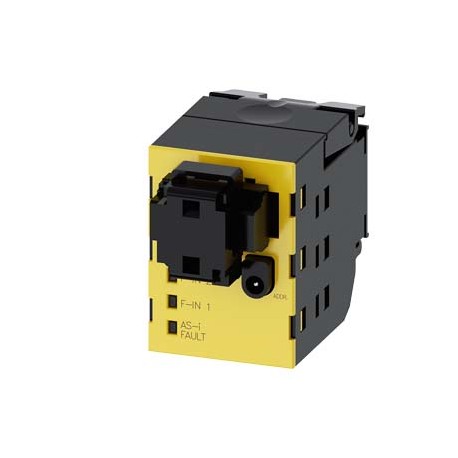

3SU1401-1EE20-4AA0 SIEMENS AS-Interface module, 2 safe inputs, 1 LED, red, spring-type terminal and insulati.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1401-1EE20-4AA0 SIEMENS AS-Interface module, 2 safe inputs, 1 LED, red, spring-type terminal and insulati..

3SU1401-1EE20-4AA0

SIEMENS

AS-Interface module, 2 safe inputs, 1 LED, red, spring-type terminal and insulation displacement system, for front plate mounting

More details


Low-voltage industrial components > Accessories/spare parts for command devices

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $255.94
Unit price: $255.94

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-Interface module, 2 safe inputs, 1 LED, red, spring-type terminal and insulation displacement system, for front plate mounting
product brand nameSIRIUS ACT
product designationAS-Interface module
product type designation3SU1
General technical data
product function2F-DI / 1 LED
degree of pollution3
type of voltage
● of the operating voltageDC
● of the input voltageDC
consumed current maximum60 mA
protection class IPIP20
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2K
Substance Prohibitance (Date)10/01/2014
design of the slave type2 F-DI + 1 LED
AS-Interface slave profileS-7.B.F
ID1 code0...F
number of AS-i slaves1
protocol is supported ASIsafe (Safety at work) protocolYes
operating voltage rated value26.5 ... 31.6 V
operating voltage 1 at DC rated value30 V
Communication/ Protocol
protocol is supported AS-Interface protocolYes
Inputs/ Outputs
number of digital inputs
● safety-related2
number of digital outputs1; For controlling the LED
Connections/ Terminals
type of electrical connectionInsulation displacement method
Lamp
color of the light sourcered
Product Function
suitability for use safety-related circuitsYes
Safety related data
Safety Integrity Level (SIL) according to IEC 615083
SIL Claim Limit (subsystem) according to EN 62061SILCL 3
performance level (PL) according to EN ISO 13849-1e
Safe failure fraction (SFF)99 %
average diagnostic coverage level (DCavg)99 %
PFHD with high demand rate according to EN 620610.0000000045 1/h
PFDavg with low demand rate according to IEC 615080.000005
category according to EN 954-14
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening method
● of modules and accessoriesFront plate mounting
● of AS-i slavesFrontplattenbefestigung
height42 mm
width30 mm
depth66.9 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFunctional Safety/Safety of MachineryDeclaration of Conformity

Confirmation

UL

EAC

RCM

Type Examination Certificate

EC/EU-Declaration of Conformity

Declaration of ConformityTest Certificatesother

UK Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ASI-Certification

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1401-1EE20-4AA0
Product DescriptionAS-Interface module, 2 safe inputs, 1 LED, red, spring-type terminal and insulation displacement system, for front plate mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,090 Kg
Packaging Dimension50,00 x 64,00 x 85,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209936966
UPC804766074059
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5453
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-13
eClass7.127-37-92-13
eClass827-37-92-13
eClass927-37-92-13
eClass9.127-37-92-13
ETIM5EC002024
ETIM6EC002024
ETIM7EC002024
ETIM8EC002024
IDEA45226
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002024 - Accessories/spare parts for command devices

Value Unit
Type of electrical accessory/spare part (EF005722) other / AS-Interface module
Type of mechanical accessory/spare part (EF005994) -


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3SU1401-1EE20-4AA0 3SU1401-1EE20-4AA0 EN_3SU1401-1EE20-4AA0.pdf 164 Kbytes 3SU1401-1EE20-4AA0 3SU1401-1EE20-4AA0 EN_3SU1401-1EE20-4AA0.pdf
