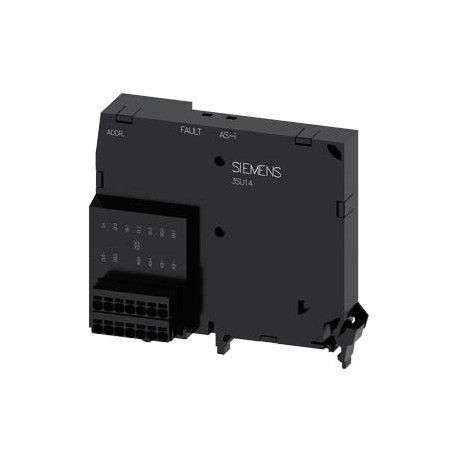

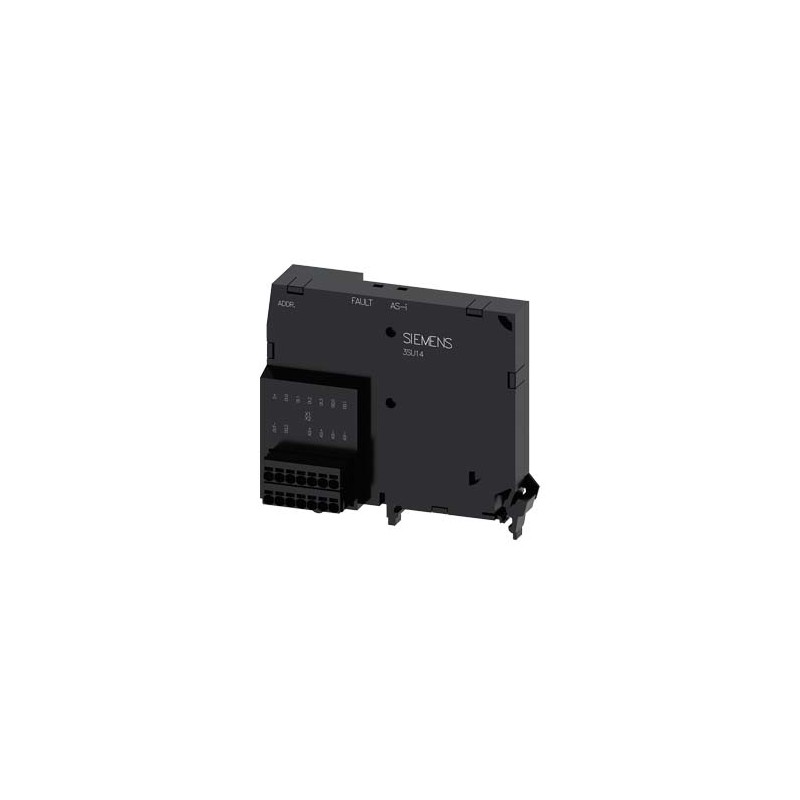

3SU1400-2EJ10-6AA0 SIEMENS AS-Interface module, A/B slave, 4 inputs and 3 outputs, black, Spring-type termin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-2EJ10-6AA0 SIEMENS AS-Interface module, A/B slave, 4 inputs and 3 outputs, black, Spring-type termin..

3SU1400-2EJ10-6AA0

SIEMENS

AS-Interface module, A/B slave, 4 inputs and 3 outputs, black, Spring-type terminal (Push-in), for input/output, for floor mounting

MODULO AS-INTERFACE, ESCL. A/B 4 INPUTS AND 3 OUTPUTS, BLACK, PUSH-IN TERMINALS + CONNECTOR FOR INPUT/OUTPUT, FOR BASE FIXING.

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $202.91
Unit price: $202.91
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-Interface module, A/B slave, 4 inputs and 3 outputs, black, Spring-type terminal (Push-in), for input/output, for floor mounting
product brand nameSIRIUS ACT
product designationAS-Interface module
product type designation3SU1
General technical data
product function4 DI / 3 DQ AB
degree of pollution3
type of voltage
● of the operating voltageDC
● of the input voltageDC
consumed current maximum150 mA
protection class IPIP20
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2K
Substance Prohibitance (Date)10/01/2014
design of the slave type4 DI /3 DQ AB
AS-Interface slave profileS-7.A.E
ID1 code0...7
number of AS-i slaves1
protocol is supported ASIsafe (Safety at work) protocolNo
operating voltage rated value18 ... 31.6 V
operating voltage 1 at DC rated value30 V
Communication/ Protocol
protocol is supported AS-Interface protocolYes
Inputs/ Outputs
number of digital inputs4
● safety-related0
number of digital outputs3
Connections/ Terminals
type of electrical connectionspring-loaded terminal (push-in)
type of connectable conductor cross-sections
● solid without core end processing1x (0.14 ... 0.5 mm²)
● finely stranded without core end processing1x (0.2 ... 0.5 mm²)
● at AWG cables1x (26 ... 20)
Product Function
suitability for use safety-related circuitsNo
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening method
● of modules and accessoriesFloor mounting
● of AS-i slavesFloor mounting
height57.5 mm
width23.8 mm
depth53.5 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Test Certificatesother

Special Test Certificate

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1400-2EJ10-6AA0
Product DescriptionAS-Interface module, A/B slave, 4 inputs and 3 outputs, black, Spring-type terminal (Push-in), for input/output, for floor mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,058 Kg
Packaging Dimension62,00 x 82,00 x 52,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209953314
UPC804766073427
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5453
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-13
eClass7.127-37-92-13
eClass827-37-92-13
eClass927-37-92-13
eClass9.127-37-92-13
ETIM5EC002024
ETIM6EC002024
ETIM7EC002024
ETIM8EC002024
IDEA45226
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002024 - Accessories/spare parts for command devices

Value Unit
Type of electrical accessory/spare part (EF005722) other / AS-Interface module
Type of mechanical accessory/spare part (EF005994) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1400-2EJ10-6AA0 3SU1400-2EJ10-6AA0 EN_3SU1400-2EJ10-6AA0.pdf 285 Kbytes 3SU1400-2EJ10-6AA0 3SU1400-2EJ10-6AA0 EN_3SU1400-2EJ10-6AA0.pdf
