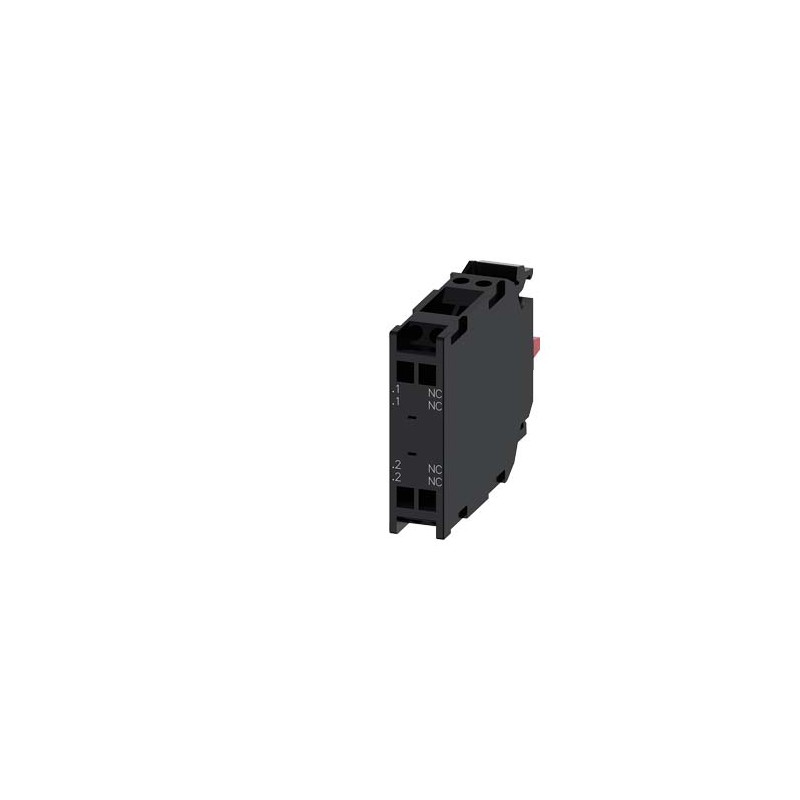

3SU1400-1AA10-3EA0 SIEMENS Contact module with 2 contact elements, 2 NC, spring-type terminal, for front pla.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-1AA10-3EA0 SIEMENS Contact module with 2 contact elements, 2 NC, spring-type terminal, for front pla..

3SU1400-1AA10-3EA0

SIEMENS

Contact module with 2 contact elements, 2 NC, spring-type terminal, for front plate mounting

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $14.12
Unit price: $14.12
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Contact module with 2 contact elements, 2 NC, spring-type terminal, for front plate mounting
product brand nameSIRIUS ACT
product designationContact module
product type designation3SU1
Contact block/ lampholder
socket designother
General technical data
product function positive openingYes
insulation voltage rated value500 V
degree of pollution3
type of voltage
● of the operating voltageAC/DC
● of the input voltageAC/DC
surge voltage resistance rated value6 kV
protection class IP
● of the enclosureIP40
● of the terminalIP20
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3 600 1/h
mechanical service life (switching cycles) typical10 000 000
electrical endurance (switching cycles) typical10 000 000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A
Substance Prohibitance (Date)10/01/2014
operating voltage
● at AC
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC rated value5 ... 500 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts2
● lagging switching0
number of NO contacts for auxiliary contacts0
● leading contact0
operational current at AC-12
● at 24 V rated value10 A
● at 48 V rated value10 A
● at 110 V rated value10 A
● at 230 V rated value8 A
● at 400 V rated value8 A
operational current at AC-15
● at 24 V rated value6 A
● at 48 V rated value6 A
● at 110 V rated value6 A
● at 230 V rated value6 A
● at 400 V rated value3 A
● at 500 V rated value1.4 A
operational current at DC-12
● at 24 V rated value10 A
● at 48 V rated value5 A
● at 110 V rated value2.5 A
● at 230 V rated value1 A
● at 400 V rated value0.3 A
● at 500 V rated value0.3 A
operational current at DC-13
● at 24 V rated value3 A
● at 48 V rated value1.5 A
● at 110 V rated value0.7 A
● at 230 V rated value0.3 A
● at 400 V rated value0.1 A
● at 500 V rated value0.1 A
Connections/ Terminals
type of electrical connectionspring-loaded terminals
type of connectable conductor cross-sections
● solid without core end processing2x (0.25 ... 1.5 mm²)
● finely stranded with core end processing2x (0.25 ... 0.75 mm²)
● finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables2x (24 ... 16)
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
● of modules and accessoriesFront plate mounting
height36 mm
width9.8 mm
depth49.7 mm
suitability for integration
● plastic enclosureNo
● metal enclosureNo
Certificates/ approvals

Downloads and manuals

General Product Approval

CSA

CCC

Confirmation

UL

VDE

KC

General Product ApprovalDeclaration of ConformityTest CertificatesMarine / Shipping

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

Marine / Shippingother

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/9/2022
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1400-1AA10-3EA0
Product DescriptionContact module with 2 contact elements, 2 NC, spring-type terminal, for front plate mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorLBO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works75 Day/Days
Net Weight (kg)0,017 Kg
Packaging Dimension73,00 x 87,00 x 27,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209951013
UPC804766360213
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-13-02
eClass7.127-37-13-02
eClass827-37-13-02
eClass927-37-13-02
eClass9.127-37-13-02
ETIM5EC000041
ETIM6EC000041
ETIM7EC000041
ETIM8EC000041
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000041 - Auxiliary contact block

Value Unit
Model (EF000010) -
Mounting method (EF000003) -
Number of fault-signal switches (EF007613) -
Lamp holder (EF000048) -
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 2
Rated operation current Ie at AC-15, 230 V (EF001385) 6A
Type of electric connection (EF003961) Spring clamp connection



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1400-1AA10-3EA0 3SU1400-1AA10-3EA0 EN_3SU1400-1AA10-3EA0.pdf 297 Kbytes 3SU1400-1AA10-3EA0 3SU1400-1AA10-3EA0 EN_3SU1400-1AA10-3EA0.pdf
