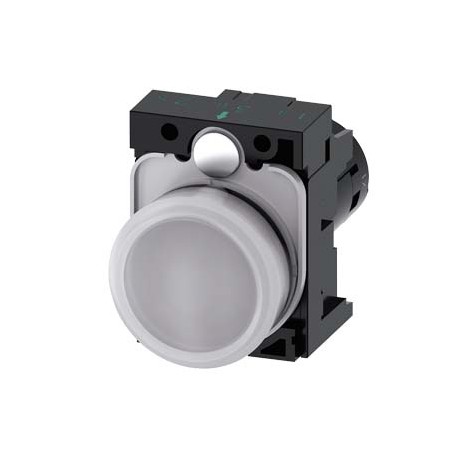

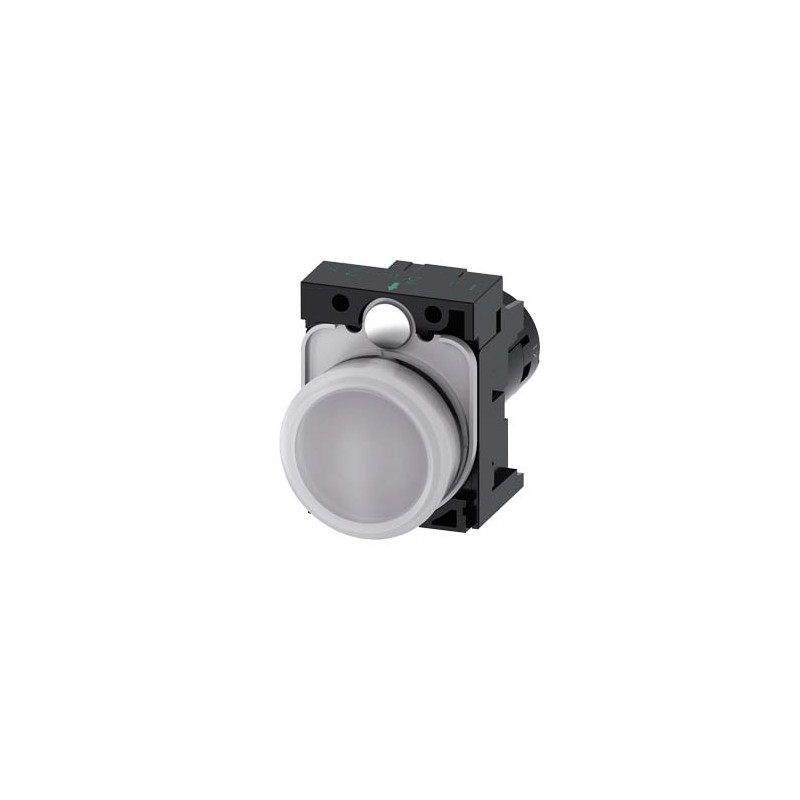

3SU1201-6AC60-1AA0 SIEMENS Indicator lights, compact, 22 mm, round, plastic, white, lens, smooth, with holde.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1201-6AC60-1AA0 SIEMENS Indicator lights, compact, 22 mm, round, plastic, white, lens, smooth, with holde..

3SU1201-6AC60-1AA0

SIEMENS

Indicator lights, compact, 22 mm, round, plastic, white, lens, smooth, with holder, Operating voltage 110 V AC, screw terminal

More details


Low-voltage industrial components > Indicator light complete

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000272 - Indicator light complete

Value Unit
Voltage type (EF000187) -
Rated operating voltage Ue (EF002418) -V
Degree of protection (IP) (EF005474) -
Number of indicator lights (EF001965) 1
Colour lens (EF000207) -
Type of lamp socket (EF008229) -
With light source (EF005905) true
Type of electric connection (EF003961) Screw connection
Construction type lens (EF006253) Round
Type of lens (EF008343) High
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 29.5mm
Height opening (EF004778) 12.9mm
With front ring (EF006014) false
Material front ring (EF005972) -
Colour front ring (EF002429) -
Degree of protection (NEMA) (EF011959) NEMA 1, 2, 3, 3R, 4, 4X, 12, 13


Indicator lights, compact, 22 mm, round, plastic, white, lens, smooth, with holder, Operating voltage 110 V AC, screw terminal
Product brand nameSIRIUS ACT
Product designationIndicator lights
Design of the productCompact unit
Product type designation3SU1
Product linePlastic, black, 22 mm
Manufacturer's article number
● of the supplied holder3SU1500-0AA10-0AA0
Enclosure
Shape of the enclosure frontround
Actuator
Product extension optional Light sourceNo
Color
● of the actuating elementwhite
Material of the actuating elementplastic
Shape of the actuating elementround
Outer diameter of the actuating element29.5 mm
Front ring
Product component front ringNo
Holder
Material of the holderPlastic
General technical data
Product component
● Light sourceYes
Insulation voltage
● rated value320 V
Degree of pollution3
Surge voltage resistance rated value4 kV
Consumed current
● maximum20 mA
Protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
Degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
Shock resistance
● acc. to IEC 60068-2-27Sinusoidal half-wave 50 g / 11 ms
● for railway applications acc. to DIN EN 61373Category 1, Class B
Vibration resistance
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
Operating period typical100 000 h
Reference code acc. to DIN EN 81346-2P
Reference code acc. to DIN EN 61346-2P
Supply voltage
Type of voltage of the supply voltage
● of the light sourceAC
Supply voltage of the light source at AC
● at 50 Hz rated value110 V
● at 60 Hz rated value110 V
Relative negative tolerance of the supply voltage20 %
Relative positive tolerance of the supply voltage20 %
Control circuit/ Control
Inrush current maximum3 A
Connections/ Terminals
Type of electrical connectionscrew-type terminals
Type of connectable conductor cross-sections
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG conductors2x (18 ... 14)
Tightening torque of the screws in the bracket1 ... 1.2 N·m
Tightening torque
● with screw-type terminals0.8 ... 1 N·m
Lamp
Type of light sourceLED
Color of the light sourcewhite
Light intensity900 ... 1 400 mcd
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
Height40 mm
Width30 mm
Shape of the installation openinground
Mounting diameter22.3 mm
Positive tolerance of installation diameter0.4 mm
Mounting height12.9 mm
Installation width29.5 mm
Installation depth49.6 mm
Certificates/ approvals
General Product ApprovalDeclaration of Conformity

CCC

CSA

UL

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Test Certificatesother

Type Test Certificates/Test Report

Special Test Certificate

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/19/2020


Product
Article Number (Market Facing Number)3SU1201-6AC60-1AA0
Product DescriptionIndicator lights, compact, 22 mm, round, plastic, white, lens, smooth, with holder, Operating voltage 110 V AC, screw terminal
Product familyActuators and indicators, 22 mm, round, plastic, black
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,049 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension83,00 x 139,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209945098
UPC804766751271
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-23
eClass7.127-37-12-23
eClass827-37-12-23
eClass927-37-12-23
eClass9.127-37-12-23
ETIM4EC000272
ETIM5EC000272
ETIM6EC000272
ETIM7EC000272
IDEA44766
UNSPSC1539-12-15-34
