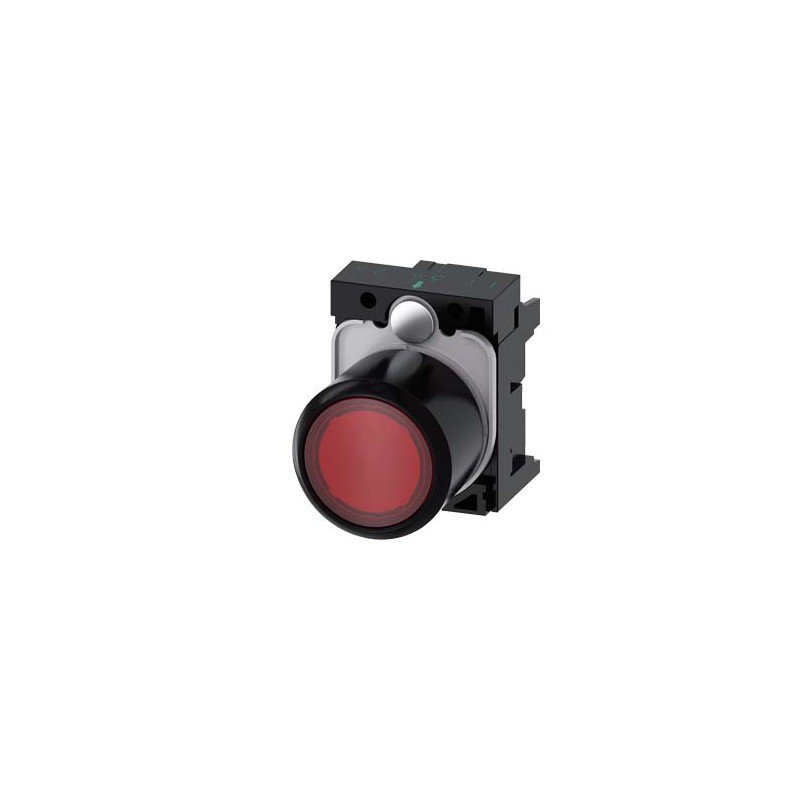

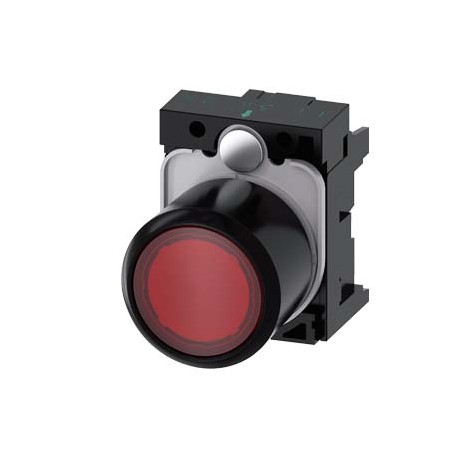

3SU1201-0EB20-0AA0 SIEMENS Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic, red tra.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1201-0EB20-0AA0 SIEMENS Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic, red tra..

3SU1201-0EB20-0AA0

SIEMENS

Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic, red transparent, pushbutton, flat, momentary contact type, with holder

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $58.90
Unit price: $58.90
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic, red transparent, pushbutton, flat, momentary contact type, with holder
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
Enclosure
number of command points1
Actuator
design of the actuating elementFlat button with extended stroke, transparent
principle of operation of the actuating elementmomentary contact type
product extension optional
● light sourceYes
● contact moduleYes
color of the actuating elementred
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29.5 mm
Front ring
product component front ringYes
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3 600 1/h
mechanical service life (switching cycles) typical5 000 000
reference code according to IEC 81346-2S
Substance Prohibitance (Date)10/01/2014
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)
Installation/ mounting/ dimensions
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height20.3 mm
installation width29.5 mm
installation depth30.9 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test Certificatesother

Special Test Certificate

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1201-0EB20-0AA0
Product DescriptionPushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic, red transparent, pushbutton, flat, momentary contact type, with holder
Product familyActuators and indicators, 22 mm, round, plastic, black
Product Lifecycle (PLM)PM300:Active Product
Notes
For this product a substitute is available: 3SU1201-0EB20-0AA03SU1201-0EB20-0AA0
Substitute information
Substitute3SU1201-0EB20-0AA0
Substitute DescriptionNot available
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,048 Kg
Packaging Dimension75,00 x 102,00 x 37,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209973855
UPC804766073144
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-10
eClass7.127-37-12-10
eClass827-37-12-10
eClass927-37-12-10
eClass9.127-37-12-10
ETIM5EC000221
ETIM6EC000221
ETIM7EC000221
ETIM8EC000221
IDEA45246
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000221 - Front element for push button

Value Unit
With protective cover (EF005500) -
Labelled (EF001537) -
Degree of protection (NEMA), front side (EF011961) -
Colour button (EF000190) Red
Number of command positions (EF001372) 1
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 29.5mm
Height opening (EF004778) 20.3mm
Type of button (EF001546) Other
Suitable for illumination (EF001142) true
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP), front side (EF003118) Other
