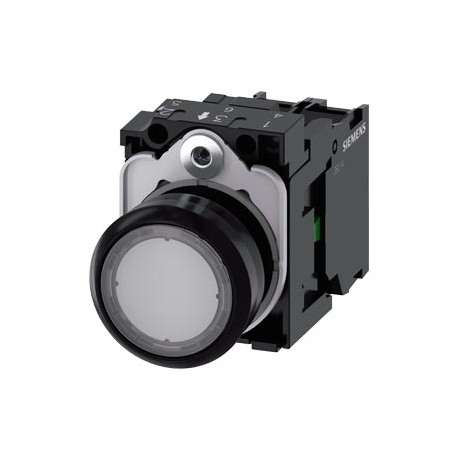

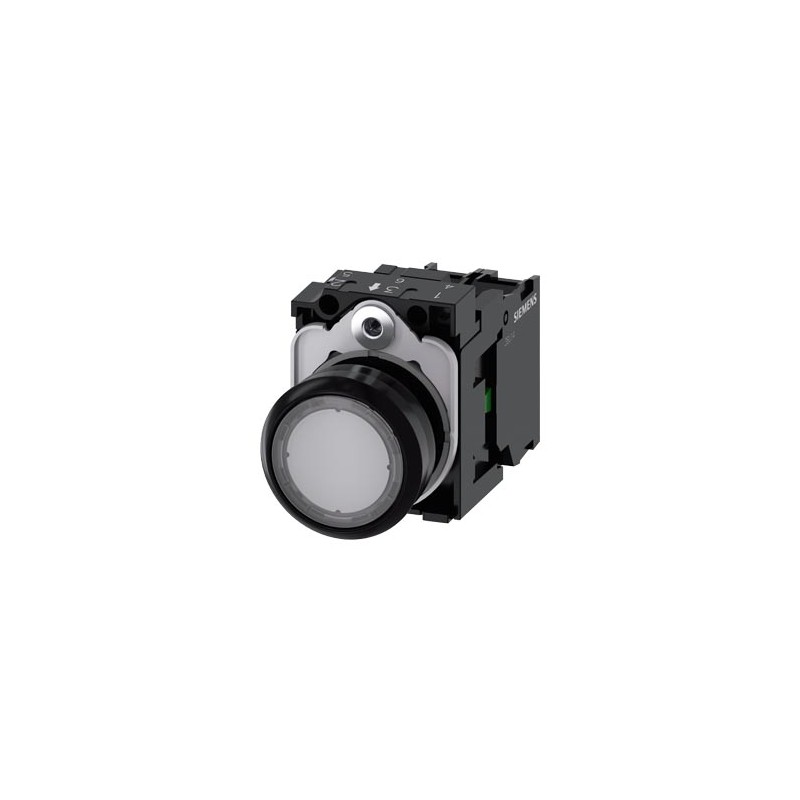

3SU1103-0AB70-1BA0 SIEMENS Illuminated pushbutton, 22 mm, round, plastic, clear, pushbutton, flat, momentary..
3SU1103-0AB70-1BA0
SIEMENS
Illuminated pushbutton, 22 mm, round, plastic, clear, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 110 V AC, screw terminal
Low-voltage industrial components > Push button, complete
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Related products
▲Best sellers
▲More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SU1103-0AB70-1BA0 | ||||||||||||||||||||||||||||||||||||
| Product Description | Illuminated pushbutton, 22 mm, round, plastic, clear, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 110 V AC, screw terminal | ||||||||||||||||||||||||||||||||||||
| Product family | Actuators and indicators, 22 mm, round, plastic, black | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,059 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 60,00 x 130,00 x 30,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209957442 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766070853 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001028 - Push button, complete
| Value | Unit | |
|---|---|---|
| Construction type lens (EF006253) | - | |
| Type of electric connection (EF003961) | - | |
| Number of command positions (EF001372) | 1 | |
| Type of button (EF001546) | Mushroom | |
| Colour button (EF000190) | Clear | |
| Hole diameter (EF000079) | 22.3 | mm |
| Width opening (EF004565) | 29.5 | mm |
| Height opening (EF004778) | 11.0 | mm |
| Suitable for illumination (EF001142) | true | |
| Switching function latching (EF007447) | FALSE | |
| Spring-return (EF001407) | FALSE | |
| Supply voltage lamp (EF006522) | 110 | V |
| Number of contacts as normally open contact (EF008256) | 1 | |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| With front ring (EF006014) | true | |
| Material front ring (EF005972) | Plastic | |
| Colour front ring (EF002429) | Black | |
| Degree of protection (IP) (EF005474) | IP67/IP69K | |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SU1103-0AB70-1BA0 3SU1103-0AB70-1BA0 EN_3SU1103-0AB70-1BA0.pdf | 366 Kbytes |
|
