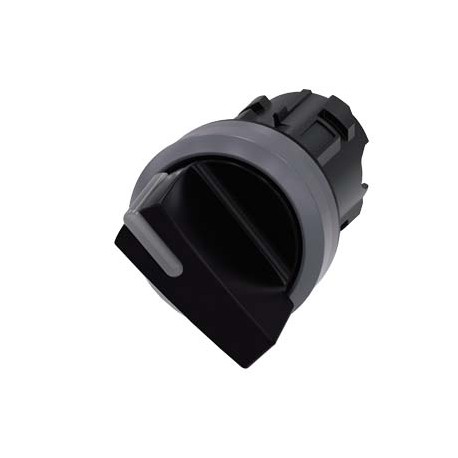

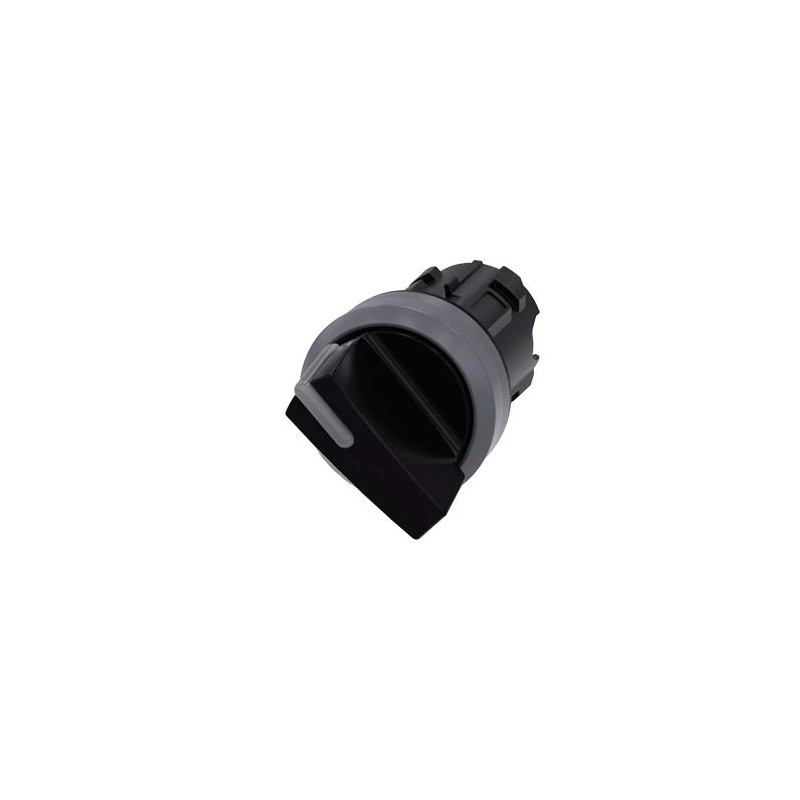

3SU1032-2BF10-0AA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic with metal front ring, black,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1032-2BF10-0AA0 SIEMENS Selector switch, illuminable, 22 mm, round, plastic with metal front ring, black,..

3SU1032-2BF10-0AA0

SIEMENS

Selector switch, illuminable, 22 mm, round, plastic with metal front ring, black, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h

More details


Low-voltage industrial components > Front element for selector switch

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


ETIM: EC000222 - Front element for selector switch

Value Unit
Type of control element (EF006976) -
Number of switch positions (EF000231) 2
Suitable for illumination (EF001142) true
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Rectangular
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 32.3mm
Height opening (EF004778) 28.8mm
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
With front ring (EF006014) true
Material front ring (EF005972) Metal
Colour front ring (EF002429) Grey
Degree of protection (IP), front side (EF003118) IP68
Degree of protection (NEMA) (EF011959) 4X


Selector switch, illuminable, 22 mm, round, plastic with metal front ring, black, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h
Product brand nameSIRIUS ACT
Product designationSelector switches
Design of the productActuating/signaling element
Product type designation3SU1
Product linePlastic with metal front ring, matt, 22 mm
Enclosure
Number of command points1
Actuator
Design of the operating mechanismSelector, short
Manner of function of the actuating elementlatching, 90° (10:30 h/13:30 h)
Product extension optional Light sourceYes
Color of the actuating elementblack
Material of the actuating elementplastic
Shape of the actuating elementHandle
Outer diameter of the actuating element32.3 mm
Number of switching positions2
Actuating angle
● clockwise90°
Front ring
Product component front ringYes
Design of the front ringstandard
Material of the front ringMetal, matt
Color of the front ringsand gray
General technical data
Protection class IPIP66, IP67, IP69(IP69K)
Degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
Shock resistance
● acc. to IEC 60068-2-27Sinusoidal half-wave 50 g / 11 ms
● for railway applications acc. to DIN EN 61373Category 1, Class B
Vibration resistance
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
Operating frequency maximum1 800 1/h
Mechanical service life (switching cycles)
● typical1 000 000
Reference code acc. to DIN EN 81346-2S
Reference code acc. to DIN EN 61346-2S
Safety related data
B10 value
● with high demand rate acc. to SN 31920100 000
Proportion of dangerous failures
● with low demand rate acc. to SN 3192020 %
● with high demand rate acc. to SN 3192020 %
Failure rate [FIT]
● with low demand rate acc. to SN 31920100 FIT
T1 value for proof test interval or service life acc. to IEC 6150820 y
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %)
Installation/ mounting/ dimensions
Height32.3 mm
Width32.3 mm
Shape of the installation openinground
Mounting diameter22.3 mm
Positive tolerance of installation diameter0.4 mm
Mounting height28.8 mm
Installation width32.3 mm
Installation depth25.4 mm
Certificates/ approvals
General Product ApprovalDeclaration of ConformityTest Certificates

CSA

UL

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Type Test Certificates/Test Report

Test CertificatesMarine / Shipping

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/06/2020


Product
Article Number (Market Facing Number)3SU1032-2BF10-0AA0
Product DescriptionSelector switch, illuminable, 22 mm, round, plastic with metal front ring, black, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h
Product familyActuators and indicators, 22 mm, plastic with metal front ring, matte
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,020 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension30,00 x 60,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621016795
UPC804766474521
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-13
eClass7.127-37-12-13
eClass827-37-12-13
eClass927-37-12-13
eClass9.127-37-12-13
ETIM5EC000222
ETIM6EC000222
ETIM7EC000222
IDEA45247
UNSPSC1539-12-22-21
