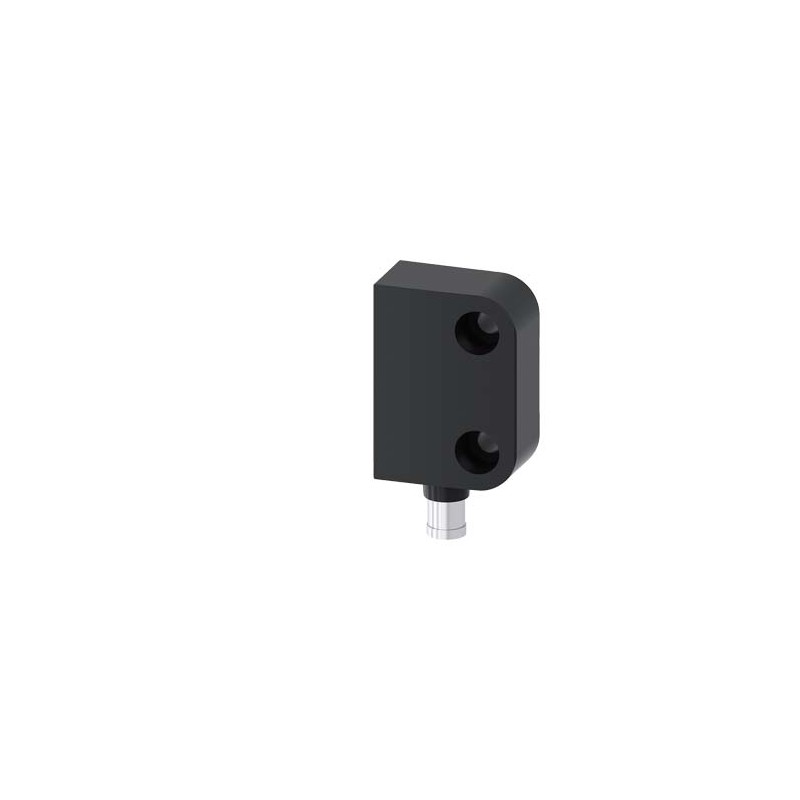

3SE6617-3CA01 SIEMENS Magnetically-operated switch Contact block, rectangular small 26 x 36 mm, for door hin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE6617-3CA01 SIEMENS Magnetically-operated switch Contact block, rectangular small 26 x 36 mm, for door hin..

3SE6617-3CA01

SIEMENS

magnetically-operated switch contact block, rectangular small 26 x 36 mm, for door hinge left, contacts: safety contacts 2 NC, signaling contact 1 NC (31-32), with 8 mm latching connection connector 6-pole, without LED, the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA

More details


Sensors > Magnetic proximity switch

CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $129.68
Unit price: $129.68
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

magnetically-operated switch contact block, rectangular small 26 x 36 mm, for door hinge left, contacts: safety contacts 2 NC, signaling contact 1 NC (31-32), with 8 mm latching connection connector 6-pole, without LED, the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA
product brand nameSIRIUS
product designationMagnetically operated switch
design of the productRectangular sensor unit
product type designation3SE66
suitability for use safety-related circuitsYes
General technical data
product function
● positive openingNo
● control function for downstream devicesNo
● cross-circuit/short-circuit recognitionYes
type of voltage of the operating voltageDC
protection class IPIP67
shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30g / 11 ms
vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm
reference code according to IEC 81346-2S
Substance Prohibitance (Date)07/01/2006
type of voltageDC
height of the sensor36 mm
length of the sensor13 mm
width of the sensor26 mm
material of the active sensor areaPlastic, glass-fiber reinforced thermoplastic
mechanical installation condition for sensorcan be installed almost flush
operating voltage rated value30 V
operational current rated value400 mA
operating power rated value10 W
number of NC contacts for auxiliary contacts3
number of NC contacts safety-related2
number of NO contacts for auxiliary contacts0
number of NO contacts safety-related0
Enclosure
material of the enclosurePlastic, glass-fiber reinforced thermoplastic
opening direction of the doorleft
Actuator
design of the actuating elementmagnet
Contact
switching frequency5 Hz
assured operating distance OFF15 mm
assured operating distance ON5 mm
design of the switching functionNC contact
number of switching contacts for signaling function1
● safety-related0
Connections/ Terminals
type of electrical connectionLatching connection 8 mm, 6-pole
Safety related data
B10 value with high demand rate according to SN 3192012 500 000
Safety Integrity Level (SIL) according to IEC 615083
performance level (PL) according to EN ISO 13849-1e
proportion of dangerous failures
● with low demand rate according to SN 3192050 %
● with high demand rate according to SN 3192050 %
T1 value for proof test interval or service life according to IEC 6150820 y
Ambient conditions
ambient temperature during operation-25 ... +70 °C
Inputs/ Outputs
number of semiconductor outputs
● for signaling function0
● safety-related0
number of outputs as contact-affected switching element
● as NC contact
— for signaling function instantaneous contact1
— safety-related instantaneous contact2
● as NO contact safety-related instantaneous contact0
Display
evaluation unit requiredyes
Installation/ mounting/ dimensions
fastening methodscrew fixing
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFunctional Safety/Safety of Machinery

Confirmation

UL

EAC

EAC

RCM

Miscellaneous

Declaration of Conformityother

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:10/6/2021
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE6617-3CA01
Product Descriptionmagnetically-operated switch contact block, rectangular small 26 x 36 mm, for door hinge left, contacts: safety contacts 2 NC, signaling contact 1 NC (31-32), with 8 mm latching connection connector 6-pole, without LED, the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA
Product familySIRIUS 3SE66, 3SE67 non-contact safety switches, magnet
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,028 Kg
Packaging Dimension90,00 x 108,00 x 19,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621001470
UPC804766058509
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group3750
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-27-24-02
eClass7.127-27-24-02
eClass827-27-24-02
eClass927-27-24-02
eClass9.127-27-24-02
ETIM5EC002544
ETIM6EC002544
ETIM7EC002544
ETIM8EC002544
UNSPSC1539-12-15-21

ETIM data

ETIM: EC002544 - Magnetic proximity switch

Value Unit
Degree of protection (NEMA) (EF011959) -
Category according to EN 954-1 (EF006782) -
With status indication (EF001602) -
Construction type housing (EF004008) -
Type of interface for safety communication (EF003956) -
Type of switching output (EF003962) -
Number of semiconductor outputs with signalling function (EF003945) 0
Number of contact energized outputs with signalling function (EF003946) 1
Number of protected semiconductor outputs (EF003951) 0
Number of protected contact energized outputs (EF003952) 0
Type of actuation (EF006949) Magnet
Type of electric connection (EF003961) Other
Width sensor (EF007094) 26.0mm
Height of sensor (EF007283) 36.0mm
Length of sensor (EF007334) 13.0mm
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Material housing (EF001596) Plastic
Coating housing (EF001601) -
Protected switch distance OFF (EF004011) 15.0mm
Protected switch distance ON (EF004012) 5.0mm
SIL according to IEC 61508 (EF009889) 3
Performance level according to EN ISO 13849-1 (EF007399) Level e
Ambient temperature (EF002386) ['-25', '70']°C
Mechanical mounting condition for sensor (EF004041) Quasi-flat
Rated supply voltage at AC 50 Hz (EF007076) ['-', 'DC']V
Rated supply voltage at AC 60 Hz (EF007077) ['-', 'DC']V
Rated supply voltage at DC (EF007078) ['-', 'DC']V
Voltage type (EF000187) DC
Cross-/short circuit identification possible (EF004093) true
With monitoring function downstream switching devices (EF004052) false
Suitable for safety functions (EF001597) true
Degree of protection (IP) (EF005474) IP67
Min. output current (EF004045) -mA
Max. output current at protected output (EF004035) -mA
Diameter sensor (EF007111) -mm
Switching distance (EF003647) -mm



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SE6617-3CA01 3SE6617-3CA01 EN_3SE6617-3CA01.pdf 449 Kbytes 3SE6617-3CA01 3SE6617-3CA01 EN_3SE6617-3CA01.pdf
