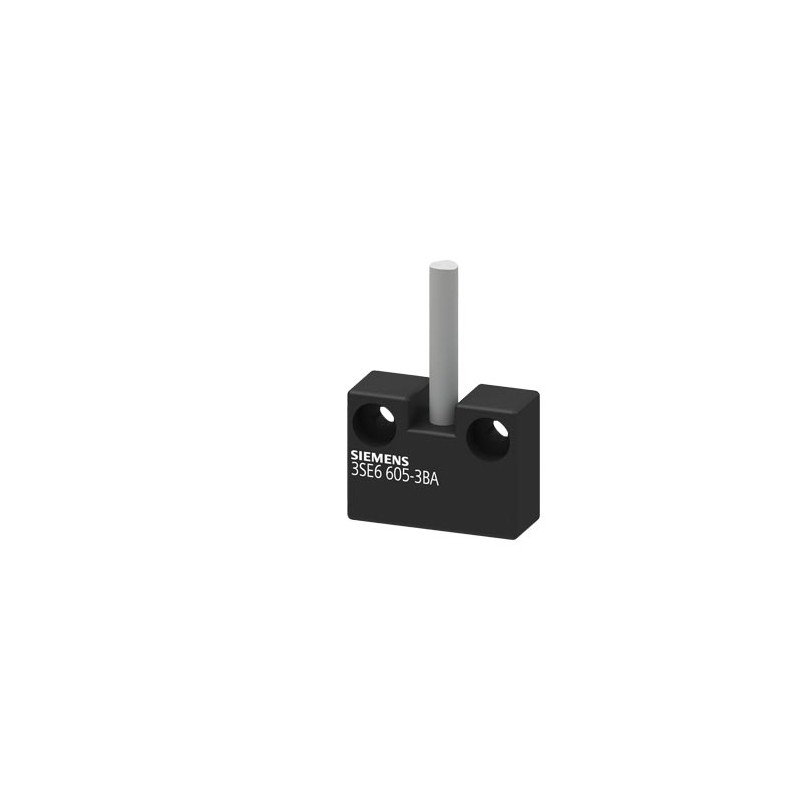

3SE6605-3BA05 SIEMENS Contact block rectangular small 25 x33 mm,, 5 m cable
3SE6605-3BA05
SIEMENS
Contact block rectangular small 25 x33 mm,, 5 m cable
CONTROL AND CONTACTORS > Limit Switches and safety relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SE6605-3BA05 | |||||||||||||||||||||||||||||||||
| Product Description | Contact block rectangular small 25 x33 mm,, 5 m cable | |||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3SE66, 3SE67 non-contact safety switches, magnet | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 60 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,213 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 73,00 x 137,00 x 70,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4011209447073 | |||||||||||||||||||||||||||||||||
| UPC | 887621830403 | |||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||
| Product Group | 3750 | |||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002544 - Magnetic proximity switch
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| With status indication (EF001602) | - | |
| Type of interface for safety communication (EF003956) | - | |
| Number of semiconductor outputs with signalling function (EF003945) | - | |
| Number of contact energized outputs with signalling function (EF003946) | - | |
| Number of protected semiconductor outputs (EF003951) | - | |
| Number of protected contact energized outputs (EF003952) | - | |
| Type of actuation (EF006949) | Magnet | |
| Type of electric connection (EF003961) | Cable | |
| Type of switching output (EF003962) | Dry reed contact | |
| Width sensor (EF007094) | 25.0 | mm |
| Height of sensor (EF007283) | 13.0 | mm |
| Length of sensor (EF007334) | 33.0 | mm |
| Explosion safety category for gas (EF003997) | None | |
| Explosion safety category for dust (EF003998) | None | |
| Construction type housing (EF004008) | Cuboid | |
| Material housing (EF001596) | Plastic | |
| Coating housing (EF001601) | - | |
| Protected switch distance OFF (EF004011) | 14.0 | mm |
| Protected switch distance ON (EF004012) | 4.0 | mm |
| Category according to EN 954-1 (EF006782) | 4 | |
| SIL according to IEC 61508 (EF009889) | 3 | |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e | |
| Ambient temperature (EF002386) | ['-25', '70'] | °C |
| Mechanical mounting condition for sensor (EF004041) | Not flat | |
| Rated supply voltage at AC 50 Hz (EF007076) | ['-', 'DC'] | V |
| Rated supply voltage at AC 60 Hz (EF007077) | ['-', 'DC'] | V |
| Rated supply voltage at DC (EF007078) | ['-', 'DC'] | V |
| Voltage type (EF000187) | DC | |
| Cross-/short circuit identification possible (EF004093) | true | |
| With monitoring function downstream switching devices (EF004052) | - | |
| Suitable for safety functions (EF001597) | true | |
| Degree of protection (IP) (EF005474) | IP67 | |
| Min. output current (EF004045) | - | mA |
| Max. output current at protected output (EF004035) | - | mA |
| Diameter sensor (EF007111) | - | mm |
| Switching distance (EF003647) | - | mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SE6605-3BA05 3SE6605-3BA05 EN_3SE6605-3BA05.pdf | 505 Kbytes |
|
