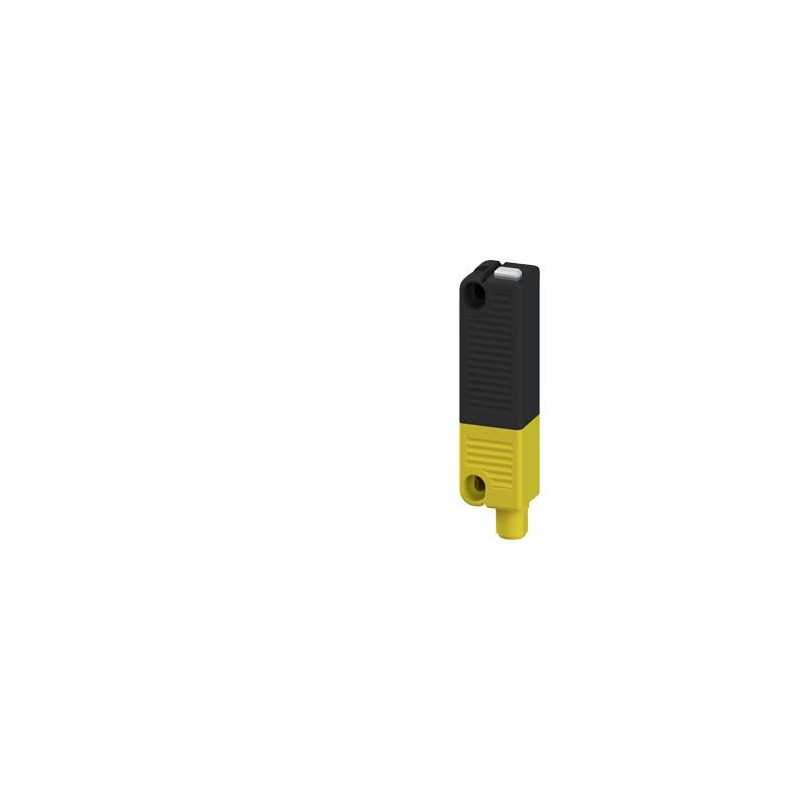

SIEMENS 3SE6315-0BB02 3SE6315-0BB02 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

3SE6315-0BB02 SIEMENS Contact-free safety switches RFID Rectangular 106 mm x 25 mm Individually coded Multip..

Reference: 3SE6315-0BB02

Manufacturer: SIEMENS

Description:

contact-free safety switch RFID rectangular 106 mm x 25 mm individually coded multiple teach-in capability with M12 plug 8-pole. Order actuator 3SE6310-0BC01 separately.

Categories:

  • Sensors > Magnetic proximity switch
  • SIEMENS > CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Go to successor article:3SE6315-0BB02-1AP0

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Technical data

contact-free safety switch RFID rectangular 106 mm x 25 mm individually coded multiple teach-in capability with M12 plug 8-pole. Order actuator 3SE6310-0BC01 separately.
product brand nameSIRIUS
product designationRFID safety switch
design of the productRectangular sensor unit
product type designation3SE63
suitability for use safety-related circuitsYes
General technical data
product function
● positive openingNo
● cross-circuit/short-circuit recognitionYes
product featureindividually coded, learnable multiple times, without magnet latching
type of voltage of the operating voltageDC
protection class IPIP65, IP67, IP69k
shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30g / 11 ms
vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm
Substance Prohibitance (Date)07/01/2006
type of voltageDC
height of the sensor22 mm
length of the sensor106 mm
width of the sensor25 mm
material of the active sensor areaplastic
mechanical installation condition for sensorflush installation possible
operating voltage rated value24 V
operational current rated value600 mA
design of the interface for safety-related communicationconnector M12
transmission frequency rated value125 kHz
Enclosure
material of the enclosureplastic
material of cable sheathPVC
Actuator
design of the actuating elementRFID
Contact
switching frequency1 Hz
operating distance12 mm
assured operating distance OFF16 mm
assured operating distance ON10 mm
design of the switching functionpositive switching
number of switching contacts for signaling function
● safety-related1
Connections/ Terminals
type of electrical connectionM12 plug, 8-pole
wire length maximum30 m
Safety related data
Safety Integrity Level (SIL) according to IEC 615083
performance level (PL) according to EN ISO 13849-1e
category according to EN 954-14
Ambient conditions
ambient temperature during operation-25 ... +70 °C
Supply voltage
supply voltage26.4 ... 20.4 V
Inputs/ Outputs
output current0.5 A
output current at safety-related output maximum0.25 A
Display
evaluation unit requiredyes
Installation/ mounting/ dimensions
fastening methodscrew fixing
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFunctional Safety/Safety of Machinery

Confirmation

UL

EAC

EAC

RCM

Type Examination Certificate

Declaration of Conformityother

EC/EU-Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:10/6/2021
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE6315-0BB02
Product Descriptioncontact-free safety switch RFID rectangular 106 mm x 25 mm individually coded multiple teach-in capability with M12 plug 8-pole. Order actuator 3SE6310-0BC01 separately.
Product familySIRIUS 3SE63 non-contact safety switches, RFID
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works200 Day/Days
Net Weight (kg)0,091 Kg
Packaging Dimension111,00 x 156,00 x 27,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209900714
UPC040892854169
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group3750
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-27-24-02
eClass7.127-27-24-02
eClass827-27-24-02
eClass927-27-24-02
eClass9.127-27-24-02
ETIM5EC002544
ETIM6EC002544
ETIM7EC002544
ETIM8EC002544
IDEA45202
UNSPSC1439-12-22-13
UNSPSC1539-12-22-13

ETIM data

ETIM: EC002544 - Magnetic proximity switch

Value Unit
Construction type housing (EF004008) -
Type of switching output (EF003962) -
Degree of protection (NEMA) (EF011959) -
With status indication (EF001602) -
Number of semiconductor outputs with signalling function (EF003945) -
Number of contact energized outputs with signalling function (EF003946) -
Number of protected semiconductor outputs (EF003951) -
Number of protected contact energized outputs (EF003952) 1
Type of actuation (EF006949) Transponder
Type of interface for safety communication (EF003956) Other
Type of electric connection (EF003961) Connector M12
Width sensor (EF007094) 25.0mm
Height of sensor (EF007283) 22.0mm
Length of sensor (EF007334) 106.0mm
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Material housing (EF001596) Plastic
Coating housing (EF001601) -
Protected switch distance OFF (EF004011) 16.0mm
Protected switch distance ON (EF004012) 10.0mm
Category according to EN 954-1 (EF006782) 4
SIL according to IEC 61508 (EF009889) 3
Performance level according to EN ISO 13849-1 (EF007399) Level e
Max. output current at protected output (EF004035) 250.0mA
Ambient temperature (EF002386) ['-25', '70']°C
Mechanical mounting condition for sensor (EF004041) Concise
Min. output current (EF004045) 500.0mA
Rated supply voltage at AC 50 Hz (EF007076) ['20.4', '26.4']V
Rated supply voltage at AC 60 Hz (EF007077) ['20.4', '26.4']V
Rated supply voltage at DC (EF007078) ['20.4', '26.4']V
Voltage type (EF000187) DC
Cross-/short circuit identification possible (EF004093) true
Switching distance (EF003647) 12.0mm
With monitoring function downstream switching devices (EF004052) -
Suitable for safety functions (EF001597) true
Degree of protection (IP) (EF005474) Other
Diameter sensor (EF007111) -mm
