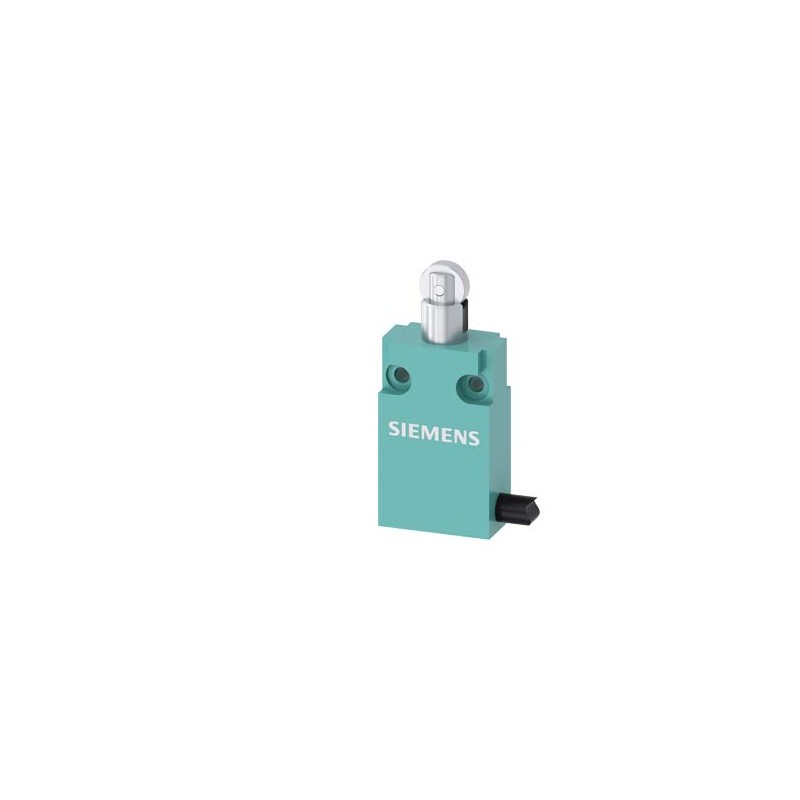

3SE5413-0CD20-1EA5 SIEMENS Position switch in compact design 30 mm wide with connecting cable 5 m Snap-actio..
3SE5413-0CD20-1EA5
SIEMENS
Position switch in compact design 30 mm wide with connecting cable 5 m Snap-action contacts 1 NO+1 NC with roller plunger
Sensors > End switch
CONTROL AND CONTACTORS > Limit Switches and safety relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SE5413-0CD20-1EA5 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Position switch in compact design 30 mm wide with connecting cable 5 m Snap-action contacts 1 NO+1 NC with roller plunger | |||||||||||||||||||||||||||||||||||||||
| Product family | Compact design | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LA------ | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,560 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 160,00 x 165,00 x 45,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209845268 | |||||||||||||||||||||||||||||||||||||||
| UPC | 040892575347 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 3787 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | China | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000030 - End switch
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Width sensor (EF007094) | 30.0 | mm |
| Height of sensor (EF007283) | 16.0 | mm |
| Length of sensor (EF007334) | 70.0 | mm |
| Rated operation current Ie at AC-15, 24 V (EF007084) | - | A |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 6 | A |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 3 | A |
| Rated operation current Ie at DC-13, 24 V (EF007087) | - | A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.55 | A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.27 | A |
| Switching function (EF000189) | Quick-break switch | |
| Switching function latching (EF007447) | false | |
| Output electronic (EF006987) | FALSE | |
| Forced opening (EF006694) | true | |
| Number of safety auxiliary contacts (EF006940) | 1 | |
| Number of contacts as normally closed contact (EF008255) | 1 | |
| Number of contacts as normally open contact (EF008256) | 1 | |
| Number of contacts as change-over contact (EF008257) | 1 | |
| Type of interface (EF006977) | None | |
| Type of interface for safety communication (EF003956) | None | |
| Construction type housing (EF004008) | Cuboid | |
| Material housing (EF001596) | Metal | |
| Coating housing (EF001601) | Lacquered | |
| Type of control element (EF006976) | Roller cam | |
| Alignment of the control element (EF008793) | Roller cam straight | |
| Type of electric connection (EF003961) | Other | |
| With status indication (EF001602) | false | |
| Suitable for safety functions (EF001597) | true | |
| Explosion safety category for gas (EF003997) | None | |
| Explosion safety category for dust (EF003998) | None | |
| Ambient temperature during operating (EF007515) | ['-25', '85'] | °C |
| Degree of protection (IP) (EF005474) | IP67 | |
| Diameter sensor (EF007111) | - | mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 3SE5413-0CD20-1EA5 3SE5413-0CD20-1EA5 EN_3SE5413-0CD20-1EA5.pdf | 160 Kbytes |
 |
