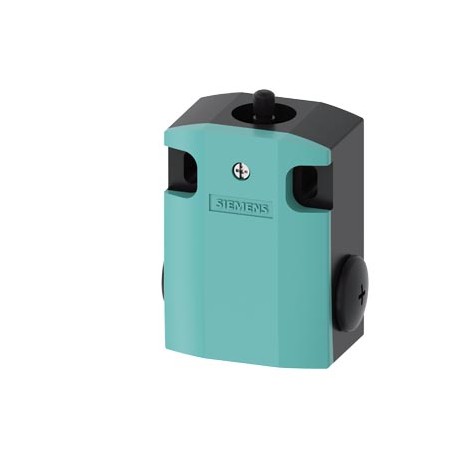

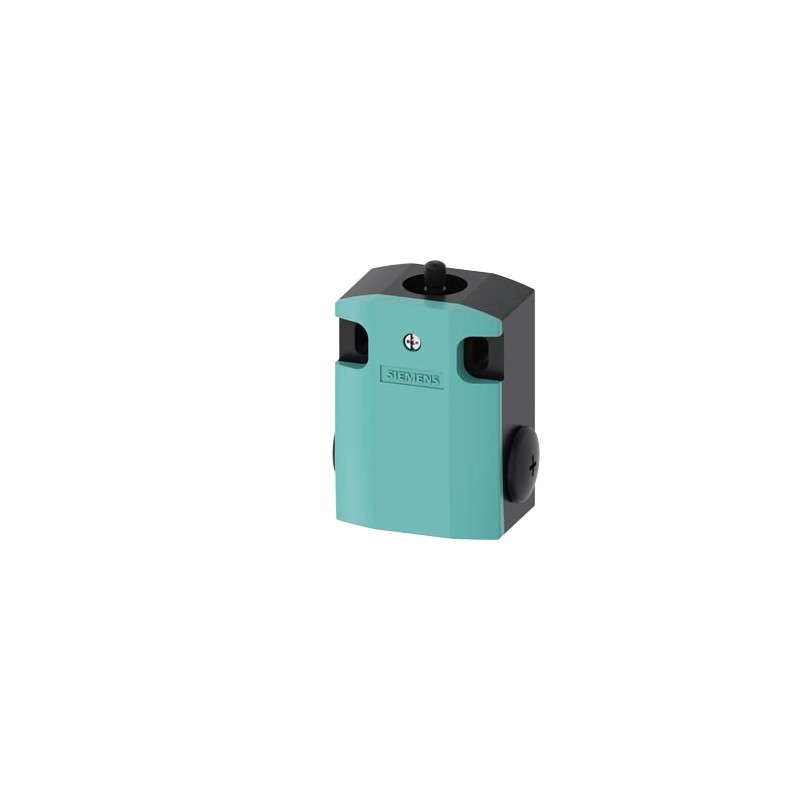

3SE5122-0CA00 SIEMENS Basic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE5122-0CA00 SIEMENS Basic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20..

3SE5122-0CA00

SIEMENS

Basic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20x 1.5) 1 NO/1 NC quick action contacts without actuator head

More details


CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $39.08
Unit price: $39.08
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

Basic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20x 1.5) 1 NO/1 NC quick action contacts without actuator head
product brand nameSIRIUS
product designationMechanical safety switches
product type designation3SE5
manufacturer's article number
● of the supplied switching contacts3SE5000-0CA00
● of the supplied empty enclosure with cover3SE5122-0AA00
suitability for use safety switchYes
General technical data
product function positive openingYes
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP66/IP67
shock resistance
● according to IEC 60068-2-2730g / 11 ms
vibration resistance according to IEC 60068-2-60.35 mm/5g
mechanical service life (switching cycles) typical15 000 000
electrical endurance (switching cycles) at AC-15 at 230 V typical100 000
electrical endurance (switching cycles) with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 typical10 000 000
Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT10266 000
thermal current10 A
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0.05 mm
Substance Prohibitance (Date)07/01/2006
minimum actuating force in directions of actuation20 N
length of the sensor85.7 mm
width of the sensor56 mm
design of the switching contactmechanical
operating frequency rated value50 ... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
operational current at AC-15
● at 24 V rated value6 A
● at 125 V rated value6 A
● at 240 V rated value6 A
● at 400 V rated value4 A
operational current at DC-13
● at 24 V rated value3 A
● at 125 V rated value0.55 A
● at 250 V rated value0.27 A
● at 400 V rated value0.12 A
design of the interface for safety-related communicationwithout
Enclosure
design of the housingblock, wide
material of the enclosuremetal
coating of the enclosurecathodic dip coating
design of the housing according to standardNo
Drive Head
design of the actuating elementOther, without, basic switch
design of the switching functionPositive opening with appropriate positive opening actuator head
circuit principlesnap-action contacts
number of switching contacts safety-related1
Connections/ Terminals
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● at AWG cables solid1x (20 ... 16), 2x (20 ... 18)
● at AWG cables stranded1x (20 ... 16), 2x (20 ... 18)
cable entry type3x (M20 x 1.5)
Communication/ Protocol
design of the interfacewithout
Ambient conditions
ambient temperature
● during operation-25 ... +85 °C
● during storage-40 ... +90 °C
explosion protection category for dustnone
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Certificates/ approvals

Downloads and manuals

General Product Approval

CSA

Confirmation

CCC

UL

EAC

EAC

Functional Safety/Safety of MachineryDeclaration of ConformityTest Certificatesother

Type Examination Certificate

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/23/2022
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE5122-0CA00
Product DescriptionBasic switch for position switch 3SE51 Metal enclosure 56 mm Device connection 3x (M20x 1.5) 1 NO/1 NC quick action contacts without actuator head
Product familyEnclosure width 56 mm
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,378 Kg
Packaging Dimension43,00 x 67,00 x 118,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209693142
UPC754554954653
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Imidazolidine-2-thione (2-imidazoline-2-thiol)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-27-06-01
eClass7.127-27-06-01
eClass827-27-06-01
eClass927-27-06-01
eClass9.127-27-06-01
ETIM5EC000030
ETIM6EC000030
ETIM7EC000030
ETIM8EC000030
IDEA45202
UNSPSC1439-12-22-13
UNSPSC1539-12-22-13

ETIM data

ETIM: EC000030 - End switch

Value Unit
Degree of protection (NEMA) (EF011959) -
Width sensor (EF007094) 56.0mm
Height of sensor (EF007283) 37.8mm
Length of sensor (EF007334) 85.7mm
Rated operation current Ie at AC-15, 24 V (EF007084) 6A
Rated operation current Ie at AC-15, 125 V (EF007082) 6A
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Rated operation current Ie at DC-13, 24 V (EF007087) 3A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.55A
Rated operation current Ie at DC-13, 230 V (EF001386) -A
Switching function (EF000189) Quick-break switch
Switching function latching (EF007447) false
Output electronic (EF006987) FALSE
Forced opening (EF006694) true
Number of safety auxiliary contacts (EF006940) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 1
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Material housing (EF001596) Metal
Coating housing (EF001601) Lacquered
Type of control element (EF006976) None
Alignment of the control element (EF008793) Roller cam straight
Type of electric connection (EF003961) Cable entry metrical
With status indication (EF001602) false
Suitable for safety functions (EF001597) true
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) ['-25', '85']°C
Degree of protection (IP) (EF005474) IP66/IP67
Diameter sensor (EF007111) -mm



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SE5122-0CA00 3SE5122-0CA00 EN_3SE5122-0CA00.pdf 282 Kbytes 3SE5122-0CA00 3SE5122-0CA00 EN_3SE5122-0CA00.pdf
