> SIEMENS>CONTROL AND CONTACTORS>Limit Switches and safety relays>3SE5115-1BA00-1AF2 SIEMENS Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 5004..
Previous Product Next Product

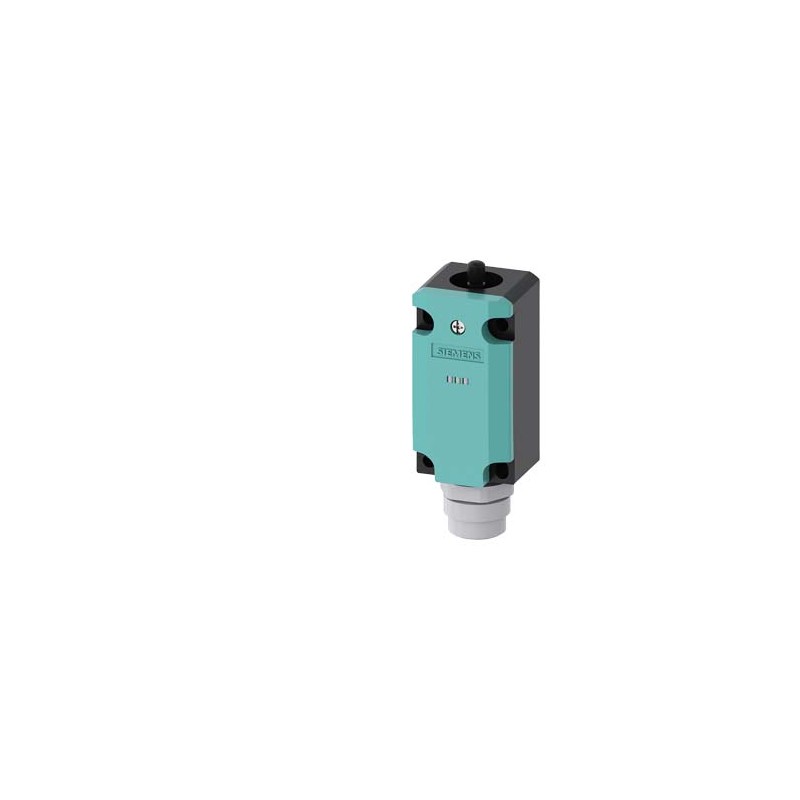

3SE5115-1BA00-1AF2 SIEMENS Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 5004.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE5115-1BA00-1AF2 SIEMENS Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 5004..

3SE5115-1BA00-1AF2

SIEMENS

Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 with connector 6+PE according to EN 43651 with 2 LEDs, yellow/green 24 V DC 1 NO/1 NC slow-action contacts without actuator head Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=not connected, Pin6=ground LED

More details


Sensors > End switch

CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000030 - End switch

Value Unit
Degree of protection (NEMA) (EF011959) -
Width sensor (EF007094) 40.0mm
Height of sensor (EF007283) 37.3mm
Length of sensor (EF007334) 111.7mm
Rated operation current Ie at AC-15, 24 V (EF007084) -A
Rated operation current Ie at AC-15, 125 V (EF007082) -A
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Rated operation current Ie at DC-13, 24 V (EF007087) 3A
Rated operation current Ie at DC-13, 125 V (EF007085) -A
Rated operation current Ie at DC-13, 230 V (EF001386) -A
Switching function (EF000189) Slow-action switch
Switching function latching (EF007447) false
Output electronic (EF006987) FALSE
Forced opening (EF006694) true
Number of safety auxiliary contacts (EF006940) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 1
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Material housing (EF001596) Metal
Coating housing (EF001601) Lacquered
Type of control element (EF006976) None
Alignment of the control element (EF008793) Roller cam straight
Type of electric connection (EF003961) Plug-in connection others
With status indication (EF001602) true
Suitable for safety functions (EF001597) true
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) ['-25', '60']°C
Degree of protection (IP) (EF005474) IP65
Diameter sensor (EF007111) -mm


Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 with connector 6+PE according to EN 43651 with 2 LEDs, yellow/green 24 V DC 1 NO/1 NC slow-action contacts without actuator head Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=not connected, Pin6=ground LED
Product brand nameSIRIUS
Product designationMechanical position switches
Product type designation3SE5
Manufacturer's article number
● of the supplied basic switch3SE5115-1BA00-1AF2
● of the supplied switching contacts3SE5000-0BA00
Suitability for use safety switchYes
General technical data
Product function
● positive openingYes
Insulation voltage
● rated value250 V
Degree of pollutionclass 3
Surge voltage resistance rated value0.8 kV
Protection class IPIP65
Shock resistance
● acc. to IEC 60068-2-2730 g / 11 ms
Vibration resistance
● acc. to IEC 60068-2-60.35 mm/5g
Mechanical service life (switching cycles)
● typical15 000 000
Electrical endurance (switching cycles) with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 typical10 000 000
Electrical operating cycles in one hour with contactor 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT10266 000
Thermal current10 A
Reference code acc. to DIN EN 81346-2B
Reference code acc. to DIN EN 61346-2B
Continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
Continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
Continuous current of the DIAZED fuse link gG6 A
Active principlemechanical
Repeat accuracy0.05 mm
Minimum actuating force in activation direction20 N
Length of the sensor111.7 mm
Width of the sensor40 mm
Design of the switching contactmechanical
Number of NC contacts for auxiliary contacts1
Number of NO contacts for auxiliary contacts1
Operating current at DC-13
● at 24 V rated value3 A
Design of the interface for safety-related communicationwithout
Enclosure
Design of the housingblock, narrow
Material of the enclosuremetal
Coating of the enclosurecathodic immersion coating
Design of the housing acc. to standardYes
Drive Head
Design of the operating mechanismOther, without, basic switch with LED and plug
Design of the switching functionPositive opening with appropriate positive opening actuator head
Circuit principleslow-action contacts
Number of switching contacts safety-related1
Connections/ Terminals
Type of electrical connectionplug, 6-pole + PU, according to EN 43651
Cable entry typeplug, 6-pole + PU, according to EN 43651
Design of plug-in connectionplug, 6-pole + PU: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13/LED green, Pin 4 = 14/LED yellow, Pin 5 = not assigned, Pin 6 = ground LED, PU connected
Communication/ Protocol
Design of the interfacewithout
Ambient conditions
Ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +90 °C
Explosion protection category for dustnone
Supply voltage
Type of voltage of the supply voltage
● of the optional LED indicatorDC
Supply voltage
● of LED24 V
Installation/ mounting/ dimensions
Mounting positionany
Mounting typescrew fixing
Certificates/ approvals
General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of Conformity

CCC

CSA

UL

EAC

Type Examination Certificate

EC/EU-Declaration of Conformity

Declaration of ConformityTest Certificatesother

Miscellaneous

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/05/2020


Product
Article Number (Market Facing Number)3SE5115-1BA00-1AF2
Product DescriptionBasic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 with connector 6+PE according to EN 43651 with 2 LEDs, yellow/green 24 V DC 1 NO/1 NC slow-action contacts without actuator head Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=not connected, Pin6=ground LED
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 28.02.2020
Price data
Price Group41K
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,333 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension50,00 x 58,00 x 109,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209692909
UPC754554954462
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Imidazolidine-2-thione (2-imidazoline-2-thiol)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
Not available
