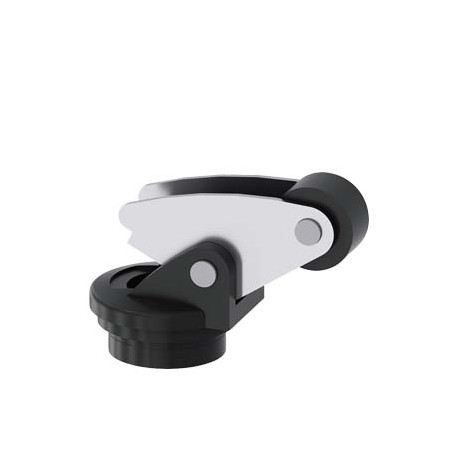

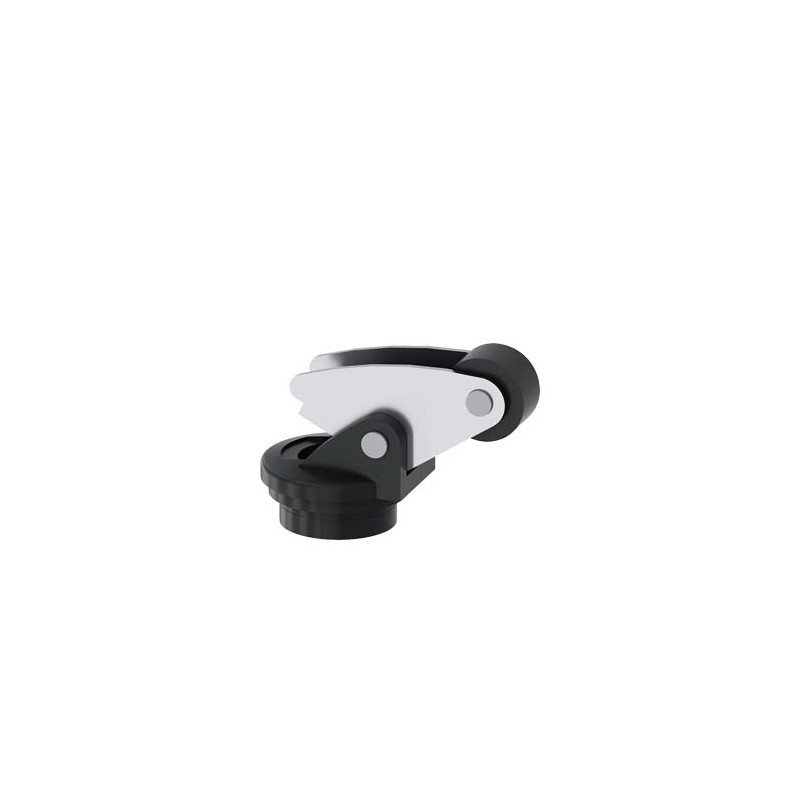

3SE5000-0AF10 SIEMENS Actuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plast.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE5000-0AF10 SIEMENS Actuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plast..

3SE5000-0AF10

SIEMENS

Actuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plastic roller 13 mm

SIRIUS Int. position, accessory 3SE51/52, actuator metal roller elbow lever with 13mm plastic roller.

More details


CONTROL AND CONTACTORS > Limit Switches and safety relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $11.41
Unit price: $11.41
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Actuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plastic roller 13 mm
product brand nameSIRIUS
product designationactuator head for position switch
product type designation3SE5
manufacturer's article number
● of the supplied actuator head for position switches3SE5000-0AF10
General technical data
product function positive openingYes
shock resistance
● according to IEC 60068-2-2730g / 11 ms
vibration resistance
● according to IEC 60068-2-60.35 mm/5g
mechanical service life (switching cycles) typical15 000 000
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2T
active principlemechanical
Substance Prohibitance (Date)07/01/2006
minimum actuating force in directions of actuation10 N
design of the interface for safety-related communicationwithout
Enclosure
coating of the enclosureOther types
Drive Head
design of the actuating elementAngular roller lever, metal lever, plastic roller
standard-compliant actuator headEN 50047
shape of the switch headroller
outer diameter of the switch head13 mm
Communication/ Protocol
design of the interfacewithout
Ambient conditions
ambient temperature
● during operation-25 ... +85 °C
● during storage-40 ... +90 °C
explosion protection category for dustnone
Installation/ mounting/ dimensions
mounting positionany
fastening methodlockable plug-in fixing
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UR

EAC

EAC

EC/EU-Declaration of Conformity

Declaration of ConformityTest Certificatesother

UK Declaration of Conformity

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE5000-0AF10
Product DescriptionActuator head for position switch 3SE51/52 Angular roller lever Metal lever with Plastic roller 13 mm
Product familyEnclosure width 31 mm acc. to EN 50047
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,018 Kg
Packaging Dimension23,00 x 45,00 x 23,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209695986
UPC754554953519
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5318
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-27-06-04
eClass7.127-27-06-04
eClass827-27-06-04
eClass927-27-06-04
eClass9.127-27-06-04
ETIM5EC001483
ETIM6EC001483
ETIM7EC001483
ETIM8EC001483
IDEA45240
UNSPSC1439-12-22-13
UNSPSC1539-12-22-21

ETIM data

ETIM: EC001483 - Drive head for position switches/hinge switches

Value Unit
Type of control element (EF006976) Square roller lever



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SE5000-0AF10 3SE5000-0AF10 EN_3SE5000-0AF10.pdf 225 Kbytes 3SE5000-0AF10 3SE5000-0AF10 EN_3SE5000-0AF10.pdf
