Reference: 3SE5000-0AF03
Manufacturer: SIEMENS
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
LAST VIEWED

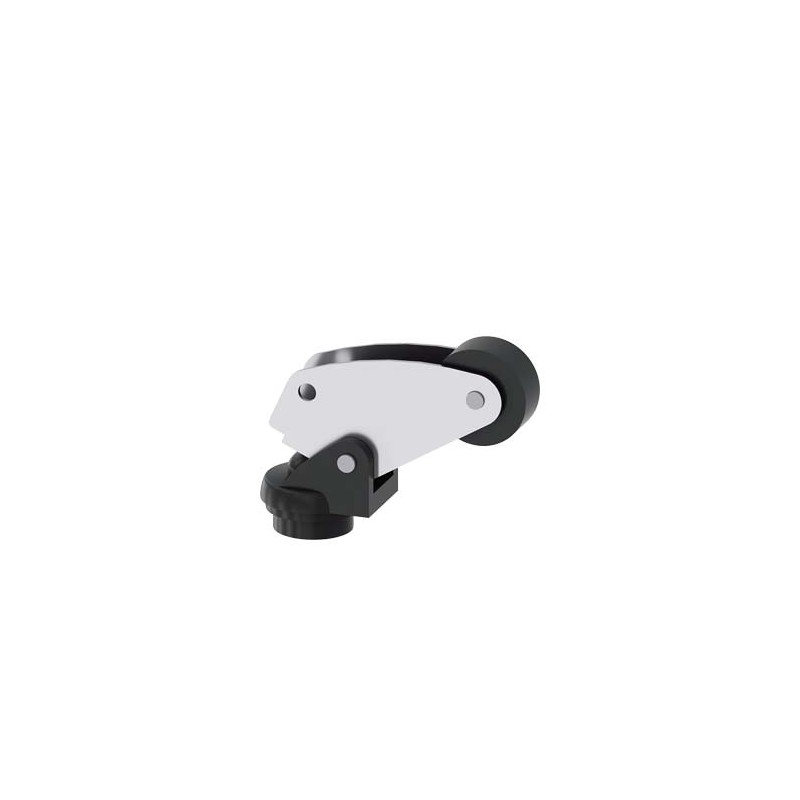

| Actuator head for position switch 3SE51 Angular roller lever Stainless steel lever with Plastic roller 22 mm | ||||||||||||||||||||||||||
| product brand name | SIRIUS | |||||||||||||||||||||||||
| product designation | actuator head for position switch | |||||||||||||||||||||||||
| product type designation | 3SE5 | |||||||||||||||||||||||||
| manufacturer's article number | ||||||||||||||||||||||||||
| ● of the supplied actuator head for position switches | 3SE5000-0AF03 | |||||||||||||||||||||||||
| General technical data | ||||||||||||||||||||||||||
| product function positive opening | Yes | |||||||||||||||||||||||||
| shock resistance | ||||||||||||||||||||||||||
| ● according to IEC 60068-2-27 | 30g / 11 ms | |||||||||||||||||||||||||
| vibration resistance | ||||||||||||||||||||||||||
| ● according to IEC 60068-2-6 | 0.35 mm/5g | |||||||||||||||||||||||||
| mechanical service life (switching cycles) typical | 15 000 000 | |||||||||||||||||||||||||
| material of the enclosure of the switch head | plastic | |||||||||||||||||||||||||
| reference code according to IEC 81346-2 | T | |||||||||||||||||||||||||
| active principle | mechanical | |||||||||||||||||||||||||
| Substance Prohibitance (Date) | 07/01/2006 | |||||||||||||||||||||||||
| minimum actuating force in directions of actuation | 10 N | |||||||||||||||||||||||||
| design of the interface for safety-related communication | without | |||||||||||||||||||||||||
| Enclosure | ||||||||||||||||||||||||||
| coating of the enclosure | Other types | |||||||||||||||||||||||||
| Drive Head | ||||||||||||||||||||||||||
| design of the actuating element | Angular roller lever, high-grade steel lever, plastic roller | |||||||||||||||||||||||||
| standard-compliant actuator head | EN 50041 | |||||||||||||||||||||||||
| shape of the switch head | roller | |||||||||||||||||||||||||
| outer diameter of the switch head | 22 mm | |||||||||||||||||||||||||
| Communication/ Protocol | ||||||||||||||||||||||||||
| design of the interface | without | |||||||||||||||||||||||||
| Ambient conditions | ||||||||||||||||||||||||||
| ambient temperature | ||||||||||||||||||||||||||
| ● during operation | -25 ... +85 °C | |||||||||||||||||||||||||
| ● during storage | -40 ... +90 °C | |||||||||||||||||||||||||
| explosion protection category for dust | none | |||||||||||||||||||||||||
| Installation/ mounting/ dimensions | ||||||||||||||||||||||||||
| mounting position | any | |||||||||||||||||||||||||
| fastening method | lockable plug-in fixing | |||||||||||||||||||||||||
| Certificates/ approvals | ||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||
| ||||||||||||||||||||||||||
| Further information | ||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||
| last modified: | 12/21/2020 | |||||||||||||||||||||||||
| Date 5/14/2022 | Subject to change without notice © Copyright Siemens 2022 | |||||||||||||||||||||||||
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SE5000-0AF03 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Actuator head for position switch 3SE51 Angular roller lever Stainless steel lever with Plastic roller 22 mm | |||||||||||||||||||||||||||||||||||||||
| Product family | Enclosure width 40 mm acc. to EN 50041 | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41K / 41K | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,053 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 35,00 x 75,00 x 20,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209695962 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554953496 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5317 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Value | Unit | |
|---|---|---|
| Type of control element (EF006976) | Square roller lever |
