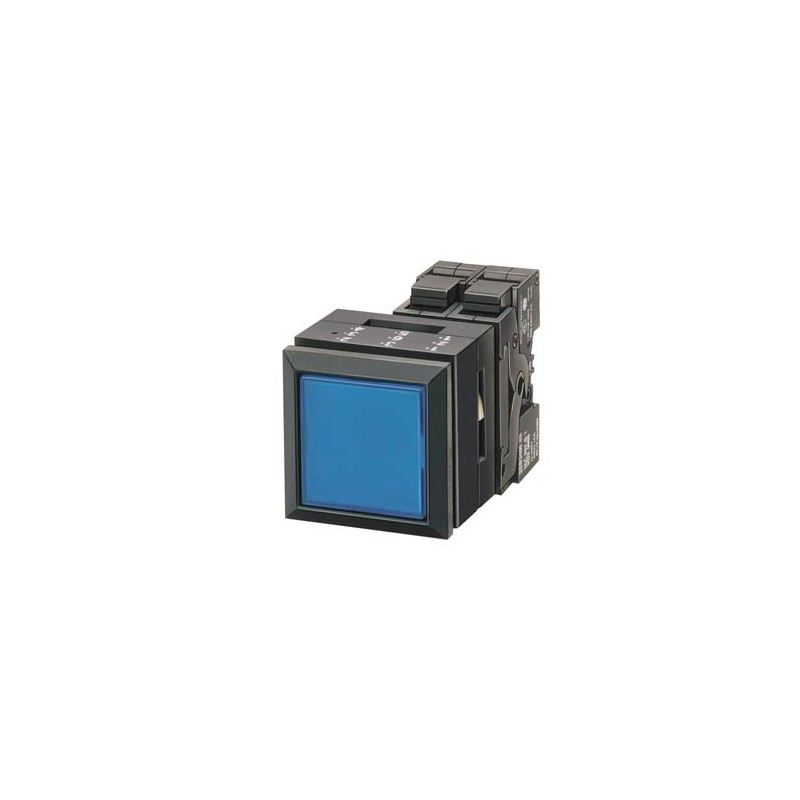

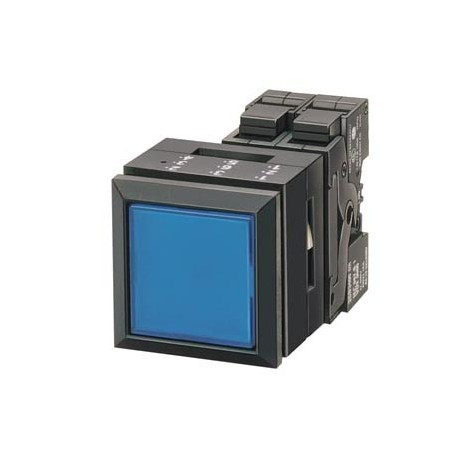

3SB3355-0AA61 SIEMENS 26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: ILLUMINATED PUSHBUTTON MOMENTARY CO..
3SB3355-0AA61
SIEMENS
Illuminated pushbutton, 26x26 mm, square, plastic, white, pushbutton, flat, 1NO + 1NC, lampholder, with integrated LED 230 V AC, SCREW TERMINAL !!! Phased-out product !!! SIRIUS ACT 3SU1 is the successor The preferred successor type is >>3SU1001-0AB60-0AA0 + 3SU1400-1AA10-1FA0 + 3SU1900-0AX10-0AA0 + 3SU1500-0AA10-0AA0 + 3SU1401-1BF60-1AA0<<
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Design of the product | Complete unit, square | |
| Enclosure: | ||
| Shape of the enclosure front | Square | |
| Material of the enclosure | plastic | |
| Number of command points | 1 | |
| Actuator: | ||
| Design of the operating mechanism | Illuminated pushbutton | |
| Manner of function of the actuating element | Momentary contact type | |
| Product extension optional Light source | Yes | |
| Color | ||
| ● of the actuating element | White | |
| Material of the actuating element | plastic | |
| Shape of the actuating element | Flat pushbutton | |
| Type of unlocking device | without | |
| Number of switching positions | 2 | |
| Front ring: | ||
| Product component front ring | Yes | |
| Design of the front ring | Standard | |
| Material of the front ring | plastic | |
| Color of the front ring | black | |
| Holder: | ||
| Material of the holder | Plastic | |
| Contact block/ lampholder: | ||
| Mounting type | integrated LED | |
| Number of lampholders | 1 | |
| Number of switching elements | 1 | |
| General technical data: | ||
| Product function | ||
| ● positive opening | Yes | |
| ● EMERGENCY STOP function | No | |
| Product component | ||
| ● Light source | Yes | |
| Type of voltage | ||
| ● of the operating voltage | AC | |
| Protection class IP | IP66 | |
| Vibration resistance | ||
| ● acc. to IEC 60068-2-6 | 20 ... 200 Hz: 5g | |
| Operating frequency maximum | 1 000 1/h | |
| Mechanical service life (switching cycles) | ||
| ● typical | 3 000 000 | |
| Equipment marking | ||
| ● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | S | |
| ● acc. to DIN EN 61346-2 | S | |
| ● acc. to DIN EN 81346-2 | S | |
| Operating voltage | ||
| ● rated value | 230 ... 230 V | |
| Supply voltage: | ||
| Type of voltage of the supply voltage | ||
| ● of the light source | AC | |
| Supply voltage 1 of the light source at AC | ||
| ● at 50 Hz rated value | 230 V | |
| ● at 60 Hz rated value | 230 V | |
| Relative negative tolerance of the supply voltage | -15 % | |
| Relative positive tolerance of the supply voltage | 10 % | |
| Auxiliary circuit: | ||
| Number of NC contacts | ||
| ● for auxiliary contacts | 1 | |
| Number of NO contacts | ||
| ● for auxiliary contacts | 1 | |
| Number of CO contacts | ||
| ● for auxiliary contacts | 0 | |
| Consumed current for rated value of supply voltage maximum | 17 mA | |
| Operating current at AC-12 | ||
| ● at 24 V rated value | 10 A | |
| ● at 48 V rated value | 10 A | |
| ● at 110 V rated value | 10 A | |
| ● at 230 V rated value | 10 A | |
| ● at 400 V rated value | 10 A | |
| Operating current at AC-15 | ||
| ● at 24 V rated value | 6 A | |
| ● at 48 V rated value | 6 A | |
| ● at 110 V rated value | 6 A | |
| ● at 230 V rated value | 6 A | |
| ● at 400 V rated value | 3 A | |
| Operating current at DC-12 | ||
| ● at 24 V rated value | 10 A | |
| ● at 48 V rated value | 5 A | |
| ● at 110 V rated value | 2.5 A | |
| ● at 230 V rated value | 1 A | |
| Operating current at DC-13 | ||
| ● at 24 V rated value | 3 A | |
| ● at 48 V rated value | 1.5 A | |
| ● at 110 V rated value | 0.7 A | |
| ● at 230 V rated value | 0.3 A | |
| Connections/ Terminals: | ||
| Type of electrical connection | screw-type terminals | |
| Tightening torque of the screws in the bracket | 0.9 ... 1.1 N·m | |
| Ambient conditions: | ||
| Ambient temperature | ||
| ● during operation | -25 ... +70 °C | |
| ● during storage | -40 ... +80 °C | |
| Environmental category during operation acc. to IEC 60721 | 3K6 | |
| Installation/ mounting/ dimensions: | ||
| Mounting type | front mounting | |
| Shape of the installation opening | square | |
| Mounting height | 5 mm | |
| Installation width | 30 mm | |
| Installation depth | 63 mm | |
