3SB3321-0AA31
SIEMENS
1

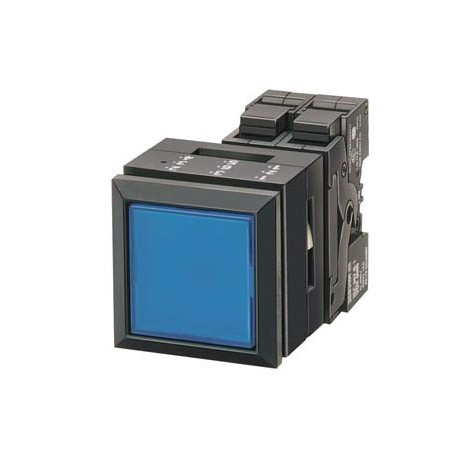

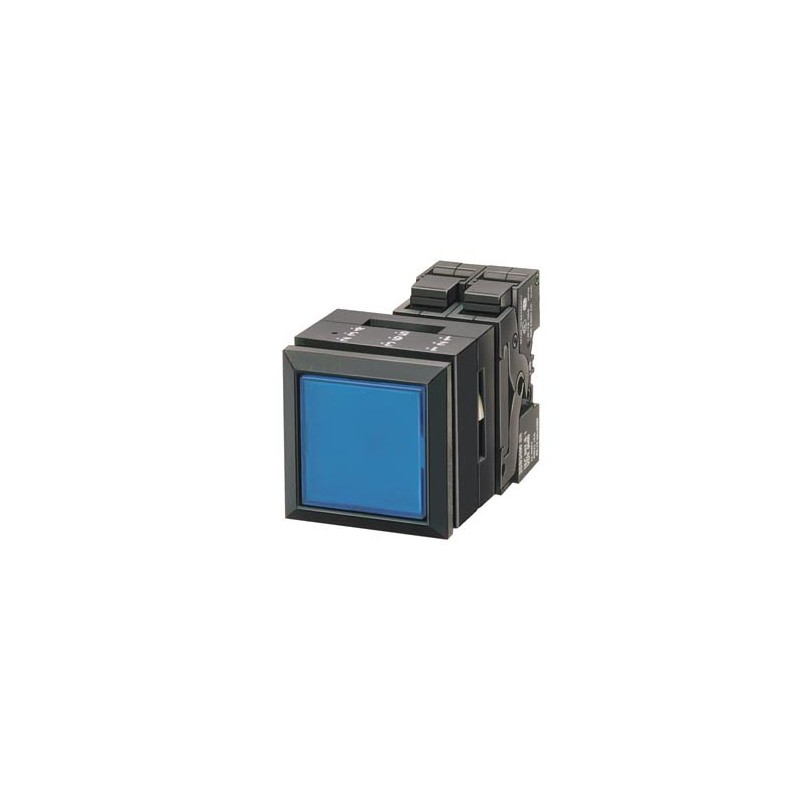

26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: ILLUMINATED PUSHBUTTON WITH FLAT BUTTON ILLUMINATED WITH LAMP HOLDER BA 9S WITH LAMP 24V AC/DC SCREW TERMINAL, 1NO+1NC OPERATIONAL VOLTAGE 24V AC/DC WITH HOLDER YELLOW !!! Phased-out product !!! SIRIUS ACT 3SU1 is suc Preferred successor ty >>3SU1001-0AB30-0AA0 + 3SU1400-1AA10-1FA0 + 3SU1500-0AA10-0AA0 + 3SU1401-1BB30-1AA0 + 3SU1900-0AX10-0AA0<<
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Design of the product | Complete unit, square | |
Enclosure: | ||
Shape of the enclosure front | Square | |
Material of the enclosure | plastic | |
Number of command points | 1 | |
Actuator: | ||
Design of the operating mechanism | Illuminated pushbutton | |
Manner of function of the actuating element | Momentary contact type | |
Product extension optional Light source | Yes | |
Color | ||
● of the actuating element | Yellow | |
Material of the actuating element | plastic | |
Shape of the actuating element | Flat pushbutton | |
Type of unlocking device | without | |
Number of switching positions | 2 | |
Front ring: | ||
Product component front ring | Yes | |
Design of the front ring | Standard | |
Material of the front ring | plastic | |
Color of the front ring | black | |
Holder: | ||
Material of the holder | Plastic | |
Contact block/ lampholder: | ||
Mounting type | BA 9s with lamp | |
Number of lampholders | 1 | |
Number of switching elements | 1 | |
General technical data: | ||
Product function | ||
● positive opening | Yes | |
● EMERGENCY STOP function | No | |
Product component | ||
● Light source | Yes | |
Type of voltage | ||
● of the operating voltage | AC/DC | |
Protection class IP | IP66 | |
Vibration resistance | ||
● acc. to IEC 60068-2-6 | 20 ... 200 Hz: 5g | |
Operating frequency maximum | 1 000 1/h | |
Mechanical service life (switching cycles) | ||
● typical | 3 000 000 | |
Equipment marking | ||
● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | S | |
● acc. to DIN EN 61346-2 | S | |
● acc. to DIN EN 81346-2 | S | |
Operating voltage | ||
● rated value | 24 ... 24 V | |
Supply voltage: | ||
Type of voltage of the supply voltage | ||
● of the light source | AC/DC | |
Supply voltage 1 of the light source at AC | ||
● at 50 Hz rated value | 24 V | |
● at 60 Hz rated value | 24 V | |
Supply voltage 1 of the light source at DC | ||
● rated value | 24 V | |
Relative negative tolerance of the supply voltage | -15 % | |
Relative positive tolerance of the supply voltage | 10 % | |
Auxiliary circuit: | ||
Number of NC contacts | ||
● for auxiliary contacts | 1 | |
Number of NO contacts | ||
● for auxiliary contacts | 1 | |
Number of CO contacts | ||
● for auxiliary contacts | 0 | |
Consumed current for rated value of supply voltage maximum | 80 mA | |
Operating current at AC-12 | ||
● at 24 V rated value | 10 A | |
● at 48 V rated value | 10 A | |
● at 110 V rated value | 10 A | |
● at 230 V rated value | 10 A | |
● at 400 V rated value | 10 A | |
Operating current at AC-15 | ||
● at 24 V rated value | 6 A | |
● at 48 V rated value | 6 A | |
● at 110 V rated value | 6 A | |
● at 230 V rated value | 6 A | |
● at 400 V rated value | 3 A | |
Operating current at DC-12 | ||
● at 24 V rated value | 10 A | |
● at 48 V rated value | 5 A | |
● at 110 V rated value | 2.5 A | |
● at 230 V rated value | 1 A | |
Operating current at DC-13 | ||
● at 24 V rated value | 3 A | |
● at 48 V rated value | 1.5 A | |
● at 110 V rated value | 0.7 A | |
● at 230 V rated value | 0.3 A | |
Connections/ Terminals: | ||
Type of electrical connection | screw-type terminals | |
Tightening torque of the screws in the bracket | 0.9 ... 1.1 N·m | |
Ambient conditions: | ||
Ambient temperature | ||
● during operation | -25 ... +60 °C | |
● during storage | -40 ... +80 °C | |
Environmental category during operation acc. to IEC 60721 | 3K6 | |
Installation/ mounting/ dimensions: | ||
Mounting type | front mounting | |
Shape of the installation opening | square | |
Mounting height | 5 mm | |
Installation width | 30 mm | |
Installation depth | 63 mm |
