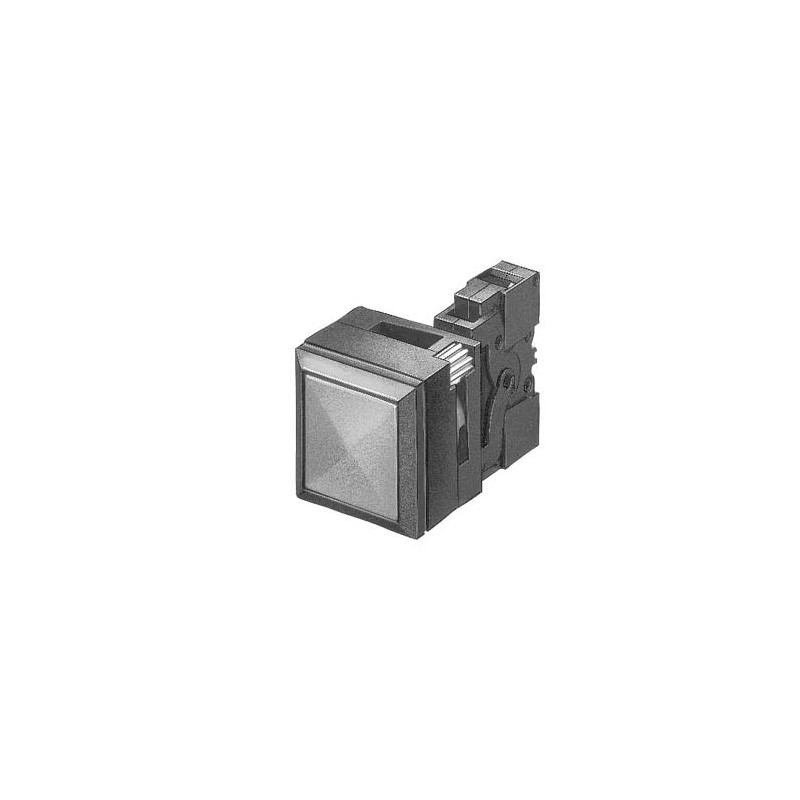

SIEMENS 3SB3302-0AA51 3SB3302-0AA51 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

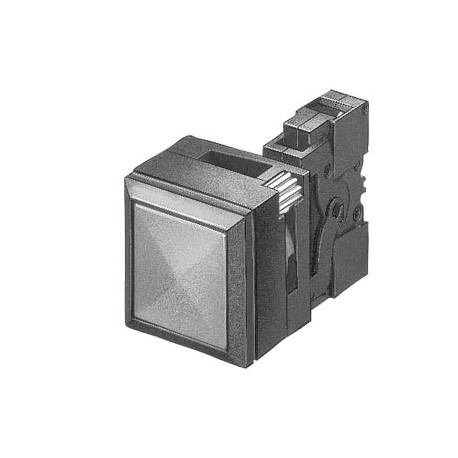

3SB3302-0AA51 SIEMENS 26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: PUSHBUTTON WITH FLAT BUTTON SCREW T..

Reference: 3SB3302-0AA51

Manufacturer: SIEMENS

Description:

26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: PUSHBUTTON WITH FLAT BUTTON SCREW TERMINAL, 1NO WITH HOLDER BLUE !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is >>3SU1000-0AB50-0AA0 + 3SU1900-0AX10-0AA0 + 3SU1400-1AA10-1BA0 + 3SU1500-0AA10-0AA0<<

Categories:

  • SIEMENS > CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Design of the productComplete unit, square
Enclosure:
Shape of the enclosure frontSquare
Material of the enclosureplastic
Number of command points1
Actuator:
Design of the operating mechanismPushbutton
Manner of function of the actuating elementMomentary contact type
Product extension optional Light sourceNo
Color
● of the actuating elementBlue
Material of the actuating elementplastic
Shape of the actuating elementFlat pushbutton
Type of unlocking devicewithout
Number of switching positions2
Front ring:
Product component front ringYes
Design of the front ringStandard
Material of the front ringplastic
Color of the front ringblack
Holder:
Material of the holderPlastic
Contact block/ lampholder:
Number of lampholders0
Number of switching elements1
General technical data:
Product function
● positive openingNo
● EMERGENCY STOP functionNo
Type of voltage
● of the operating voltageAC/DC
Protection class IPIP66
Vibration resistance
● acc. to IEC 60068-2-620 ... 200 Hz: 5g
Operating frequency maximum1 000 1/h
Mechanical service life (switching cycles)
● typical10 000 000
Equipment marking
● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750S
● acc. to DIN EN 61346-2S
● acc. to DIN EN 81346-2S
Operating voltage
● rated value5 ... 400 V
Auxiliary circuit:
Number of NC contacts
● for auxiliary contacts0
Number of NO contacts
● for auxiliary contacts1
Number of CO contacts
● for auxiliary contacts0
Operating current at AC-12
● at 24 V rated value10 A
● at 48 V rated value10 A
● at 110 V rated value10 A
● at 230 V rated value10 A
● at 400 V rated value10 A
Operating current at AC-15
● at 24 V rated value6 A
● at 48 V rated value6 A
● at 110 V rated value6 A
● at 230 V rated value6 A
● at 400 V rated value3 A
Operating current at DC-12
● at 24 V rated value10 A
● at 48 V rated value5 A
● at 110 V rated value2.5 A
● at 230 V rated value1 A
Operating current at DC-13
● at 24 V rated value3 A
● at 48 V rated value1.5 A
● at 110 V rated value0.7 A
● at 230 V rated value0.3 A
Connections/ Terminals:
Type of electrical connectionscrew-type terminals
Tightening torque of the screws in the bracket0.9 ... 1.1 N·m
Ambient conditions:
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213K6
Installation/ mounting/ dimensions:
Mounting typefront mounting
Shape of the installation openingsquare
Mounting height5 mm
Installation width30 mm
Installation depth49 mm
