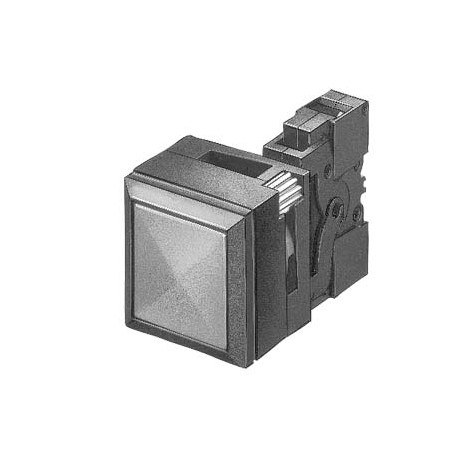

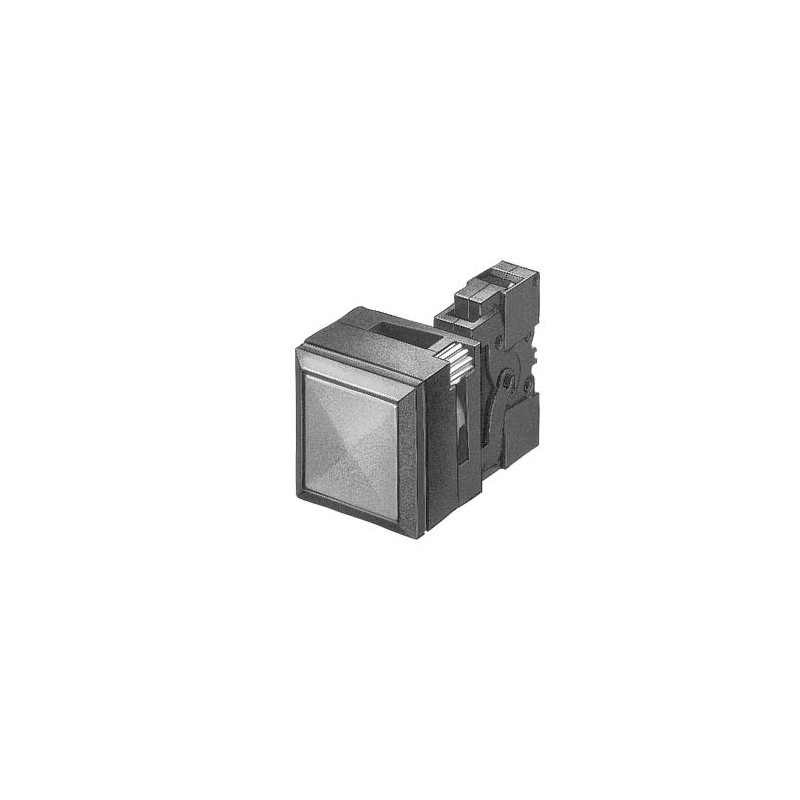

SIEMENS 3SB3301-0AA71 3SB3301-0AA71 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

3SB3301-0AA71 SIEMENS 26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: PUSHBUTTON WITH FLAT BUTTON SCREW T..

Reference: 3SB3301-0AA71

Manufacturer: SIEMENS

Description:

26X26MM PLASTIC SQUARE COMPLETE UNIT COMBINATION: PUSHBUTTON WITH FLAT BUTTON SCREW TERMINAL, 1NO+1NC WITH HOLDER CLEAR !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is >>3SU1000-0AB70-0AA0 + 3SU1400-1AA10-1BA0 +

Categories:

  • SIEMENS > CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Design of the product Complete unit, square
Enclosure:
Shape of the enclosure front Square
Material of the enclosure plastic
Number of command points 1
Actuator:
Design of the operating mechanism Pushbutton
Manner of function of the actuating element Momentary contact type
Product extension optional Light source No
Color
● of the actuating element Clear
Material of the actuating element plastic
Shape of the actuating element Flat pushbutton
Type of unlocking device without
Number of switching positions 2
Front ring:
Product component front ring Yes
Design of the front ring Standard
Material of the front ring plastic
Color of the front ring black
Holder:
Material of the holder Plastic
Contact block/ lampholder:
Number of lampholders 0
Number of switching elements 1
General technical data:
Product function
● positive opening Yes
● EMERGENCY STOP function No
Type of voltage
● of the operating voltage AC/DC
Protection class IP IP66
Vibration resistance
● acc. to IEC 60068-2-6 20 ... 200 Hz: 5g
Operating frequency maximum 1 000 1/h
Mechanical service life (switching cycles)
● typical 10 000 000
Equipment marking
● acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 S
● acc. to DIN EN 61346-2 S
● acc. to DIN EN 81346-2 S
Operating voltage
● rated value 5 ... 400 V
Auxiliary circuit:
Number of NC contacts
● for auxiliary contacts 1
Number of NO contacts
● for auxiliary contacts 1
Number of CO contacts
● for auxiliary contacts 0
Operating current at AC-12
● at 24 V rated value 10 A
● at 48 V rated value 10 A
● at 110 V rated value 10 A
● at 230 V rated value 10 A
● at 400 V rated value 10 A
Operating current at AC-15
● at 24 V rated value 6 A
● at 48 V rated value 6 A
● at 110 V rated value 6 A
● at 230 V rated value 6 A
● at 400 V rated value 3 A
Operating current at DC-12
● at 24 V rated value 10 A
● at 48 V rated value 5 A
● at 110 V rated value 2.5 A
● at 230 V rated value 1 A
Operating current at DC-13
● at 24 V rated value 3 A
● at 48 V rated value 1.5 A
● at 110 V rated value 0.7 A
● at 230 V rated value 0.3 A
Connections/ Terminals:
Type of electrical connection screw-type terminals
Tightening torque of the screws in the bracket 0.9 ... 1.1 N·m
Ambient conditions:
Ambient temperature
● during operation -25 ... +70 °C
● during storage -40 ... +80 °C
Environmental category during operation acc. to IEC 60721 3K6
Installation/ mounting/ dimensions:
Mounting type front mounting
Shape of the installation opening square
Mounting height 5 mm
Installation width 30 mm
Installation depth 63 mm
