SIEMENSCONTROL AND CONTACTORSCOMMANDING AND SIGNALING DEVICES3SB2202-0LD01 SIEMENS Pushbutton, 16 mm, round, plastic, yellow, pushbutton, raised, 1 NO

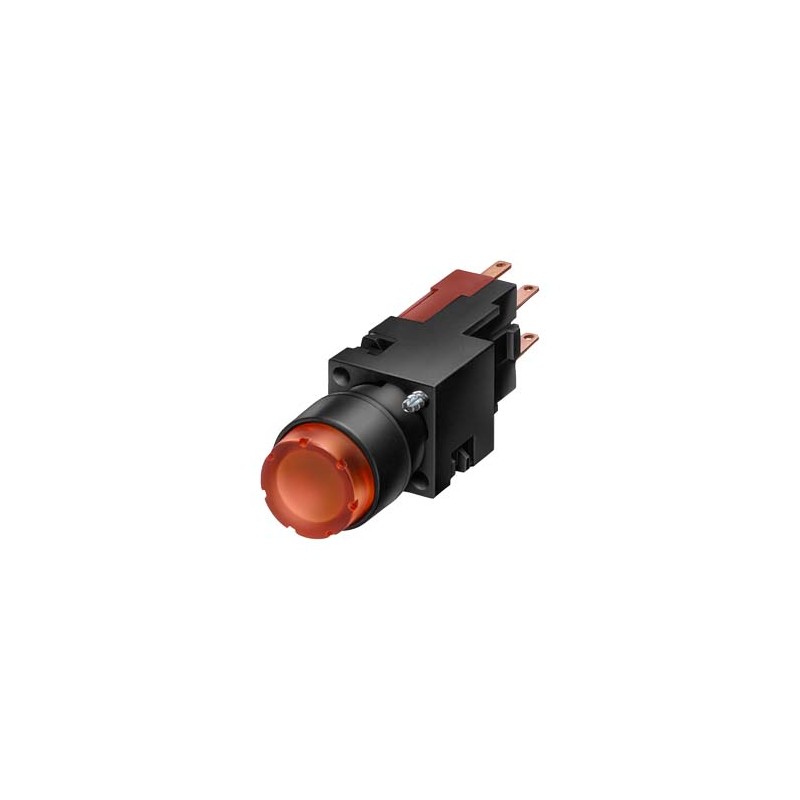

SIEMENS 3SB2202-0LD01 3SB2202-0LD01 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

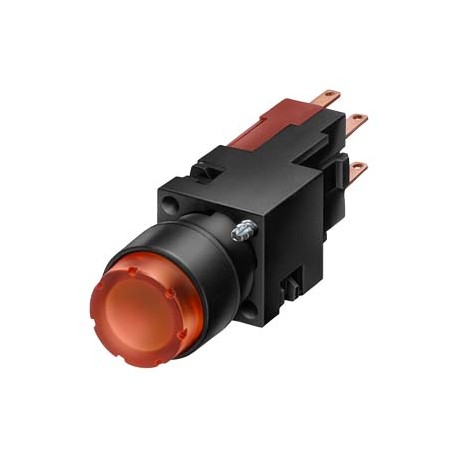

3SB2202-0LD01 SIEMENS Pushbutton, 16 mm, round, plastic, yellow, pushbutton, raised, 1 NO

Reference: 3SB2202-0LD01

Manufacturer: SIEMENS

Description:

Pushbutton, 16 mm, round, plastic, yellow, pushbutton, raised, 1 NO

Categories:

  • Low-voltage industrial components > Push button, complete
  • SIEMENS > CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 20,87 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Additional data

Product
Article Number (Market Facing Number)3SB2202-0LD01
Product DescriptionPushbutton, 16 mm, round, plastic, yellow, pushbutton, raised, 1 NO
Product familyComplete units
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,020 Kg
Packaging Dimension47,00 x 79,00 x 53,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209210684
UPC754554864228
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5834
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-28
eClass7.127-37-12-28
eClass827-37-12-28
eClass927-37-12-28
eClass9.127-37-12-28
ETIM5EC001028
ETIM6EC001028
ETIM7EC001028
ETIM8EC001028
IDEA45210
UNSPSC1439-12-22-16
UNSPSC1539-12-22-16

ETIM data

ETIM: EC001028 - Push button, complete

Value Unit
Construction type lens (EF006253) -
Degree of protection (NEMA) (EF011959) -
Number of command positions (EF001372) 1
Type of button (EF001546) High
Colour button (EF000190) Yellow
Hole diameter (EF000079) 16.0mm
Width opening (EF004565) 19.0mm
Height opening (EF004778) 12.0mm
Suitable for illumination (EF001142) false
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Flat plug-in connection
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP) (EF005474) IP65
Supply voltage lamp (EF006522) -V


DATASHEET - PDF

Title
Size
Type
3SB2202-0LD01 3SB2202-0LD01 EN_3SB2202-0LD01.pdf
197 Kbytes
PDF CATALOGUE SIEMENS EN
120 Mbytes
PDF CATALOGUE SIEMENS EN
104 Mbytes
