> SIEMENS>CONTROL AND CONTACTORS>Commanding and signaling devices>3SB2001-6CH06 SIEMENS Indicator light, 16 mm, round, plastic, clear, smooth, for inscription with insert cap..
Previous Product Next Product

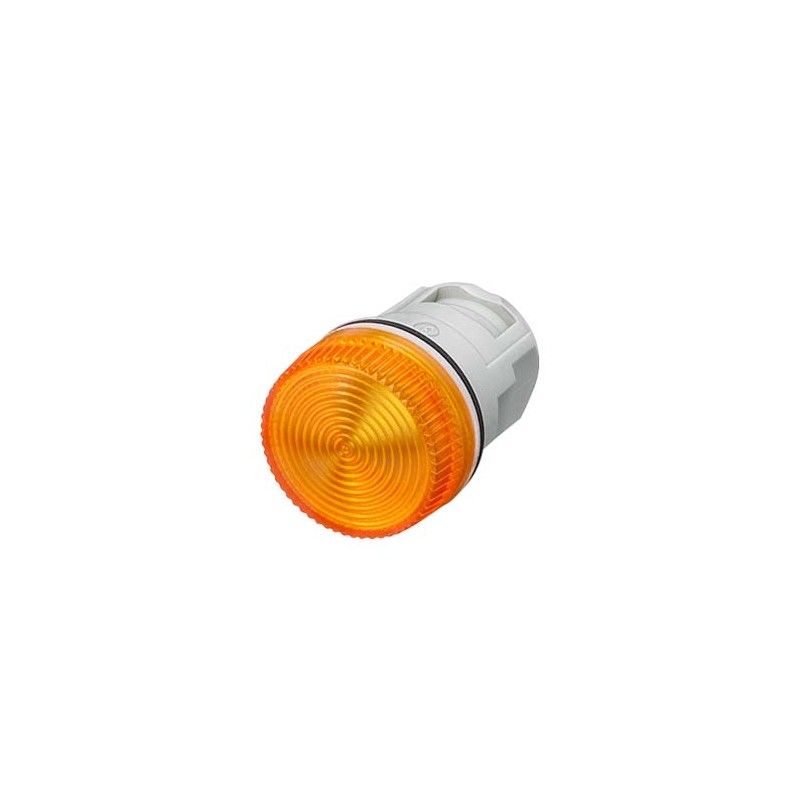

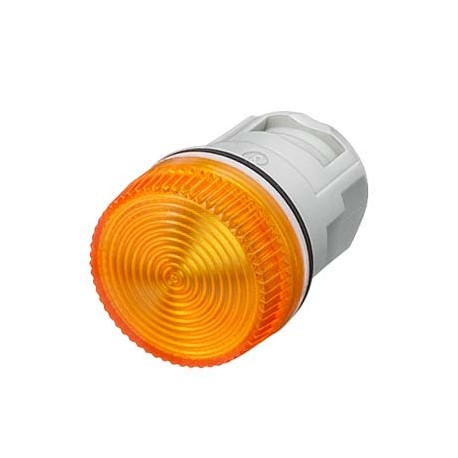

3SB2001-6CH06 SIEMENS Indicator light, 16 mm, round, plastic, clear, smooth, for inscription with insert cap.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SB2001-6CH06 SIEMENS Indicator light, 16 mm, round, plastic, clear, smooth, for inscription with insert cap..

3SB2001-6CH06

SIEMENS

Indicator light, 16 mm, round, plastic, clear, smooth, for inscription with insert caps

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $5.66
Unit price: $5.66

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Indicator light, 16 mm, round, plastic, clear, smooth, for inscription with insert caps
product brand nameSIRIUS
product designationIndicator lights
design of the productSingle device round
product type designation3SB2
Enclosure
number of command points0
Actuator
design of the actuating elementindicator light
product extension optional light sourceNo
color of the actuating elementclear
material of the actuating elementplastic
shape of the actuating elementSmooth lens
outer diameter of the actuating element19 mm
type of unlocking devicewithout
number of switching positions0
Front ring
product component front ringNo
Holder
material of the holderPlastic
General technical data
product function
● EMERGENCY OFF functionNo
● EMERGENCY STOP functionNo
protection class IPIP65
vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5g
reference code according to IEC 81346-2P
Substance Prohibitance (Date)07/01/2006
Connections/ Terminals
tightening torque of the screws in the bracket0.4 N·m
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213K6
Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height9 mm
installation width19 mm
installation depth50 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

CSA

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

Test Certificatesother

Special Test Certificate

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/8/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SB2001-6CH06
Product DescriptionIndicator light, 16 mm, round, plastic, clear, smooth, for inscription with insert caps
Product familyActuating and signaling elements
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,020 Kg
Packaging Dimension15,00 x 33,00 x 15,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209028029
UPC754554865720
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5834
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-11
eClass7.127-37-12-11
eClass827-37-12-11
eClass927-37-12-11
eClass9.127-37-12-11
ETIM5EC000223
ETIM6EC000223
ETIM7EC000223
ETIM8EC000223
IDEA44772
UNSPSC1439-12-15-34
UNSPSC1539-12-15-44

ETIM data

ETIM: EC000223 - Front element for indicator light

Value Unit
Suitable for number of built-in signal lights (EF006669) 1
Colour lens (EF000207) Clear
Construction type lens (EF006253) Round
Hole diameter (EF000079) 16.0mm
Width opening (EF004565) 19.0mm
Height opening (EF004778) 9.0mm
With front ring (EF006014) false
Material front ring (EF005972) -
Colour front ring (EF002429) -
Type of lens (EF008343) Flat
Degree of protection (IP), front side (EF003118) IP65


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3SB2001-6CH06 3SB2001-6CH06 EN_3SB2001-6CH06.pdf 189 Kbytes 3SB2001-6CH06 3SB2001-6CH06 EN_3SB2001-6CH06.pdf
