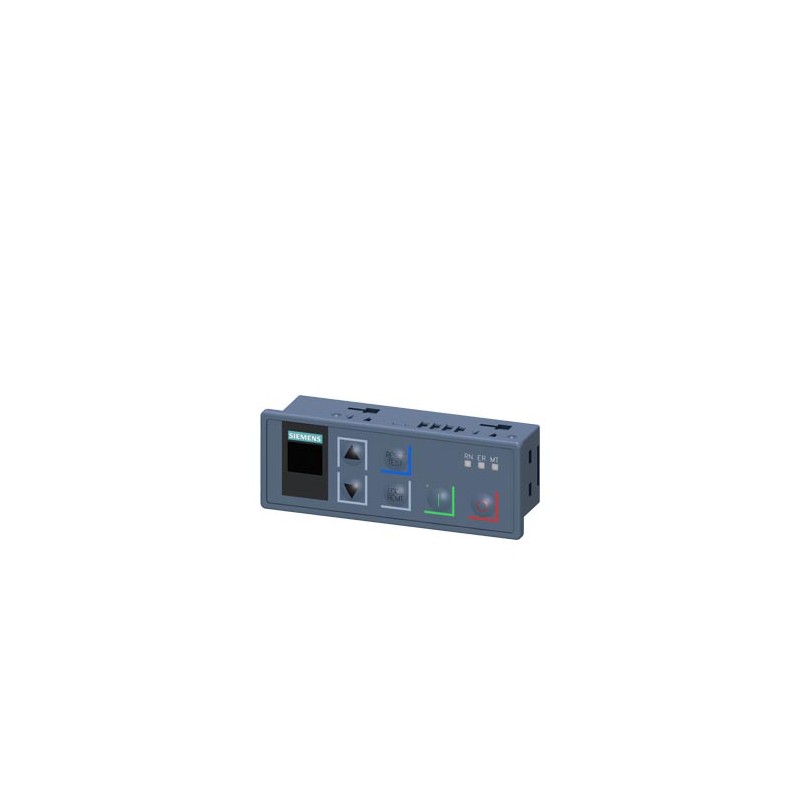

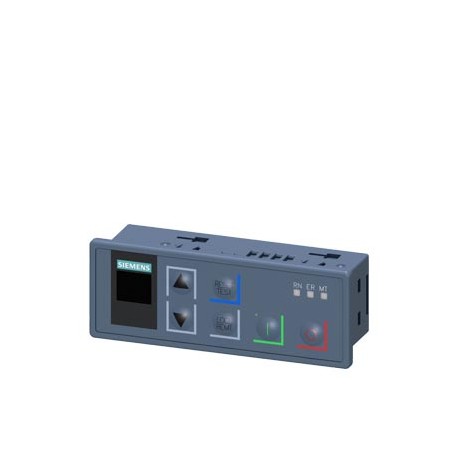

3RW5980-0HS00 SIEMENS HMI module Standard View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RW5980-0HS00 SIEMENS HMI module Standard

3RW5980-0HS00

SIEMENS

HMI module Standard

SIRIUS soft starter Standard HMI module.

More details


CONTROL AND CONTACTORS > Soft starters for high-feature applications

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $155.09
Unit price: $155.09
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

HMI module Standard
product brand nameSIRIUS
product categoryHMI modules
product designationHMI module
design of the productStandard
manufacturer's article number
● of soft starter3RW50
● of soft starter3RW51
● of soft starter3RW52
Substance Prohibitance (Date)02/15/2018
Installation/ mounting/ dimensions
mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
fastening methodsnap-on mounting
height36 mm
width96 mm
depth32 mm
Ambient conditions
ambient temperature
● during operation-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
● during storage and transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4
● during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. height of fall 0.8 m)
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

CCC

Confirmation

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Marine / Shippingother

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Characteristic: Installation altitude
Simulation Tool for Soft Starters (STS)
last modified:12/15/2020
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RW5980-0HS00
Product DescriptionHMI module Standard
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42S / 42S
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works50 Day/Days
Net Weight (kg)0,100 Kg
Packaging Dimension45,00 x 105,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621044095
UPC804766702273
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group4983
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 15.02.2018
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) Other



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RW5980-0HS00 3RW5980-0HS00 EN_3RW5980-0HS00.pdf 507 Kbytes 3RW5980-0HS00 3RW5980-0HS00 EN_3RW5980-0HS00.pdf
