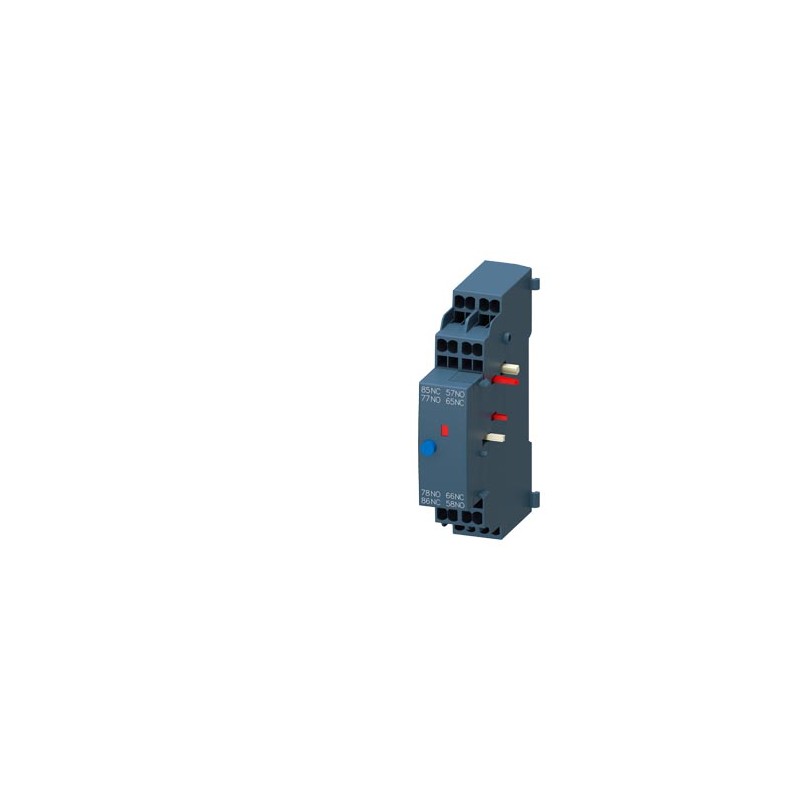

3RV2921-2M SIEMENS signaling switch for circuit breaker 3RV2 with spring-type terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV2921-2M SIEMENS signaling switch for circuit breaker 3RV2 with spring-type terminal

3RV2921-2M

SIEMENS

signaling switch for circuit breaker 3RV2 with spring-type terminal

More details


Low-voltage industrial components > Trip indicator

CONTROL AND CONTACTORS > Motor protection switches

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $34.34
Unit price: $34.34
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

signaling switch for circuit breaker 3RV2 with spring-type terminal
General technical data
product brand nameSIRIUS
product designationsignaling switch
design of the productseparate tripped signal and short circuit alarm, 1 NO + 1 NC each
size of the circuit-breakerS00, S0, S2, S3
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +60
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
number of CO contacts of auxiliary contacts instantaneous contact0
operational current
● of auxiliary contacts
— at AC-12
— at 24 VA10
— at 230 VA10
— at 400 VA10
— at 690 VA10
— maximumA10
— at AC-15
— at 24 VA6
— at 230 VA4
— at 400 VA3
— at DC-13
— at 24 VA2
— at 110 VA0.5
— at 220 VA0.25
— at 250 VA0.25
● at AC-15 at 690 V rated valueA1
Installation/ mounting/ dimensions
fastening methodplug-in fixing
widthmm18
heightmm90
depthmm68
Connections/ Terminals
type of electrical connection for auxiliary and control circuitspring-loaded terminals
type of connectable conductor cross-sections
● for auxiliary contacts
— solid2x (0.5 ... 1.5 mm²)
— finely stranded
— with core end processing2x (0.5 ... 1.5 mm²)
● at AWG cables for auxiliary contacts2x (20 ... 14)
Certificates/ approvals
certificate of suitabilityCE / UL / CSA / CCC

Downloads and manuals

General Product Approval

CSA

CCC

Confirmation

UL

KC

EAC

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

Marine / Shippingother

DNV / Det Norske Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

otherRailway

Household and similar appliances

Vibration and Shock

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:6/26/2021
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2921-2M
Product Descriptionsignaling switch for circuit breaker 3RV2 with spring-type terminal
Product familyMountable accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorLBP-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,100 Kg
Packaging Dimension42,00 x 87,00 x 103,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209737167
UPC662643925227
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-20
eClass7.127-37-04-20
eClass827-37-04-20
eClass927-37-04-20
eClass9.127-37-04-20
ETIM5EC001025
ETIM6EC001025
ETIM7EC001025
ETIM8EC001025
UNSPSC1439-12-15-21
UNSPSC1539-12-15-22

ETIM data

ETIM: EC001025 - Trip indicator

Value Unit
Function (EF000030) Other
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Spring clamp connection
