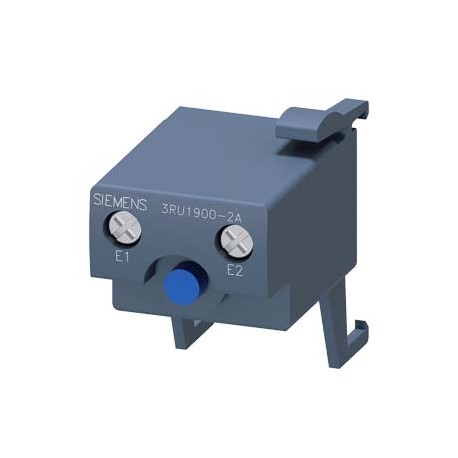

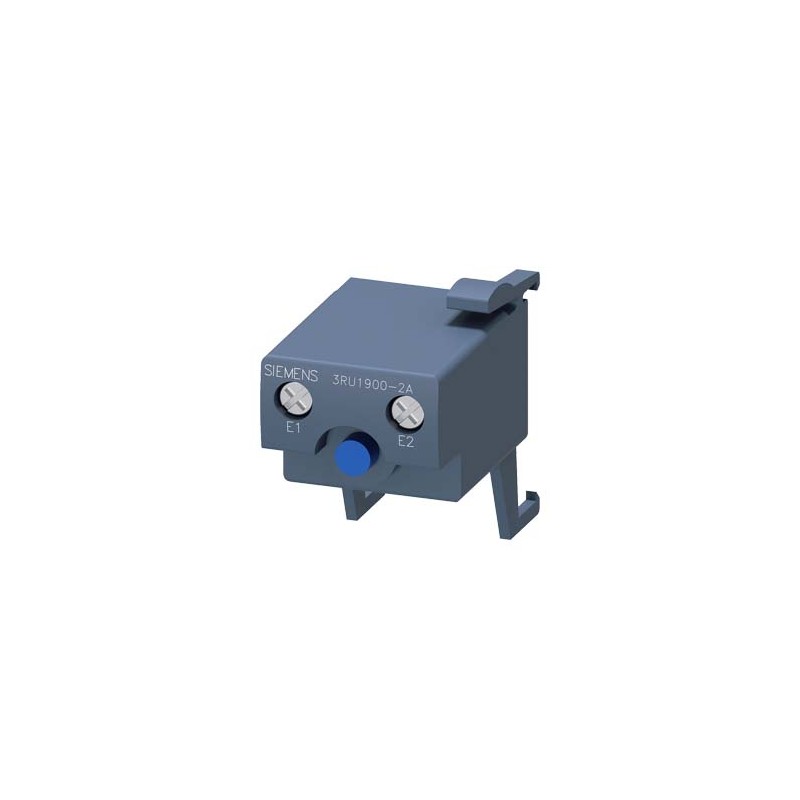

3RU1900-2AB71 SIEMENS Electronic remote reset 24...30 V AC/DC for 3RU Size S00...S3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RU1900-2AB71 SIEMENS Electronic remote reset 24...30 V AC/DC for 3RU Size S00...S3

3RU1900-2AB71

SIEMENS

Electronic remote reset 24...30 V AC/DC for 3RU Size S00...S3

More details


Low-voltage industrial components > Accessories/spare parts for overload protection device

CONTROL AND CONTACTORS > Thermal relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $82.43
Unit price: $82.43
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Electronic remote reset 24...30 V AC/DC for 3RU Size S00...S3
General technical data
product brand nameSIRIUS
product designationElectrical RESET
design of the productElectrical Remote RESET
size of overload relayS00, S0, S2, S3
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +70
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
control supply voltage frequency
● 1 rated valueHz50
● 2 rated valueHz60
control supply voltage 1
● at DC
— initial rated valueV24
— final rated valueV30
● at AC
— at 50 Hz initial rated valueV24
— at 50 Hz final rated valueV30
— at 60 Hz final rated valueV30
— at 60 Hz initial rated valueV24
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections for auxiliary contacts
● solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
● finely stranded
— with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

CSA

Confirmation

UL

EAC

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Test CertificatesMarine / Shippingother

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

RINA / Registro Italiano Navale

DNV-GL

Confirmation

Railway

Special Test Certificate

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RU1900-2AB71
Product DescriptionElectronic remote reset 24...30 V AC/DC for 3RU Size S00...S3
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41F / 41F
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,055 Kg
Packaging Dimension52,00 x 75,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209297630
UPC754554412320
Commodity Code85364110
LKZ_FDB/ CatalogIDCC-IC10
Product Group3739
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-02
eClass7.127-37-92-02
eClass827-37-92-02
eClass927-37-92-02
eClass9.127-37-92-02
ETIM5EC002027
ETIM6EC002027
ETIM7EC002027
ETIM8EC002027
UNSPSC1439-12-15-21
UNSPSC1539-12-23-30

ETIM data

ETIM: EC002027 - Accessories/spare parts for overload protection device

Value Unit
Type of accessory/spare part (EF000215) Other
