> SIEMENS>CONTROL AND CONTACTORS>Contactors for switching motors>3RT2927-2PR01 SIEMENS pneumatically time-delayed auxiliary switch, off delayed 1-30 s, 1 NO + 1 NC, for moun..
ANUNCIAR
Previous Product Next Product

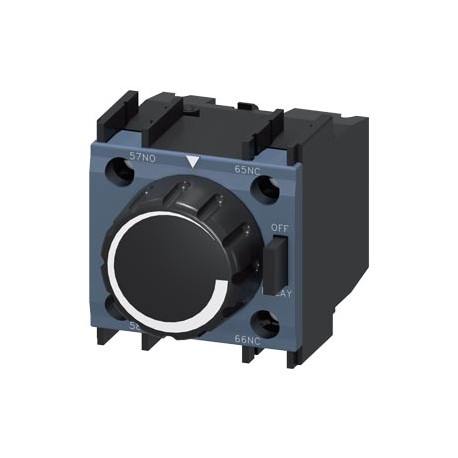

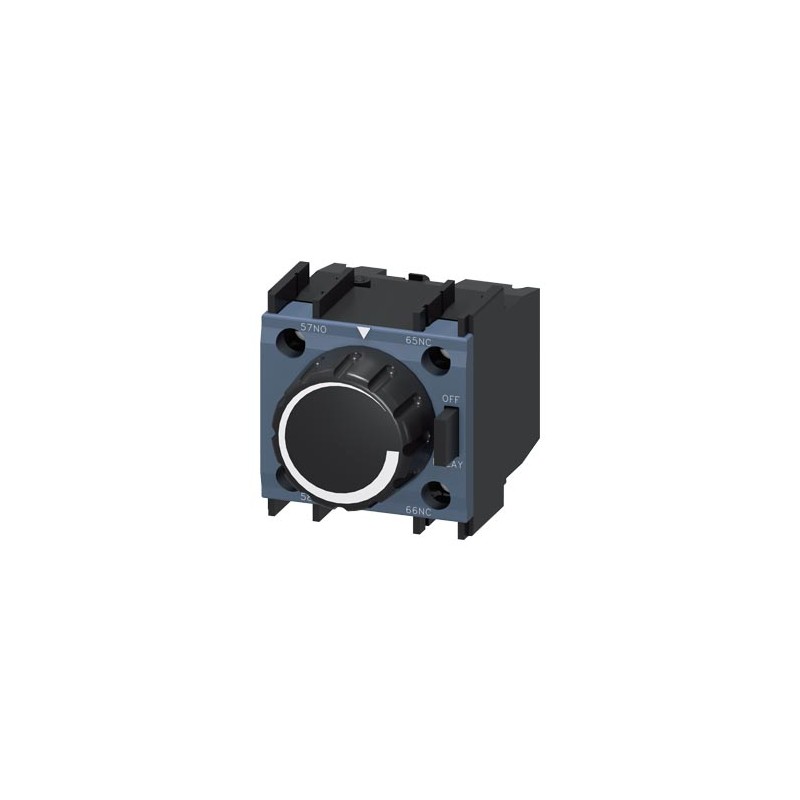

3RT2927-2PR01 SIEMENS pneumatically time-delayed auxiliary switch, off delayed 1-30 s, 1 NO + 1 NC, for moun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RT2927-2PR01 SIEMENS pneumatically time-delayed auxiliary switch, off delayed 1-30 s, 1 NO + 1 NC, for moun..

3RT2927-2PR01

SIEMENS

pneumatically time-delayed auxiliary switch, off delayed 1-30 s, 1 NO + 1 NC, for mounting to contactors 3RT202

variant with pneumatic auxiliary contact block timer, deexcitation retarded 1-30 s, 1 NO + 1 NC, for mounting on 3RT202 contactors

More details


CONTROL AND CONTACTORS > Contactors for switching motors

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $145.35
Unit price: $145.35
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)3RT2927-2PR01
Product Descriptionpneumatically time-delayed auxiliary switch, off delayed 1-30 s, 1 NO + 1 NC, for mounting to contactors 3RT202
Product familyDelayed
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)10 Day/Days
Net Weight (kg)0,090 Kg
Packaging Dimension55,00 x 75,00 x 45,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621078458
UPCNot available
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5344
Group CodeR711
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass120027-37-13-08
eClass140027-37-13-08
eClass60027-37-13-08
eClass71027-37-13-08
eClass80027-37-13-08
eClass90027-37-13-08
eClass91027-37-13-08
ETIM700EC002060
ETIM800EC002060
ETIM900EC002060
IDEA4005363
UNSPSC150039-12-23-29

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
