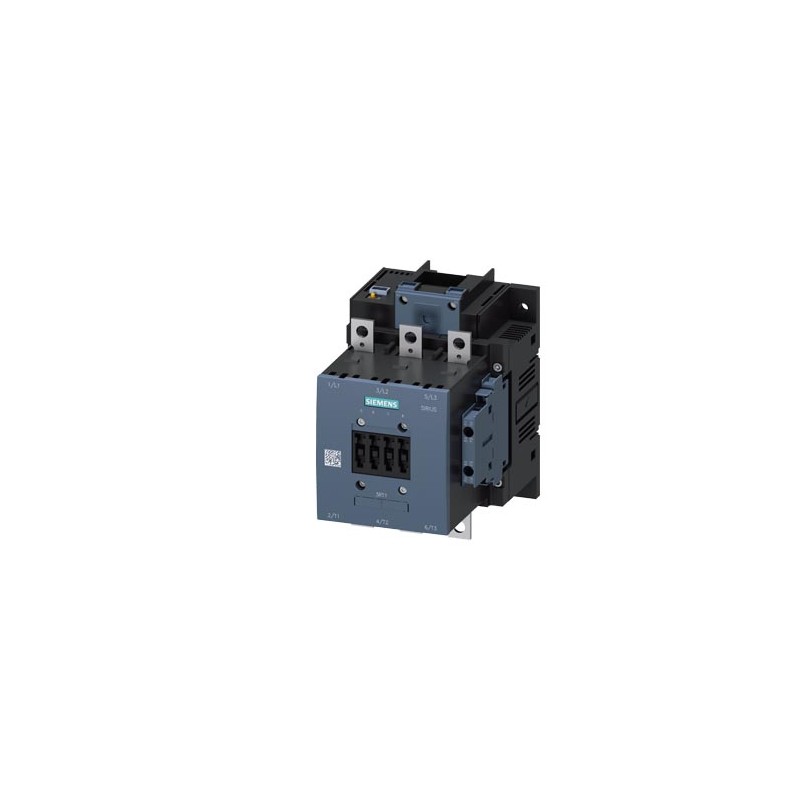

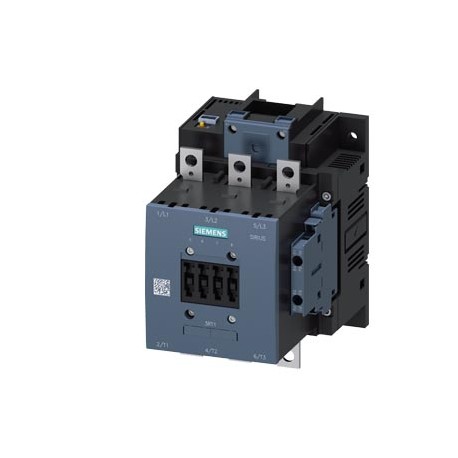

SIEMENS 3RT1456-6NF36 3RT1456-6NF36 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

3RT1456-6NF36 SIEMENS power contactor AC-1 275 A / 690 V / 40 °C 3-pole, Uc: 96-127 V AC(50-60 Hz) / DC PLC ..

Reference: 3RT1456-6NF36

Manufacturer: SIEMENS

Description:

power contactor AC-1 275 A / 690 V / 40 °C 3-pole, Uc: 96-127 V AC(50-60 Hz) / DC PLC input 24 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal
SIRIUS Contactor, 250A/AC-1 AC/DC drive 96-127V Auxiliary contacts 2 NA+2NC 3 poles, size S6 Electronic drive bar connections With SPS DC 24 V interface. Manufactured to order. Non-Cancelable Non-Returnable.

Categories:

  • Low-voltage industrial components > Power contactor, AC switching
  • SIEMENS > CONTROL AND CONTACTORS > Contactors for switching motors

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 685,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product
Article Number (Market Facing Number)3RT1456-6NF36
Product Descriptionpower contactor AC-1 275 A / 690 V / 40 °C 3-pole, Uc: 96-127 V AC(50-60 Hz) / DC PLC input 24 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal
Product familySIRIUS 3RT.4 contactors for weak or non-inductive loads (AC-1), 3-pole up to 2 650 A
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorLFO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works30 Day/Days
Net Weight (kg)3,327 Kg
Packaging Dimension190,00 x 129,00 x 181,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209509801
UPC754554774015
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group3706
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-37-10-03
eClass1427-37-10-03
eClass627-37-10-03
eClass7.127-37-10-03
eClass827-37-10-03
eClass927-37-10-03
eClass9.127-37-10-03
ETIM10EC000066
ETIM7EC000066
ETIM8EC000066
ETIM9EC000066
IDEA44755
UNSPSC1539-12-15-29
