Reference: 3RQ3070-2SG30
Manufacturer: SIEMENS
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RQ3070-2SG30 | ||||||||||||||||||||||||||||||||||||

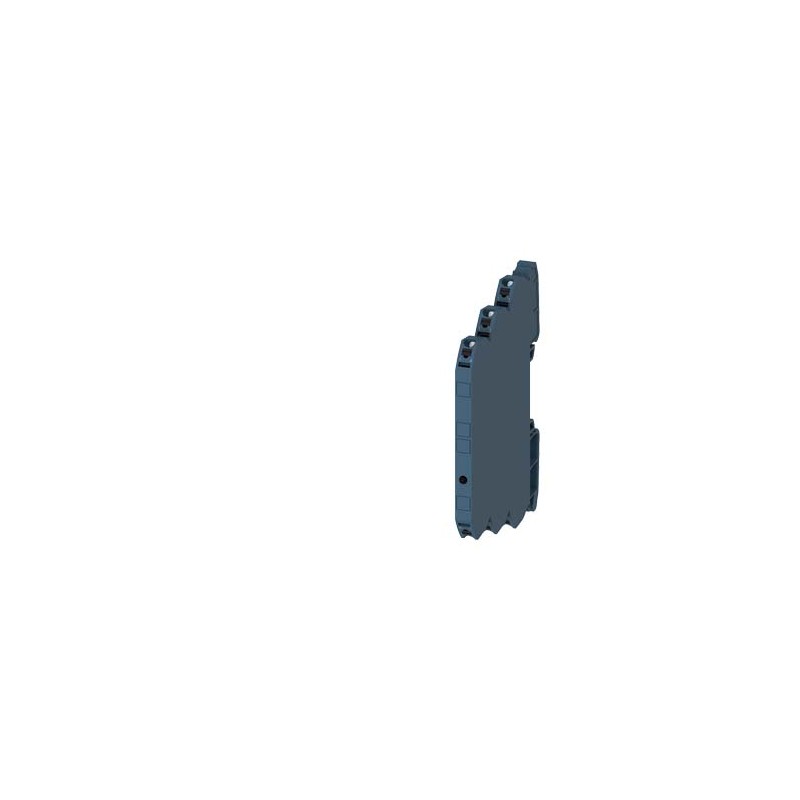

| Product Description | Input coupler Optocoupler 1 NO contact, Transistor Input 110-230 V AC/DC Output max. 30 V DC, 0.5 A short circuit-proof Overall width 6.2 mm Spring-type terminal (push-in) Thermal current 0.5 A | ||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RQ3 coupling relays, narrow design | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 200 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,029 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 70,00 x 95,00 x 7,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Minimum order quantity | 5 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4047621000695 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766216411 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 4950 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Tunisia | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 25.03.2015 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
| Value | Unit | |
|---|---|---|
| Drive, switching attitude (EF003356) | - | |
| Drive, polarization (EF003355) | - | |
| Type of electric connection (EF003961) | Spring clamp connection | |
| With detachable clamps (EF003340) | false | |
| Nominal current (EF000001) | - | A |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['110.0', '230.0'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['110.0', '230.0'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['110', '230'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Number of contacts as normally closed contact (EF008255) | - | |
| Number of contacts as normally open contact (EF008256) | 1 | |
| Number of contacts as change-over contact (EF008257) | - | |
| With forced-guided contacts (EF003357) | false | |
| Type of switch contact (EF003358) | Other | |
| Complete with socket (EF003359) | false | |
| With LED indication (EF005950) | true | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Width (EF000008) | 6.2 | mm |
| Height (EF000040) | 93.0 | mm |
| Depth (EF000049) | 72.5 | mm |
