> SIEMENS>CONTROL AND CONTACTORS>Function relays>3RQ3018-2AB00 SIEMENS Output coupler Relay coupler, 1 change-over contact 24 V AC/DC Overall width 6.2 mm Sp..
Previous Product Next Product

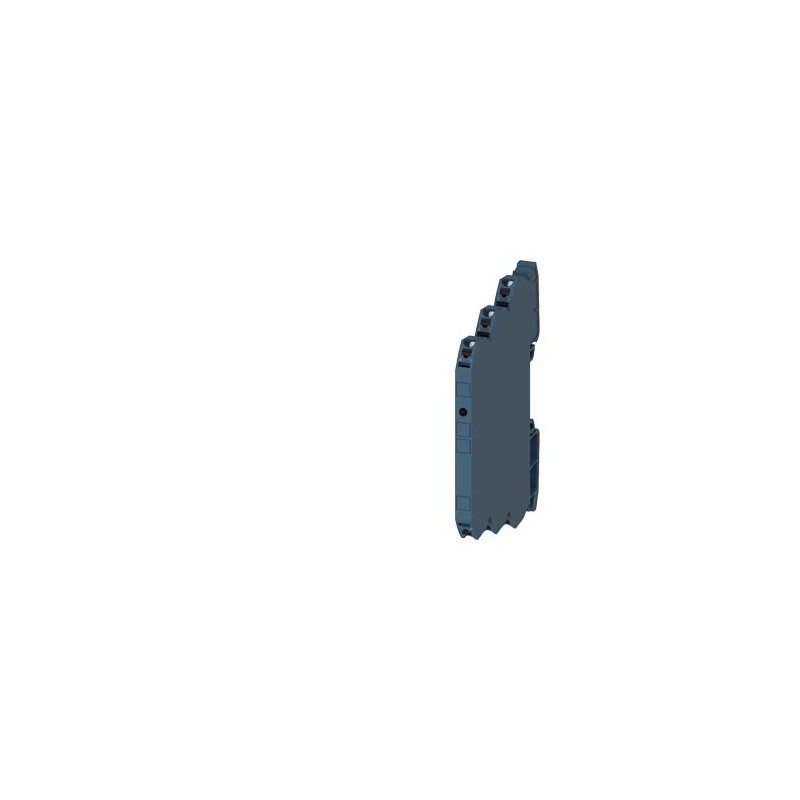

3RQ3018-2AB00 SIEMENS Output coupler Relay coupler, 1 change-over contact 24 V AC/DC Overall width 6.2 mm Sp.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RQ3018-2AB00 SIEMENS Output coupler Relay coupler, 1 change-over contact 24 V AC/DC Overall width 6.2 mm Sp..

3RQ3018-2AB00

SIEMENS

5

Output coupler Relay coupler, 1 change-over contact 24 V AC/DC Overall width 6.2 mm Spring-type terminal (push-in) Thermal current 6A

More details


Relays > Switching relay

CONTROL AND CONTACTORS > Function relays

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $181.26
Unit price: $36.25

Quantity Price
5+$36.25
10+$32.40
15+$32.35
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data

Output coupler Relay coupler, 1 change-over contact 24 V AC/DC Overall width 6.2 mm Spring-type terminal (push-in) Thermal current 6A
product brand nameSIRIUS
product categorySIRIUS 3RQ3 coupling relays in slim design
product designationCoupling relays with relay output (not plug-in)
design of the productOutput coupling link
product type designation3RQ3
General technical data
display version LEDYes
product component
● relay outputYes
● semi-conductor outputNo
consumed active power0.3 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
surge voltage resistance rated value4 kV
maximum permissible voltage for safe isolation
● between control and auxiliary circuit300 V
percental drop-out voltage related to the input voltage10 %
protection class IPIP20
flammability class of enclosure materialUL94 V-0
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
vibration resistance
● according to IEC 60068-2-66 ... 150 Hz: 2 g
operating frequency maximum72 000 1/h
switching behaviormonostable
mechanical service life (switching cycles) typical10 000 000
thermal current6 A
reference code according to IEC 81346-2K
Substance Prohibitance (Date)03/25/2015
Control circuit/ Control
control supply voltage at AC
● at 50 Hz rated value24 V
● at 60 Hz rated value24 V
control supply voltage frequency
● 1 rated value50 Hz
● 2 rated value60 Hz
control supply voltage at DC
● rated value24 V
operating range factor control supply voltage rated value at DC
● initial value0.8
● full-scale value1.25
operating range factor control supply voltage rated value at AC at 50 Hz
● initial value0.8
● full-scale value1.25
operating range factor control supply voltage rated value at AC at 60 Hz
● initial value0.8
● full-scale value1.25
ON-delay time
● at AC maximum12 ms
● at DC maximum12 ms
OFF-delay time14 ms
design of the relay operating mechanismpoled
product component plug-in socketNo
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A
Auxiliary circuit
type of switching contactChangeover contact
material of switching contactsAgSnO2
number of CO contacts for auxiliary contacts1
operational current of auxiliary contacts at AC-15
● at 24 V3 A
● at 250 V3 A
operational current of auxiliary contacts at DC-13
● at 24 V1 A
● at 125 V0.2 A
● at 250 V0.1 A
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
Main circuit
type of voltageAC/DC
Inputs/ Outputs
property of the output short-circuit proofNo
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A
ampacity of the output relay at DC-13
● at 24 V1 A
● at 125 V0.2 A
● at 250 V0.1 A
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-42 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Display
display version as status display by LEDLED green
Connections/ Terminals
product function removable terminalNo
type of electrical connection for auxiliary and control circuitspring-loaded terminals (push-in)
wire length
● at AC maximum500 m
● at DC maximum1 000 m
type of connectable conductor cross-sections
● solid1x (0.25 ... 2.5 mm²)
● finely stranded with core end processing1x (0.25 ... 1.5 mm²)
● finely stranded without core end processing1x (0.25 ... 2.5 mm²)
● at AWG cables solid1 x (20 ... 14)
● at AWG cables stranded1x (20 ... 14)
connectable conductor cross-section
● solid0.25 ... 2.5 mm²
● finely stranded with core end processing0.25 ... 1.5 mm²
● finely stranded without core end processing0.25 ... 2.5 mm²
AWG number as coded connectable conductor cross section
● solid20 ... 14
● stranded20 ... 14
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height93 mm
width6.2 mm
depth72.5 mm
required spacing
● with side-by-side mounting
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
● for grounded parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
● for live parts
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2 000 m
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +85 °C
● during transport-40 ... +85 °C
relative humidity during operation10 ... 95 %
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

CCC

Confirmation

UL

EAC

RCM

Declaration of ConformityTest CertificatesMarine / Shippingother

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Derating
last modified:5/6/2021
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RQ3018-2AB00
Product DescriptionOutput coupler Relay coupler, 1 change-over contact 24 V AC/DC Overall width 6.2 mm Spring-type terminal (push-in) Thermal current 6A
Product familySIRIUS 3RQ3 coupling relays, narrow design
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works50 Day/Days
Net Weight (kg)0,034 Kg
Packaging Dimension8,00 x 84,00 x 98,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity5
Additional Product Information
EAN4047621000909
UPC804766215186
Commodity Code85364190
LKZ_FDB/ CatalogIDCC-IC10
Product Group4950
Group CodeR711
Country of originTunisia
Compliance with the substance restrictions according to RoHS directiveSince: 25.03.2015
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-16-01
eClass7.127-37-16-01
eClass827-37-16-01
eClass927-37-16-01
eClass9.127-37-16-01
ETIM5EC001437
ETIM6EC001437
ETIM7EC001437
ETIM8EC001437
IDEA45367
UNSPSC1539-12-23-31

ETIM data

ETIM: EC001437 - Switching relay

Value Unit
Type of electric connection (EF003961) Spring clamp connection
With detachable clamps (EF003340) false
Nominal current (EF000001) -A
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) -
Number of contacts as normally open contact (EF008256) -
Number of contacts as change-over contact (EF008257) 1
With forced-guided contacts (EF003357) false
Type of switch contact (EF003358) Single contact
Complete with socket (EF003359) false
With LED indication (EF005950) true
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 6.2mm
Height (EF000040) 93.0mm
Depth (EF000049) 72.5mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
