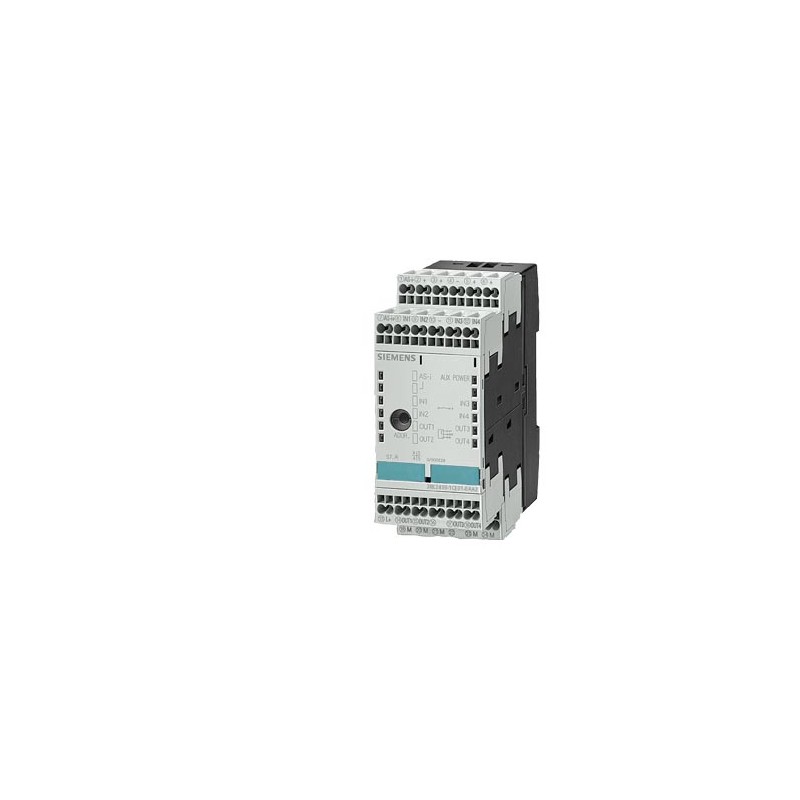

3RK2400-1CE01-0AA2 SIEMENS AS-i SlimLine module Phased-out product !!! For further information, please conta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

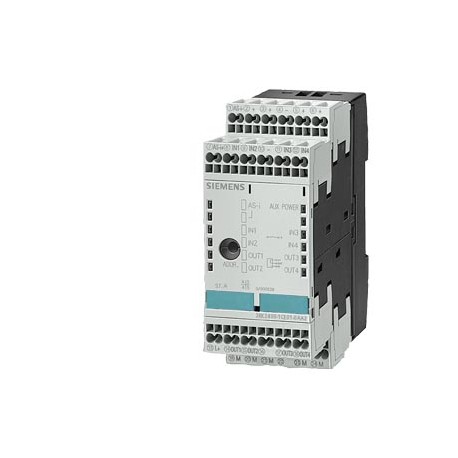

3RK2400-1CE01-0AA2 SIEMENS AS-i SlimLine module Phased-out product !!! For further information, please conta..

3RK2400-1CE01-0AA2

SIEMENS

AS-i SlimLine module Phased-out product !!! For further information, please contact our sales department S45 digital, A/B slave 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Overall width 45 mm

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
SIL according to IEC 61508 (EF009889) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) 4
Number of digital outputs (EF001993) 4
Digital inputs configurable (EF008516) FALSE
Digital outputs configurable (EF008520) false
Input current at signal 1 (EF001428) 5000.0mA
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) DC / DC
Type of digital output (EF003601) Other
Output current (EF003202) 2.0A
Permitted voltage at output (EF007553) ['-', '-']V
Type of output voltage (EF008222) DC / DC
Short-circuit protection, outputs available (EF003203) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP20
Type of electric connection (EF003961) Screw connection
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) -
Appendant operation agent (Ex ib) (EF004142) -
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 45.0mm
Height (EF000040) 106.0mm
Depth (EF000049) 86.0mm


AS-i SlimLine module Phased-out product !!! For further information, please contact our sales department S45 digital, A/B slave 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Overall width 45 mm
General technical data
Design of the productSlimLine S22.5 - I/O modules for operation in the control cabinet
Design of the slave typeA/B slave (Spec. 3.0)
Type4 inputs / 4 outputs
I/O configuration7
ID/ID2 codeA/7
Protocol is supported AS-Interface protocolYes
AS interface total current input maxmA270
operating voltage according to AS-Interface spezificationV26.5 ... 31.6
Addressingfront addressing socket
Type of electrical connection of the inputs and outputsscrew-type terminals
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750A
Reference code acc. to DIN EN 61346-2K
noteAn external additional supply (AUX POWER) of 20 to 30 V DC is required for the supply of the output circuits.The additional supply must comply with VDE 0106 (PELV), protection class III.
Sensor supply
Type of voltage supply for power supplyusing AS-Interface
Input voltageV20 ... 30
Property of the sensor supply Short-circuit and overload resistantYes
Ampacity of the sensor supply for all inputs
● at ambient temperature 40 °CmA200
Inputs
Number of digital inputs4
Type of connection2- and 3-wire technology
Input circuitPNP transistor
Type of voltage of the input voltagesDC
Inputs switching level High minV10
Input current at digital input
● for signal <1> minimummA5 000
● with signal <0> maximummA1.5
Inputs sensor supply using AS-Interfaceshort-circuit and overload resistant
Outputs
Number of digital outputs4
Type of voltage of output voltagesDC
Output voltage at DC at 24 VV22 ... 24
Outputs external power supply 24 V DCusing terminals: Terminal 13 = L+, Terminal 19 = M
Outputs
● aggregate current maxA4
Ampacity
● of the semiconductor output at DC-13 at 24 VA2
Type of switching outputsolid state
Property of the output Short-circuit proofYes
output Polarity reversal protectionbuilt-in
Outputs
● short-ciruit protectionbuilt-in
● induction protectionbuilt-in
● watchdogbuilt-in
Status display
● display of I/Osyellow LED
● AS-Interfacegreen LED
● FAULTred LED
Assignment of data bits
● D0IN1/OUT1
● D1IN2 /OUT2
● D2IN3/OUT3
● D3IN4/OUT4
Ambient conditions
Ambient temperature
● during operation°C-25 ... +70
● during storage°C-40 ... +85
Protection class IPIP20
Mechanical data
Widthmm45
Heightmm106
Depthmm86
Mounting type35 mm standard rail mounting or wall mounting using push-in lugs
Conductor cross-section
● solid1 x (0.5 - 4) mm² or 2 x (0.5 - 2.5) mm²
● finely stranded
— with end sleeve1 x (0.5 - 2.5) mm² or 2 x (0.5 - 1.5) mm²
● AWG solid or strandedAWG 2 x (20 - 14) mm²
Certificates/ approvals
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Shipping Approvalother

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

ASI-Certification

other

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:05/15/2020


Product
Article Number (Market Facing Number)3RK2400-1CE01-0AA2
Product DescriptionAS-i SlimLine module Phased-out product !!! For further information, please contact our sales department S45 digital, A/B slave 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Overall width 45 mm
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.12.2016
Notes
Sucessor:For successor, see https://support.industry.siemens.com/cs/ww/en/view/109743533
Price data
Price Group
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,289 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension55,00 x 115,00 x 105,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209675094
UPC754554942957
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.03.2017
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM4EC001599
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
IDEA43566
UNSPSC1439-12-15-21
UNSPSC1532-15-17-05

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK2400-1CE01-0AA2 3RK2400-1CE01-0AA2 EN_3RK2400-1CE01-0AA2.pdf 222 Kbytes 3RK2400-1CE01-0AA2 3RK2400-1CE01-0AA2 EN_3RK2400-1CE01-0AA2.pdf
