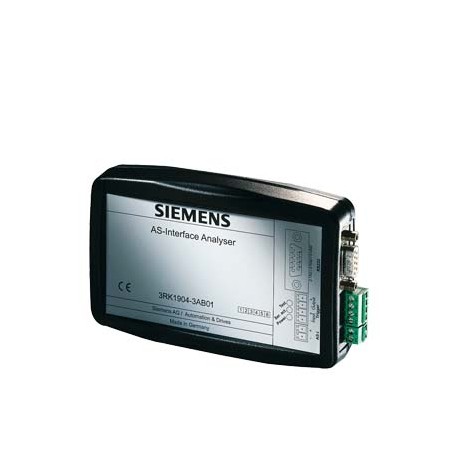

3RK1904-3AB01 SIEMENS AS-Interface Analyzer V2 Diagnostic unit with functionality according to V2.1 Extended.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1904-3AB01 SIEMENS AS-Interface Analyzer V2 Diagnostic unit with functionality according to V2.1 Extended..

3RK1904-3AB01

SIEMENS

AS-Interface Analyzer V2 Diagnostic unit with functionality according to V2.1 Extended version with ASIsafe evaluation and measurement wizard

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $3,862.33
Unit price: $3,862.33
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-Interface Analyzer V2 Diagnostic unit with functionality according to V2.1 Extended version with ASIsafe evaluation and measurement wizard
General technical data
design of the productAS-Interface diagnostics device - AS-i analyzer
Power supplyusing AS-Interface
Rated insulation voltage Ui minV500
rated operational current IemA70
EMC emitted interferenceacc. to EN50081-2, EN61000-6-2
Status display AS-Interface LEDLED green (power): power on; LED yellow (ser active): RS232 interface in operation; LED green/red (test): test mode
operating system requiredWindows XP / Vista Business/Ultimate, Windows 7 Professional/Ultimate, Windows 8 / 8.1, Windows 10 (as of Software V1.3.7.0)
interfacesAS-Interface, RS232 for connection to a PC, trigger input (24 V), trigger output (TTL)
system requirementsIBM compatible PC 80486 and higher
other informationMessage buffer for 256 000 AS-Interface message frames. Scope of supply: AS-Interface analyzer, D-Sub data cable, RS232 USB adapter, screwdriver, service case with foam inlay, PC software V1.3.7.0
Ambient conditions
ambient temperature
● during operation°C0 ... 55
● during storage°C-25 ... +70
degree of protection
● deviceIP20
Mechanical data
widthmm150
heightmm30
depthmm90
connectionusing removable screw-type terminals to AS-i, PC/RS232 using 9-pole D-Sub connector
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of ConformityMarine / Shipping

Confirmation

EAC

RCM

EC/EU-Declaration of Conformity

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1904-3AB01
Product DescriptionAS-Interface Analyzer V2 Diagnostic unit with functionality according to V2.1 Extended version with ASIsafe evaluation and measurement wizard
Product familyAnalyzer
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99S
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,825 Kg
Packaging Dimension205,00 x 245,00 x 75,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209648319
UPC754554944876
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3721
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
IDEA43552
UNSPSC1439-12-15-21
UNSPSC1532-15-17-03

ETIM data

ETIM: EC002584 - Accessories/spare parts for controls

Value Unit
Type of mechanical accessory/spare part (EF005994) -
Type of electrical accessory/spare part (EF005722) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1904-3AB01 3RK1904-3AB01 EN_3RK1904-3AB01.pdf 247 Kbytes 3RK1904-3AB01 3RK1904-3AB01 EN_3RK1904-3AB01.pdf
