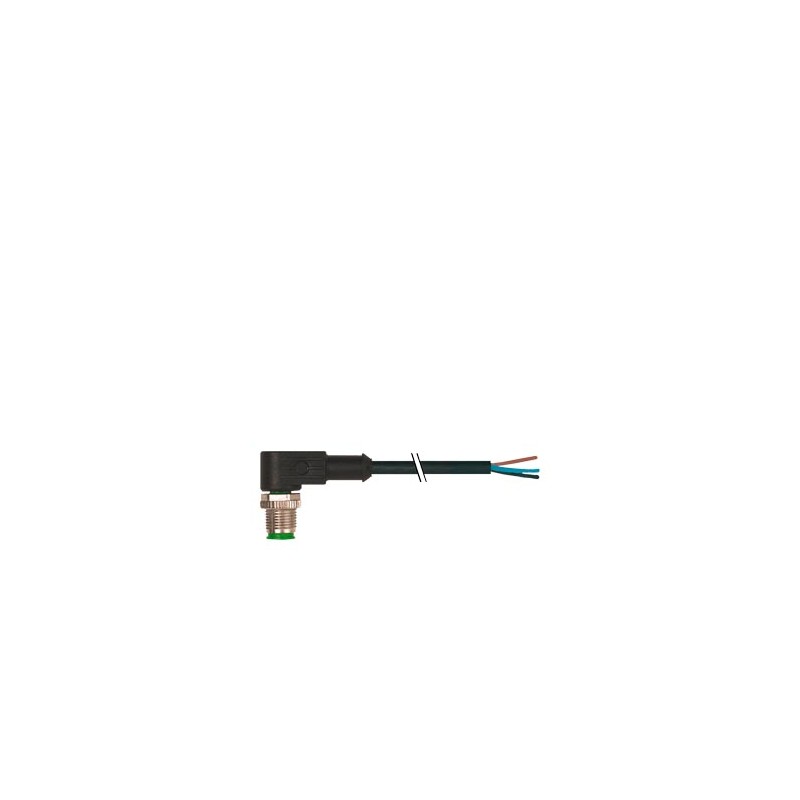

3RK1902-4HB50-5AA0 SIEMENS Control cable Pre-assembled at one end M12 connector angled, 5-pole with 5 m cabl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1902-4HB50-5AA0 SIEMENS Control cable Pre-assembled at one end M12 connector angled, 5-pole with 5 m cabl..

3RK1902-4HB50-5AA0

SIEMENS

Control cable Pre-assembled at one end M12 connector angled, 5-pole with 5 m cable 5 x 0.34 mm2 A-coded max. 4 A PUR sheath black

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $103.07
Unit price: $103.07
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Control cable Pre-assembled at one end M12 connector angled, 5-pole with 5 m cable 5 x 0.34 mm2 A-coded max. 4 A PUR sheath black
General technical data
product descriptionM12 lead, angled on one side
wire lengthm5
General technical data
ampacity per pin maximumA4
operating voltage at DC maximumV125
surge voltage resistance rated valueV1 500
Mechanical data
type of connection technologyplugged, screwed
connector typeM12
connector coding of the M12 circular connectorA
number of electrical cores5
type of cable outletangled
number of poles5
color of cable sheathBlack
material of cable sheathPUR-OB
color of the insulation of data wiressee wiring diagram
material of the wire insulationpolypropylene (PP)
design of the shieldunshielded
type of strain reliefcast
outer diameter
● of the cablemm5
● of inner conductormm0.34
type of connectable conductor cross-sections stranded5 x 0.34 mm²
type of plug interlockM12 x 1 thread
cable end componentsopen on one side
Ambient conditions
ambient temperature during operation
● minimum°C-25
● maximum°C80
protection class IPIP67
chemical resistance
● to ASTM oil 2conditional, must be checked relative to the application
● to mineral oilconditional, must be checked relative to the application
● to waterconditional, must be checked relative to the application
● to greaseconditional, must be checked relative to the application
degree of pollution3
Certificates/ approvals
certificate of suitability
● CSA approvalYes
● UL approvalYes

Downloads and manuals

● IEC approvalYes
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1902-4HB50-5AA0
Product DescriptionControl cable Pre-assembled at one end M12 connector angled, 5-pole with 5 m cable 5 x 0.34 mm2 A-coded max. 4 A PUR sheath black
Product familyMiscellaneous accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,191 Kg
Packaging Dimension180,00 x 220,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPC887621033750
Commodity Code85444290
LKZ_FDB/ CatalogIDCC-IC10
Product Group3722
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1902-4HB50-5AA0 3RK1902-4HB50-5AA0 EN_3RK1902-4HB50-5AA0.pdf 190 Kbytes 3RK1902-4HB50-5AA0 3RK1902-4HB50-5AA0 EN_3RK1902-4HB50-5AA0.pdf
