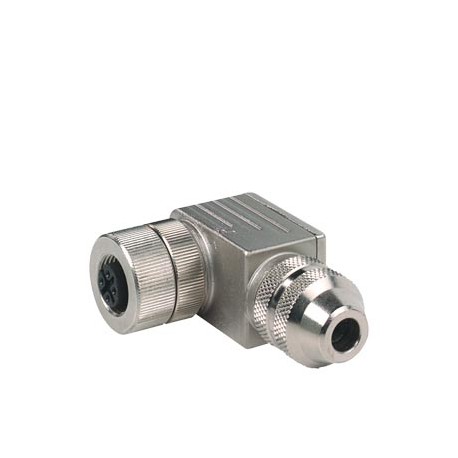

3RK1902-1DA00 SIEMENS M12 socket for PROFIBUS angled, 5-pole, B-coded screw terminal No terminating resistor View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1902-1DA00 SIEMENS M12 socket for PROFIBUS angled, 5-pole, B-coded screw terminal No terminating resistor

3RK1902-1DA00

SIEMENS

M12 socket for PROFIBUS angled, 5-pole, B-coded screw terminal No terminating resistor

M12 SOCKET FOR PROFIBUS ANGLED, 5-POLE, B CODING SCREW CONNECTION NO TERMINATING RESISTOR INTEGRATED

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $113.15
Unit price: $113.15
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

M12 socket for PROFIBUS angled, 5-pole, B-coded screw terminal No terminating resistor
General technical data
ampacity per pin maximumA4
operating voltage maximumV125
flow resistance maximumΩ·m3
surge voltage resistance rated valuekV0.8
Mechanical data
type of connection technologyScrew terminals
connector typeSocket
connector coding of the M12 circular connectorB
type of cable outletangled
number of poles5
connectable conductor cross-section for flexible conductor maximummm²0.75
diameter of inlet openingmm6 ... 8
material
● of the contactBrass, bronze
● of contact coatingGold
● of connector fixed partPolyamide
● of the enclosureZinc diecast, nickel-plated
depthmm20
heightmm54
widthmm43
type of strain reliefPressure screw, pinch ring
mechanical service life (mating cycles)100
type of plug interlockM12 x 1 thread
Ambient conditions
ambient temperature
● during storage°C-25 ... +85
● during operation°C-25 ... +85
protection class IPIP67
chemical resistance
● to mineral oilconditional, must be checked relative to the application
● to waterconditional, must be checked relative to the application
● to greaseconditional, must be checked relative to the application
degree of pollution3
Certificates/ approvals
certificate of suitability
● CSA approvalNo
● RoHS conformityYes
● UL approvalNo
● CCCNo
● IEC approvalNo
● cUL approvalNo

Downloads and manuals

● C-TickNo
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/2/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1902-1DA00
Product DescriptionM12 socket for PROFIBUS angled, 5-pole, B-coded screw terminal No terminating resistor
Product familyAccessories for all M200D motor starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42D / 42D
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,072 Kg
Packaging Dimension37,00 x 95,00 x 27,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209853003
UPC662643517972
Commodity Code85366990
LKZ_FDB/ CatalogIDCC-IC10
Product Group3722
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RK1902-1DA00 3RK1902-1DA00 EN_3RK1902-1DA00.pdf 206 Kbytes 3RK1902-1DA00 3RK1902-1DA00 EN_3RK1902-1DA00.pdf
