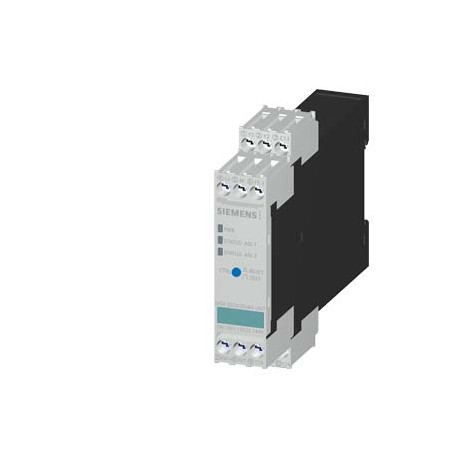

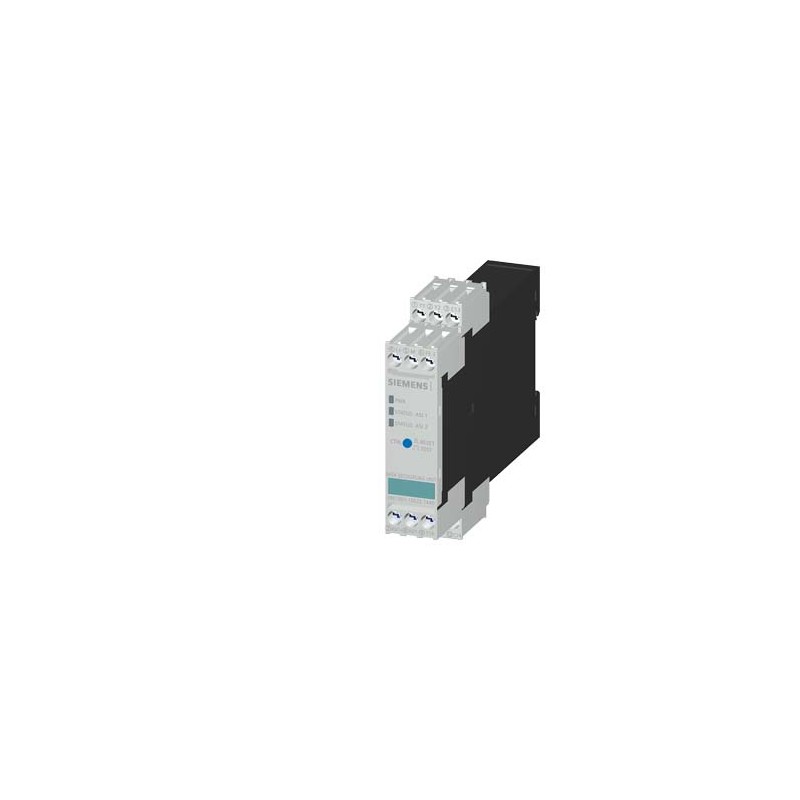

3RK1901-1DE22-1AA0 SIEMENS AS-i data decoupler 2 x 4 A Screw terminals, AS-i dual Data decoupling module IP2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RK1901-1DE22-1AA0 SIEMENS AS-i data decoupler 2 x 4 A Screw terminals, AS-i dual Data decoupling module IP2..

3RK1901-1DE22-1AA0

SIEMENS

AS-i data decoupler 2 x 4 A Screw terminals, AS-i dual Data decoupling module IP20, SlimLine S22.5 Screw terminals Overall width module 22.5 mm IN: 24 V / 30 V DC OUT: 2 x AS-i, 4 A Integrated overload protection Integrated ground fault detection Signaling contact Remote reset

DESACPL. AS-I DATA 2 X 4A SCHR AS-INTERFACE, DOUBLE DATA DECOUPLING MODULE, IP20, SLIMLINE S22.5 SCREW TERMINALS, MODULE WIDTH 22.5 MM INPUT: DC 24 V / 30 V OUTPUT: 2 X AS-I, 4 A PROT. INTEG. OVERVOLTAGE, DETEC. DEFECT TO INTERNAL GROUND, SIGNALING CONTACTS, REMOTE RESET.

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $269.76
Unit price: $269.76
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-i data decoupler 2 x 4 A Screw terminals, AS-i dual Data decoupling module IP20, SlimLine S22.5 Screw terminals Overall width module 22.5 mm IN: 24 V / 30 V DC OUT: 2 x AS-i, 4 A Integrated overload protection Integrated ground fault detection Signaling contact Remote reset
General technical data
product designationTwin data decoupling module
design of the productSlimLine S22.5 - Module to beused in the IP20 control cabinet
protection class IPIP20
installation altitude at height above sea level maximumm2 000
ambient temperature
● during operation°C-25 ... +70
● during storage°C-40 ... +85
relative humidity at 25 °C during operation maximum%70
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
reference code according to EN 61346-2A
supplied active powerW240
mechanical service life (switching cycles) of the signaling contacts typical1 000 000
product function
● auto-RESETNo
● external resetYes
● manual RESETYes
● ground fault detectionYes
● test function of signaling contactsYes
● suitable for grounded AS-i networksYes
● adapted for non-grounded AS-i networksYes
● suitable for AS-i Power24VYes
● sequential connected time-delayYes
● AS-Interface data decouplingYes
reset functionyes
adjustable current response value current of the current-dependent overload releaseA2.5 ... 4
number of electrical connections for signaling contact3
number of outputs for AS-Interface maximum2
display version as status display by LEDyes
number of switching contacts as NO contact for signaling function2
design of the switching contact as NO contact for signaling functionyes
response delay of the sequential connection delayms200
Communication/ Protocol
protocol is supported AS-Interface protocolYes
Auxiliary circuit
operational current of auxiliary contacts
● at AC-15 at 24 VA3
● at DC-13 at 24 VA1
Inputs/ Outputs
type of voltage
● of the input voltagesDC
● of the input voltageDC
property of the output short-circuit proofYes
output voltage
● 1 at DC
— rated valueV30
— rated valueV20.5 ... 31.6
● 2 at DC rated valueV24
output current at DC maximumA4
input voltage
● 1 at DC
— rated valueV30
— rated valueV21 ... 32
● 2 at DC rated valueV24
input current at DC maximumA8.2
Short-circuit protection
design of short-circuit protectionelectronic
Installation/ mounting/ dimensions
mounting positionvertical
fastening method35-mm DIN rail mounting or wall mounting with plug-in flaps
widthmm22.5
heightmm101.3
depthmm121.2
type of electrical connection for auxiliary and control circuitscrew-type terminals
product component removable terminal for auxiliary and control circuitYes
type of connectable conductor cross-sections
● for auxiliary contacts
— solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)
— finely stranded
— with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables for auxiliary contacts2x (20 ... 14)
certificate of suitabilityCE / UL / CSA
suitability for use safety-related circuitsYes
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Marine / Shippingother

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK1901-1DE22-1AA0
Product DescriptionAS-i data decoupler 2 x 4 A Screw terminals, AS-i dual Data decoupling module IP20, SlimLine S22.5 Screw terminals Overall width module 22.5 mm IN: 24 V / 30 V DC OUT: 2 x AS-i, 4 A Integrated overload protection Integrated ground fault detection Signaling contact Remote reset
Product familyS22.5 data decoupling modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,200 Kg
Packaging Dimension107,00 x 115,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209881174
UPC040892652635
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3721
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-11
eClass7.127-24-26-11
eClass827-24-26-11
eClass927-24-26-11
eClass9.127-24-26-11
ETIM5EC002583
ETIM6EC002583
ETIM7EC002583
ETIM8EC002583
IDEA43575
UNSPSC1432-15-17-03
UNSPSC1532-15-17-06

ETIM data

ETIM: EC002583 - Fieldbus, decentr. periphery - power supply module

Value Unit
Input voltage at AC 50 Hz (EF007118) ['-', '-']V
Input voltage at AC 60 Hz (EF007119) ['-', '-']V
Input voltage at DC (EF007120) ['21', '32']V
Type of voltage (input voltage) (EF003033) DC
Max. input current AC 50 Hz (EF007360) FALSEA
Max. input current AC 60 Hz (EF007361) FALSEA
Max. input current DC (EF007362) 8.2A
Output voltage at AC 50 Hz (EF006999) ['-', '-']V
Output voltage at AC 60 Hz (EF007000) ['-', '-']V
Output voltage at DC (EF007001) ['20.5', '31.6']V
Type of output voltage (EF008222) DC
Max. output current AC 50 Hz (EF007351) -A
Max. output current AC 60 Hz (EF007352) -A
Max. output current DC (EF007353) 4.0A
Redundancy (EF003156) false
Suitable for safety functions (EF001597) true
Width (EF000008) 22.5mm
Height (EF000040) 101.3mm
Depth (EF000049) 121.2mm
