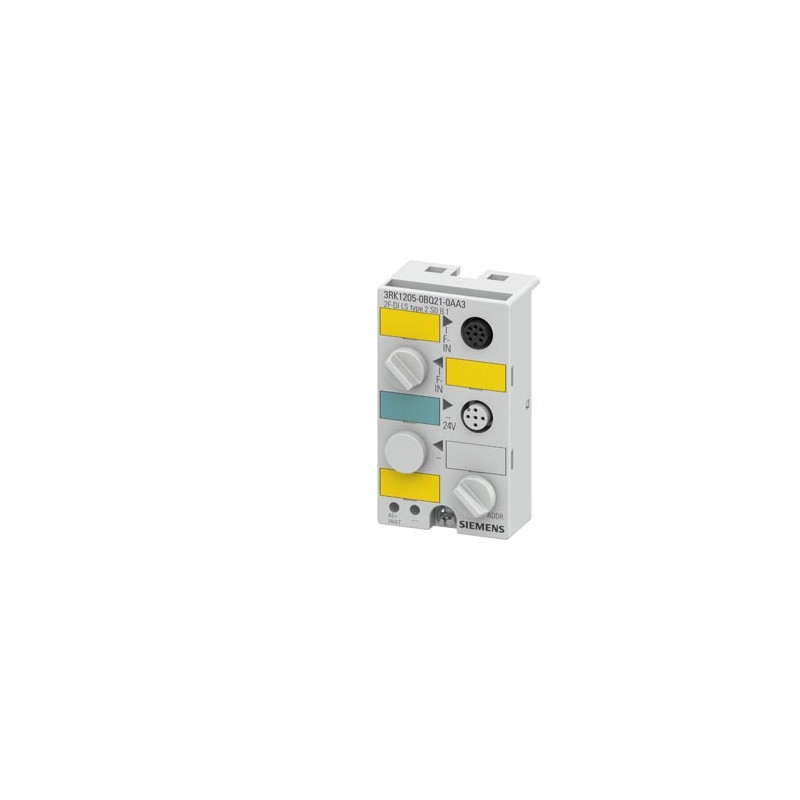

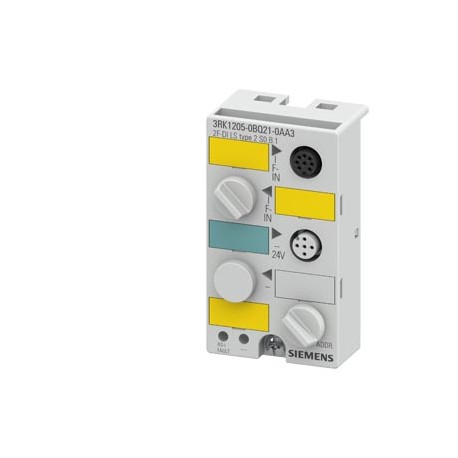

3RK1205-0BQ21-0AA3 SIEMENS ASIsafe compact module K45F LS Type 2 (light sensor) for testing semiconductor ou..
3RK1205-0BQ21-0AA3
SIEMENS
ASIsafe compact module K45F LS Type 2 (light sensor) for testing semiconductor output Sensor supply from AS-i Maximum current carrying capacity 200 mA Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately
CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RK1205-0BQ21-0AA3 | |||||||||||||||||||||||||||||||||||||||
| Product Description | ASIsafe compact module K45F LS Type 2 (light sensor) for testing semiconductor output Sensor supply from AS-i Maximum current carrying capacity 200 mA Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately | |||||||||||||||||||||||||||||||||||||||
| Product family | AS-Interface safety modules | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 01.10.2022 | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42C / 42C | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,097 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 45,00 x 105,00 x 50,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209683921 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554950334 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 3720 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module
| Value | Unit | |
|---|---|---|
| Permitted voltage at output (EF007553) | - | V |
| Permitted voltage at input (EF007554) | - | V |
| Digital inputs configurable (EF008516) | - | |
| Suitable for safety functions (EF001597) | - | |
| Type of digital output (EF003601) | - | |
| Supply voltage DC (EF007534) | - | V |
| Supply voltage AC 50 Hz (EF007532) | ['-', '-'] | V |
| Supply voltage AC 60 Hz (EF007533) | ['-', '-'] | V |
| Voltage type of supply voltage (EF002991) | DC | |
| Number of digital inputs (EF001992) | - | |
| Number of digital outputs (EF001993) | - | |
| Digital outputs configurable (EF008520) | false | |
| Input current at signal 1 (EF001428) | 5.0 | mA |
| Type of voltage (input voltage) (EF003033) | DC | |
| Type of output voltage (EF008222) | DC | |
| Short-circuit protection, outputs available (EF003203) | - | |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 | |
| Number of interfaces PROFINET (EF006932) | 0 | |
| Number of HW-interfaces RS-232 (EF003021) | 0 | |
| Number of HW-interfaces RS-422 (EF003022) | 0 | |
| Number of HW-interfaces RS-485 (EF003023) | 0 | |
| Number of HW-interfaces serial TTY (EF003024) | 0 | |
| Number of HW-interfaces parallel (EF003026) | 0 | |
| Number of HW-interfaces Wireless (EF006933) | 0 | |
| Number of HW-interfaces USB (EF003025) | 0 | |
| Number of HW-interfaces other (EF003027) | 0 | |
| With optical interface (EF003028) | false | |
| Supporting protocol for TCP/IP (EF003050) | false | |
| Supporting protocol for PROFIBUS (EF003052) | false | |
| Supporting protocol for CAN (EF003053) | false | |
| Supporting protocol for INTERBUS (EF003054) | false | |
| Supporting protocol for ASI (EF003051) | true | |
| Supporting protocol for KNX (EF003055) | false | |
| Supporting protocol for Modbus (EF003057) | false | |
| Supporting protocol for Data-Highway (EF003058) | false | |
| Supporting protocol for DeviceNet (EF003059) | false | |
| Supporting protocol for SUCONET (EF003060) | false | |
| Supporting protocol for LON (EF003017) | false | |
| Supporting protocol for PROFINET IO (EF007525) | false | |
| Supporting protocol for PROFINET CBA (EF007524) | false | |
| Supporting protocol for SERCOS (EF006657) | false | |
| Supporting protocol for Foundation Fieldbus (EF007522) | false | |
| Supporting protocol for EtherNet/IP (EF007521) | false | |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | true | |
| Supporting protocol for DeviceNet Safety (EF007520) | false | |
| Supporting protocol for INTERBUS-Safety (EF006662) | false | |
| Supporting protocol for PROFIsafe (EF007526) | false | |
| Supporting protocol for SafetyBUS p (EF007527) | false | |
| Supporting protocol for other bus systems (EF003062) | false | |
| Radio standard Bluetooth (EF007178) | false | |
| Radio standard WLAN 802.11 (EF007179) | false | |
| Radio standard GPRS (EF008523) | false | |
| Radio standard GSM (EF008524) | false | |
| Radio standard UMTS (EF008525) | false | |
| IO link master (EF007298) | false | |
| System accessory (EF004118) | true | |
| Degree of protection (IP) (EF005474) | IP67 | |
| Type of electric connection (EF003961) | Screw connection | |
| Time delay at signal exchange (EF002382) | ['-', '-'] | ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | - | |
| Rail mounting possible (EF003972) | FALSE | |
| Wall mounting/direct mounting (EF007020) | FALSE | |
| Front build in possible (EF007016) | false | |
| Rack-assembly possible (EF007018) | false | |
| Category according to EN 954-1 (EF006782) | 4 | |
| SIL according to IEC 61508 (EF009889) | 3 | |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e | |
| Appendant operation agent (Ex ia) (EF004141) | false | |
| Appendant operation agent (Ex ib) (EF004142) | false | |
| Explosion safety category for gas (EF003997) | FALSE | |
| Explosion safety category for dust (EF003998) | FALSE | |
| Width (EF000008) | 45.0 | mm |
| Height (EF000040) | 80.0 | mm |
| Depth (EF000049) | 34.0 | mm |
| Output current (EF003202) | - | A |
