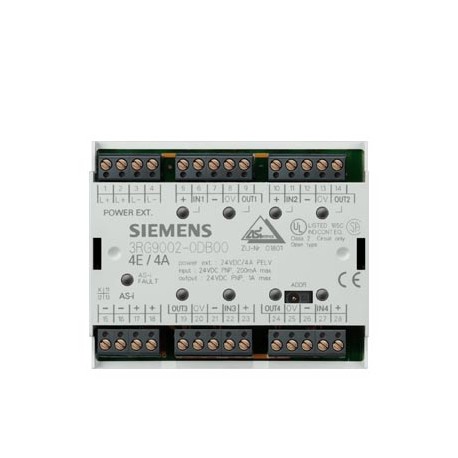

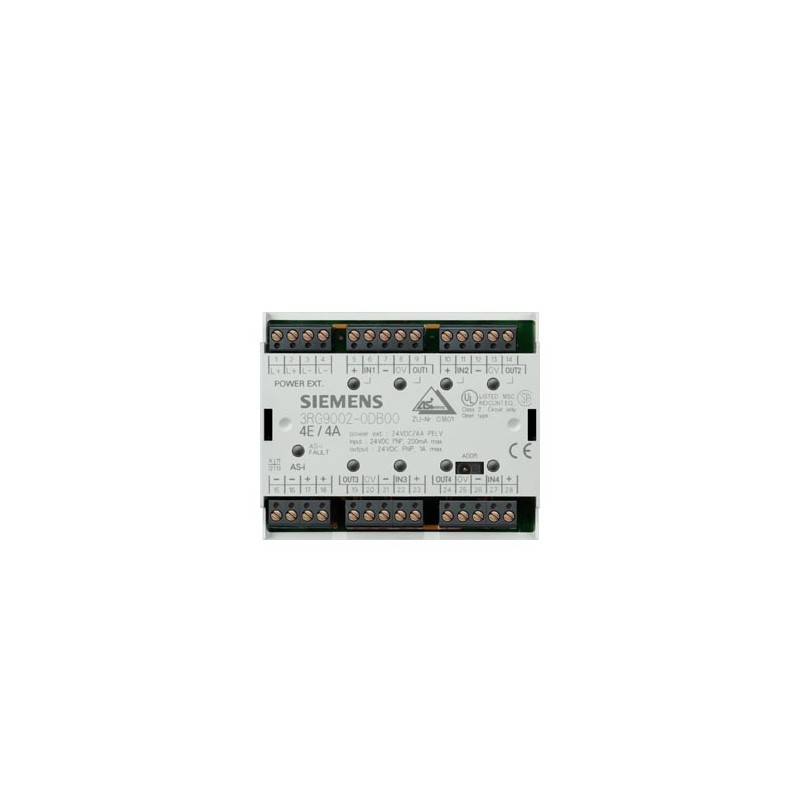

3RG9004-0DB00 SIEMENS AS-Interface module F90, digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x outp.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RG9004-0DB00 SIEMENS AS-Interface module F90, digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x outp..

3RG9004-0DB00

SIEMENS

AS-Interface module F90, digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 1 A, 24 V DC maximal 6 A for all outputs Connection via Combicon Width 90 mm Combicon connector set 3RX9810-0AA00 must be ordered .

AS-interface, 4E/4S user module, 4x1 input 200mA, PNP, 4x1 electronic output DC 24V, 1A, COMBICON plug strip, external voltage supply via COMBICON plug strip.

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $261.76
Unit price: $261.76
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-Interface module F90, digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 1 A, 24 V DC maximal 6 A for all outputs Connection via Combicon Width 90 mm Combicon connector set 3RX9810-0AA00 must be ordered .
General technical data
design of the productF90 module - I/O modules for operation in the control cabinet, IP20
Type4 inputs / 4 outputs
design of the slave typestandard slave
I/O configuration7
ID/ID2 code0/F
type of electrical connection of the inputs and outputscombicon connection
AS interface total current input maxmA270
operating voltage according to AS-Interface spezificationV26.5 ... 31.6
Addressingpossible using integrated addressing socket
Watchdogbuilt-in
Note 1An external additional supply (AUX POWER) of 20 to 30 V DC is required for the supply of the output circuits. The additional supply must comply with VDE 0106 (PELV), protection class III.
Sensor supply
type of voltage supply for power supplyusing AS-Interface
property of the sensor supply short-circuit and overload resistantYes
ampacity of the sensor supply for all inputs at ambient temperature 40 °CmA200
Inputs
number of digital inputs4
type of connection technology2- and 3-conductor PNP transistor
Input circuitPNP transistor
type of voltage of the input voltagesDC
input current at digital input
● for signal <1> minimummA5
● with signal <0> maximummA1.5
Inputs
● switching level High minV10
● sensor supply using AS-Interfaceshort-circuit and overload resistant
● connection sensors2- and 3-conductor technology
Outputs
number of digital outputs4
type of voltage of output voltagesDC
Outputs external power supply 24 V DCusing Combicon plug connector
output current at digital output for signal <1> rated valueA1
type of switching outputsolid state
Outputs total current of all outputsA4
property of the output short-circuit proofYes
Outputs
● short-ciruit protectionbuilt-in
● induction protectionbuilt-in
Status display
● display of I/Osyellow LEDs
● display of AS-Interface/diagnosticsgreen/red dual LED
Assignment of data bits
● D0IN1/OUT1
● D1IN2/OUT2
● D2IN3/OUT3
● D3IN4/OUT4
Ambient conditions
ambient temperature
● during operation°C-25 ... +70
● during storage°C-40 ... +85
protection class IPIP20
Mechanical data
widthmm90
heightmm75
depthmm37
fastening method35 mm standard rail mounting
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityMarine / Shipping

CSA

Confirmation

UL

EAC

EC/EU-Declaration of Conformity

ABS (American Bureau of Shipping)

Marine / Shippingother

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

DNV-GL

Confirmation

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/6/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RG9004-0DB00
Product DescriptionAS-Interface module F90, digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 1 A, 24 V DC maximal 6 A for all outputs Connection via Combicon Width 90 mm Combicon connector set 3RX9810-0AA00 must be ordered .
Product familyF90 module
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,082 Kg
Packaging Dimension78,00 x 100,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209217287
UPC754554375274
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1432-15-17-05
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
SIL according to IEC 61508 (EF009889) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) 4
Number of digital outputs (EF001993) 4
Digital inputs configurable (EF008516) FALSE
Digital outputs configurable (EF008520) false
Input current at signal 1 (EF001428) 5.0mA
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) DC / DC
Type of digital output (EF003601) Other
Output current (EF003202) 1.0A
Permitted voltage at output (EF007553) ['-', '-']V
Type of output voltage (EF008222) DC / DC
Short-circuit protection, outputs available (EF003203) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP20
Type of electric connection (EF003961) Other
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) -
Appendant operation agent (Ex ib) (EF004142) -
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 90.0mm
Height (EF000040) 75.0mm
Depth (EF000049) 37.0mm



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RG9004-0DB00 3RG9004-0DB00 EN_3RG9004-0DB00.pdf 249 Kbytes 3RG9004-0DB00 3RG9004-0DB00 EN_3RG9004-0DB00.pdf
