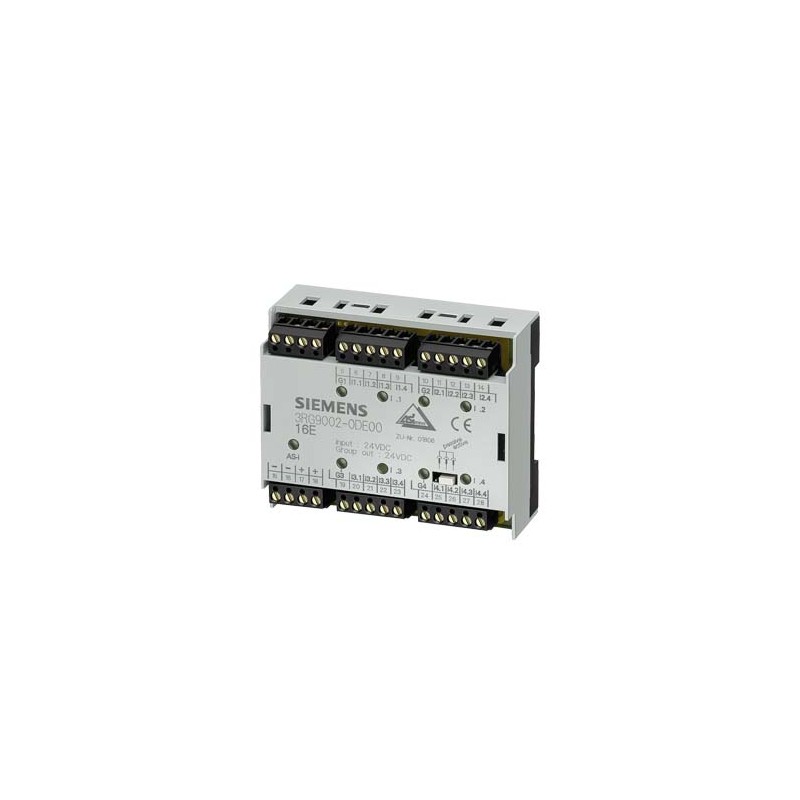

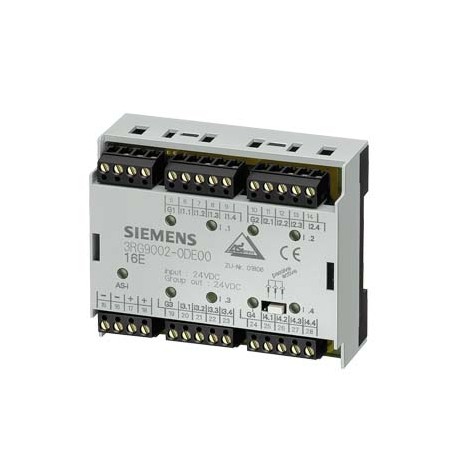

3RG9002-0DE00 SIEMENS AS-Interface module F90, digital 16 DI (multiplexing) 16 x inputs for 2-wire sensor Co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RG9002-0DE00 SIEMENS AS-Interface module F90, digital 16 DI (multiplexing) 16 x inputs for 2-wire sensor Co..

3RG9002-0DE00

SIEMENS

AS-Interface module F90, digital 16 DI (multiplexing) 16 x inputs for 2-wire sensor Connection via screw terminals Width 90 mm

More details


PLC's > Fieldbus, decentr. periphery - digital I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
SIL according to IEC 61508 (EF009889) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) 16
Number of digital outputs (EF001993) 0
Digital inputs configurable (EF008516) FALSE
Digital outputs configurable (EF008520) false
Input current at signal 1 (EF001428) 3.0mA
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) DC / DC
Type of digital output (EF003601) None
Permitted voltage at output (EF007553) ['-', '-']V
Type of output voltage (EF008222) #NO_DATA# / DC
Short-circuit protection, outputs available (EF003203) false
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP20
Type of electric connection (EF003961) Screw connection
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) -
Appendant operation agent (Ex ib) (EF004142) -
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 90.0mm
Height (EF000040) 75.0mm
Depth (EF000049) 37.0mm
Output current (EF003202) -A


AS-Interface module F90, digital 16 DI (multiplexing) 16 x inputs for 2-wire sensor Connection via screw terminals Width 90 mm
General technical data
Design of the productF90 module - I/O modules for operation in the control cabinet, IP20
Type16 inputs
Design of the slave typestandard slave
I/O configuration7
ID/ID2 codeF/F
Type of electrical connection of the inputs and outputsscrew-type terminals
AS interface total current input maxmA70
operating voltage according to AS-Interface spezificationV26.5 ... 31.6
Group signal current carrying capacity Iout maxmA25
Group signal Output voltage Uout minV20
Group signal Output voltage Uout maxV30
Watchdogbuilt-in
Function blocksrequired
Note 1The module has four input groups. Each input group has four inputs and a group signal for the voltage supply of the inputs.
Note 2The input groups are activated individually by setting of the respective group signal by the control system. The switching states of the assigned inputs are then read in.
Note 3An external additional supply (AUX POWER) of 20 to 30 V DC is required for the supply of the output circuits. The additional supply must comply with VDE 0106 (PELV), protection class III.
Sensor supply
Type of voltage supply for power supplyusing AS-Interface
Input voltageV20 ... 30
Property of the sensor supply Short-circuit and overload resistantYes
Ampacity of the sensor supply for all inputs at ambient temperature 40 °CmA200
Inputs
Number of digital inputs16
Type of connectionPNP transistor
Input circuitPNP transistor
Type of voltage of the input voltagesDC
Input current at digital input
● for signal <1> minimummA3
Inputs
● switching level High minV20
● sensor supply using AS-Interfaceshort-circuit and overload resistant
● connection sensorsmechanical contacts
Inputs signal 1
● UinV20 ... 30
● Iin minmA3
Outputs
Number of digital outputs0
Property of the output Short-circuit proofNo
Status display
● display of I/Osyellow LEDs
● display of AS-Interface/diagnosticsgreen LED
Assignment of data bits
● D0group signal G1 (D0) inputs I 1.1 to I 1.4 (D0 to D3)
● D1group signal G2 (D1) inputs I 2.1 to I 2.4 (D0 to D3)
● D2group signal G3 (D2) inputs I 3.1 to I 3.4 (D0 to D3)
● D3group signal G4 (D3) inputs I 4.1 to I 4.4 (D0 to D3)
Ambient conditions
Ambient temperature
● during operation°C-25 ... +70
● during storage°C-40 ... +85
Protection class IPIP20
Mechanical data
Widthmm90
Heightmm75
Depthmm37
Mounting type35 mm standard rail mounting
Certificates/ approvals
General Product ApprovalDeclaration of ConformityShipping Approval

CSA

UL

EAC

EC/EU-Declaration of Conformity

Miscellaneous

ABS (American Bureau of Shipping)

Shipping Approvalother

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:05/15/2020


Product
Article Number (Market Facing Number)3RG9002-0DE00
Product DescriptionAS-Interface module F90, digital 16 DI (multiplexing) 16 x inputs for 2-wire sensor Connection via screw terminals Width 90 mm
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.02.2017
Price data
Price Group
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,102 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension82,00 x 100,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209289031
UPC754554521367
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM4EC001599
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
IDEA43566
UNSPSC1432-15-17-05
UNSPSC1532-15-17-05
