> SIEMENS>CONTROL AND CONTACTORS>Thermal relays>3RB2483-4AA1 SIEMENS Evaluation unit for full motor protection (monostable) for IO-Link Size S00...S12, clas..
ANUNCIAR
Previous Product Next Product

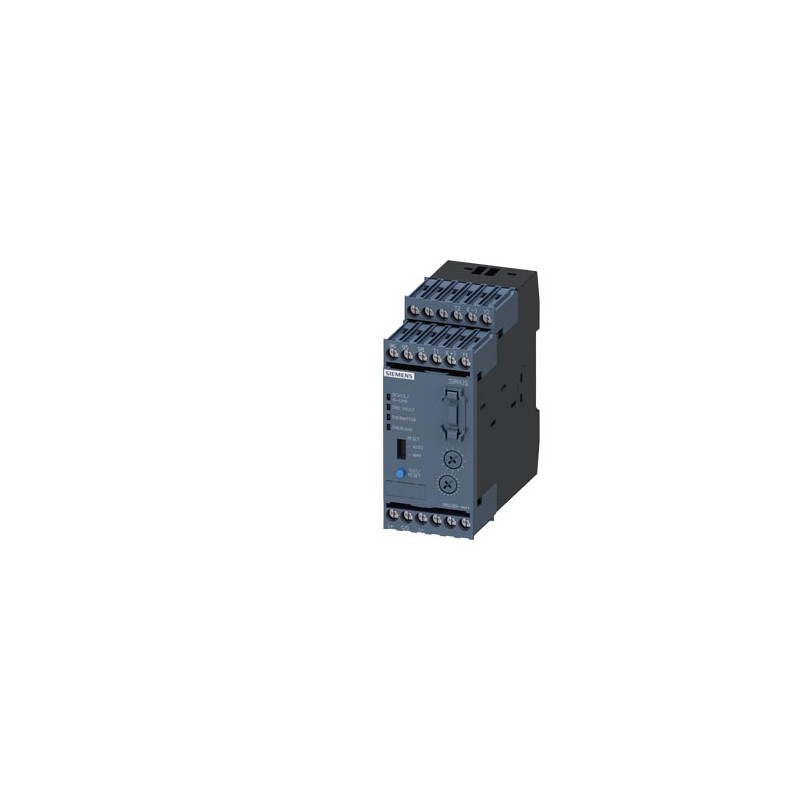

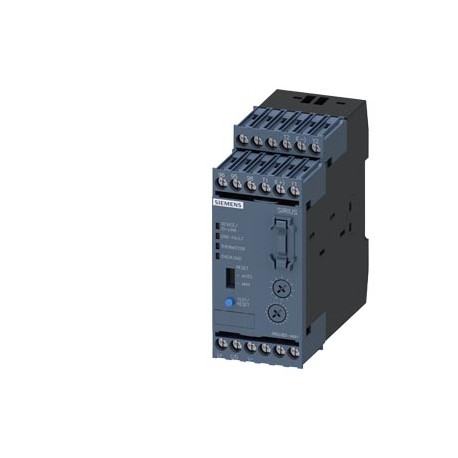

3RB2483-4AA1 SIEMENS Evaluation unit for full motor protection (monostable) for IO-Link Size S00...S12, clas.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RB2483-4AA1 SIEMENS Evaluation unit for full motor protection (monostable) for IO-Link Size S00...S12, clas..

3RB2483-4AA1

SIEMENS

evaluation unit for full motor protection (monostable) for IO-Link frame size S00...S12, class 5...30 stand-alone installation main circuit: -- auxiliary circuit: screw terminal manual-automatic RESET

PROTECTION RELAY (UNIT) FOR PROT. INTEGRAL MOTOR WITH IO-LINK TAM. S00... S12, CLASS 5...30 INDEPENDENT CIRC MOUNT. PPAL.: -- CIRC. AUX.: TERMINALS SCREW REARMAMENT MANUAL-AUTOMAT.

More details


CONTROL AND CONTACTORS > Thermal relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $554.07
Unit price: $554.07
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)3RB2483-4AA1
Product Descriptionevaluation unit for full motor protection (monostable) for IO-Link frame size S00...S12, class 5...30 stand-alone installation main circuit: -- auxiliary circuit: screw terminal manual-automatic RESET
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Announcement of product phase-out
PLM Effective DateProduct phase-out since: 01.10.2023
Price data
Region Specific PriceGroup / Headquarter Price Group41G / 41G
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,273 Kg
Packaging Dimension53,00 x 115,50 x 125,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209863040
UPC040892569957
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5812
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-37-15-02
eClass1427-37-15-02
eClass627-37-15-02
eClass7.127-37-15-02
eClass827-37-15-02
eClass927-37-15-02
eClass9.127-37-15-02
ETIM10EC001080
ETIM7EC001080
ETIM8EC001080
ETIM9EC001080
IDEA45365
UNSPSC1539-12-23-30

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RB2483-4AA1 3RB2483-4AA1 EN_3RB2483-4AA1.pdf 434 Kbytes 3RB2483-4AA1 3RB2483-4AA1 EN_3RB2483-4AA1.pdf
