> SIEMENS>CONTROL AND CONTACTORS>SIRIUS, compact starter>3RA6830-5AC SIEMENS Infeed left or right Connection main circuit: Spring-type terminal Connection terminal m..
Previous Product Next Product

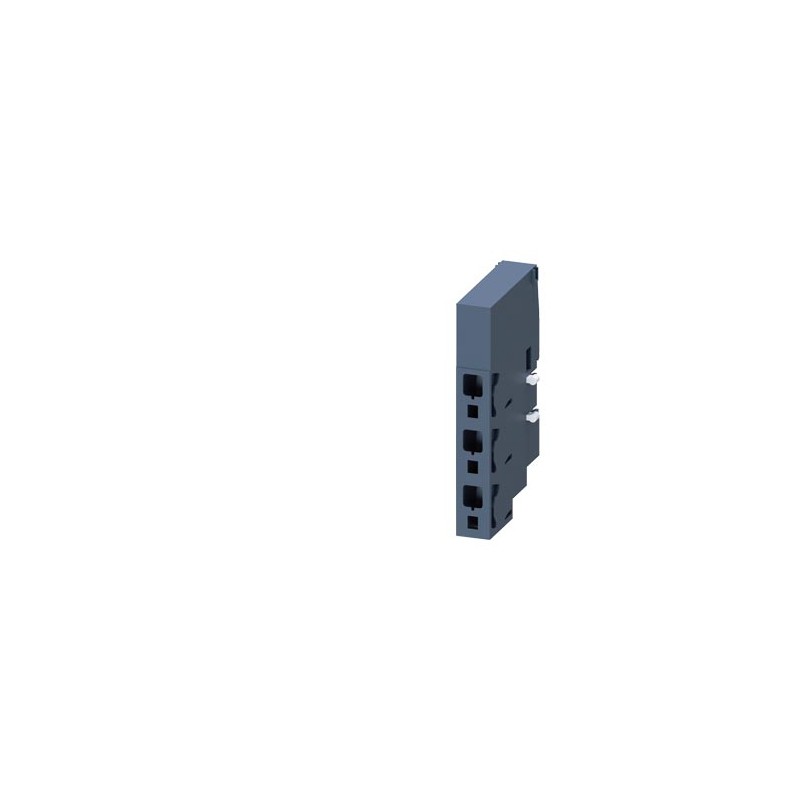

3RA6830-5AC SIEMENS Infeed left or right Connection main circuit: Spring-type terminal Connection terminal m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA6830-5AC SIEMENS Infeed left or right Connection main circuit: Spring-type terminal Connection terminal m..

3RA6830-5AC

SIEMENS

Infeed left or right Connection main circuit: Spring-type terminal Connection terminal maximum 25 mm2,

More details


Low-voltage industrial components > Chassis part power circuit breaker

CONTROL AND CONTACTORS > SIRIUS, compact starter

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


ETIM: EC002043 - Chassis part power circuit breaker

Value Unit
Rated current In (EF008250) 63A
Number of poles (EF001391) 3
Version as busbar adapter (EF006965) false
Version as built-in device (EF006954) true
Type of electrical connection of main circuit (EF006819) Spring clamp connection


Infeed left or right Connection main circuit: Spring-type terminal Connection terminal maximum 25 mm2,
General technical data
Product brand nameSIRIUS
Product designationinfeed left or right
Protection class IPIP20
Degree of pollution3
Installation altitude at height above sea level maximumm2 000
Ambient temperature
● during transport°C-55 ... +80
● during storage°C-55 ... +80
● during operation°C-20 ... +60
Vibration resistancef = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles
Shock resistanceSemi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes
Reference code acc. to DIN EN 61346-2W
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750W
Main circuit
Operating current at AC at 400 V rated valueA63
Operating voltage at AC-3 rated value maximumV690
Installation/ mounting/ dimensions
Mounting typescrew and snap-on mounting
Widthmm27
Heightmm154
Depthmm107
Connections/ Terminals
Type of electrical connection for main current circuitspring-loaded terminals
Wire stripping length for main contactsmm23
Connectable conductor cross-section for supply for main contacts using the upper clamping point
● solidmm²4 ... 35
● strandedmm²4 ... 35
● finely stranded with core end processingmm²4 ... 25
● finely stranded without core end processingmm²6 ... 25
AWG number as coded connectable conductor cross section for supply for main contacts
● using the upper clamping point10 ... 3
Type of connectable conductor cross-sections for supply for main contacts using the upper clamping point
● solid4 ... 35 mm²
● stranded4 ... 35 mm²
● finely stranded with core end processing4 ... 25 mm²
● finely stranded without core end processing6 ... 25 mm²
Type of connectable conductor cross-sections at AWG conductors for supply for main contacts
● using the upper clamping point10 ... 3
Certificates/ approvals
General Product ApprovalEMCDeclaration of ConformityTest Certificates

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Type Test Certificates/Test Report

Shipping Approval

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

other

Confirmation

Safety related data
Protection against electrical shockfinger-safe
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:06/27/2020


Product
Article Number (Market Facing Number)3RA6830-5AC
Product DescriptionInfeed left or right Connection main circuit: Spring-type terminal Connection terminal maximum 25 mm2,
Product familyInfeed system for 3RA6
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,001 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension138,00 x 160,00 x 60,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209725348
UPC662643360684
Commodity Code85369010
LKZ_FDB/ CatalogIDCC-IC10
Product Group5340
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-22
eClass7.127-37-04-22
eClass827-37-04-22
eClass927-37-04-22
eClass9.127-37-04-22
ETIM4EC002043
ETIM5EC002043
ETIM6EC002043
ETIM7EC002043
IDEA44604
UNSPSC1432-15-17-05
UNSPSC1539-12-14-32
