SCAMEInstallation accessories - SCAMEUNION SERIES - SCAME805.RN2520.ES SCAME PRESSTOP M20X1.5 IP66/IP68

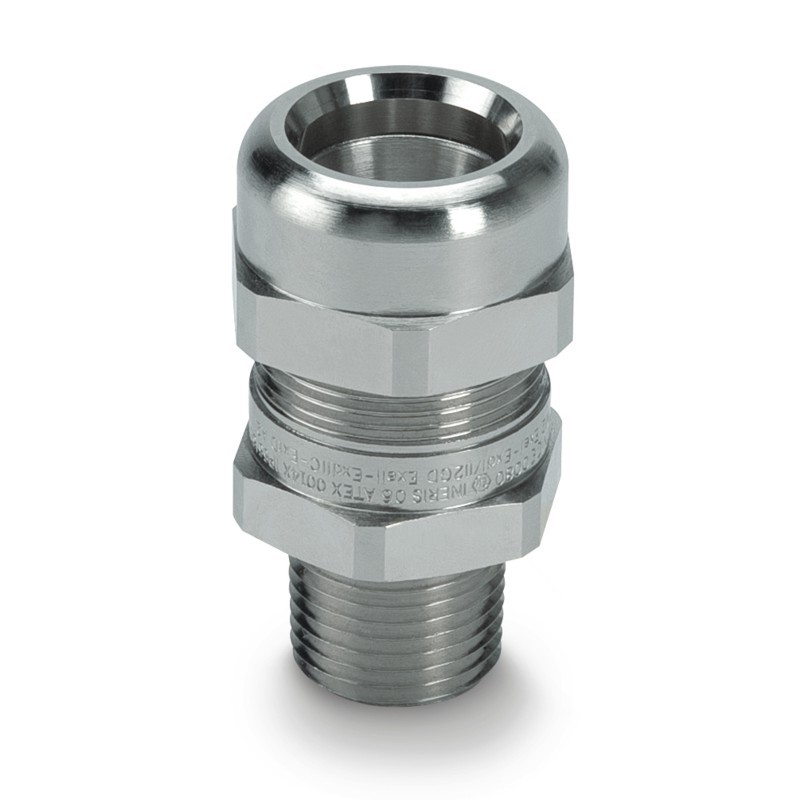

SCAME 805.RN2520.ES 805.RN2520.ES - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

805.RN2520.ES SCAME PRESSTOP M20X1.5 IP66/IP68

Reference: 805.RN2520.ES

Manufacturer: SCAME

Description:

PRESSTOP M20X1.5 IP66/IP68
M20X1,5 FOR UNARMORED CABLE EPDM IP66/IP68 GREY II 2GD IM 2

Categories:

  • SCAME > Installation accessories - SCAME > UNION Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 89,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
UNION-EX[AI] Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66/IP68
Type
FOR UNARMORED CABLE
Gasket
EPDM
Material
STAINLESS STEEL [AISI316L]
Colour
GREY
Thread (type)
Metric
Thread
M20X1,5
Cables (outer sheath)
ø8÷10,5mm
ø10,5÷13mm
ø13÷15,5mm
ø15,5÷18mm
Wrench body fixing (C1)
35mm
Wrench nut fixing (C2)
36mm
Group and categories EX
II 2GD
IM 2
Modo protezione gas
Gas protection mode
Gas protection mode
Gas protection mode
Dust protection
Ex tb IIIC Db IP66
Ambient temperature Ta min
-40 °C
Ambient temperature Ta max
100 °C
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
The cable gland kit is supplied with a set of rubbers for securing the cable; nut and gasket must be purchased separately.

DATASHEET - PDF

Title
Size
Type
805.RN2520.ES 805.RN2520.ES EN_805.RN2520.ES.pdf
20 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
