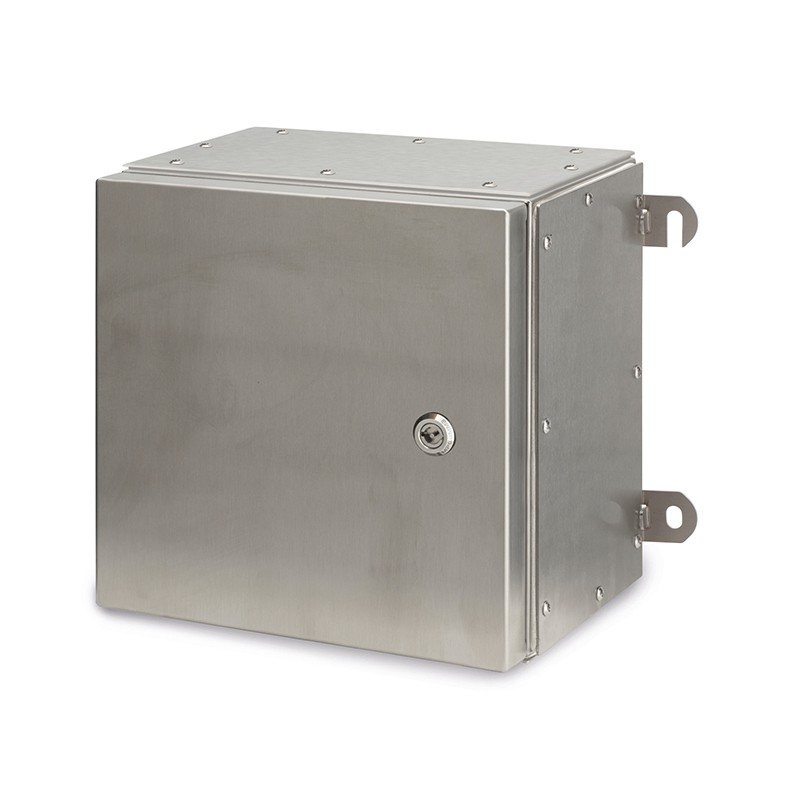

645.D6S192 SCAME SILICON BOX 600x750x210mm 2 FLANGE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

645.D6S192 SCAME SILICON BOX 600x750x210mm 2 FLANGE

645.D6S192

SCAME

SILICON BOX 600x750x210mm 2 FLANGE

600x750x210mm IP66 COMPONENT GREY STAINLESS STEEL [AISI316L] Silicone 2 FLANGE

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ZENITH-S Series
Synthetical description
CABINET
Protection degree
Splash proof
Protection degree IP
IP66
Material
STAINLESS STEEL [AISI316L]
Impact resistance
7J
Gasket
Silicone
Colour
GREY
Dimensions
600x750x210mm
Group and categories EX
II 2GD
Modo protezione gas
Ex eb IIC Gb
Dust protection
Ex tb IIIC Db IP66
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
100 °C
Catalogue notes
For version with lock in AISI 316L add Y at the end of the code
For version with lock in Zamak add Z at the end of the code
The mounting brackets are welded.
Version 2 gland plates top/bottom
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
Standard version supplied with double-bit lock.


Datasheet - PDF
