SCAME592.R001-03-A SCAME BIPOLAR SWITCH 16A 1xM20+2xM20

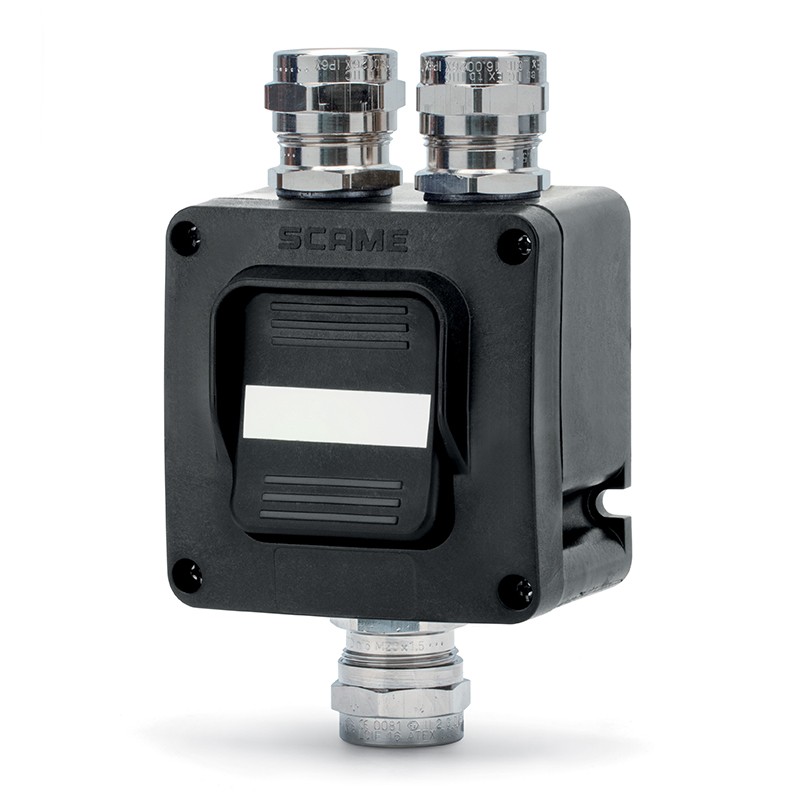

SCAME 592.R001-03-A 592.R001-03-A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

592.R001-03-A SCAME BIPOLAR SWITCH 16A 1xM20+2xM20

Reference: 592.R001-03-A

Manufacturer: SCAME

Description:

BIPOLAR SWITCH 16A 1xM20+2xM20
DP SWITCH 16AX NO+NO 1xM20+2xM20 II 2GD

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 218,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ROCKER-EX[GD] Series
Synthetical description
DP SWITCH
Mounting version
SURFACE MOUNTING
Protection degree
Splash proof
Protection degree IP
IP66
Material
THERMOPLASTIC
Impact resistance
7J
Rated current
16AX
Rated voltage
250V
Notes
NO+NO
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Options
Low temperature [-50°C]
GLOW WIRE
GW 960°C
Cable entry
1xM20+2xM20
Cable size
ø8-10,5mm
Catalogue notes
Cable glands also available in AISI 316L steel (on request).
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
Nickel plated brass cable glands and silicon seal.
Earth plate and earth stud included.

DATASHEET - PDF

Title
Size
Type
592.R001-03-A 592.R001-03-A EN_592.R001-03-A.pdf
44 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
