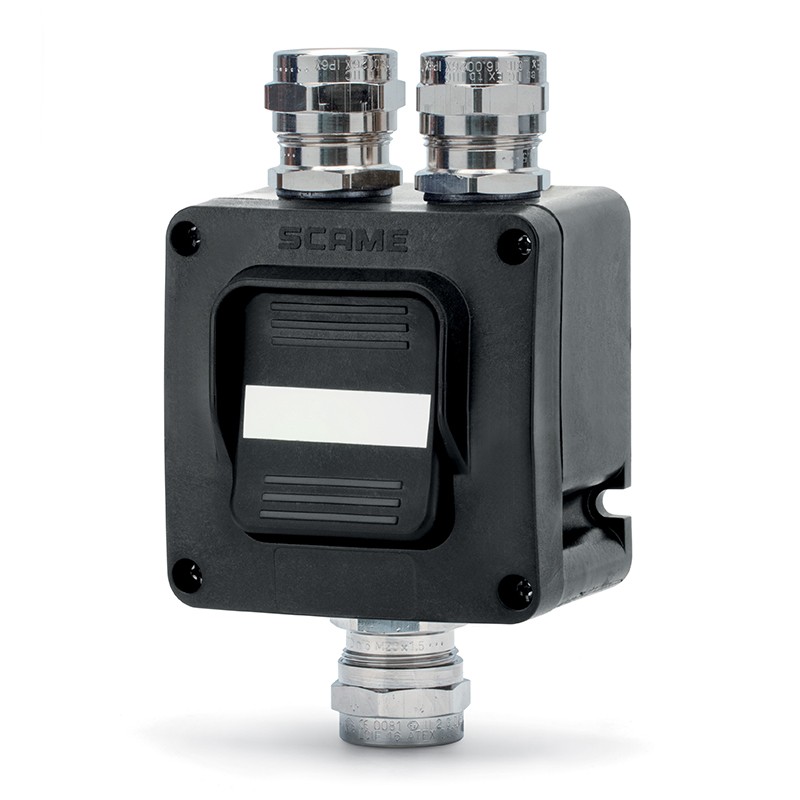

592.R001-02-A SCAME BIPOLAR SWITCH 16A 2xM20 II 2 GD View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

592.R001-02-A SCAME BIPOLAR SWITCH 16A 2xM20 II 2 GD

592.R001-02-A

SCAME

BIPOLAR SWITCH 16A 2xM20 II 2 GD

DP SWITCH 16AX NO+NO 2xM20 II 2GD

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $315.25
Unit price: $315.25
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ROCKER-EX[GD] Series
Synthetical description
DP SWITCH
Mounting version
SURFACE MOUNTING
Protection degree
Splash proof
Protection degree IP
IP66
Material
THERMOPLASTIC
Impact resistance
7J
Rated current
16AX
Rated voltage
250V
Notes
NO+NO
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Options
Low temperature [-50°C]
GLOW WIRE
GW 960°C
Cable entry
2xM20
Cable size
ø8-10,5mm
Catalogue notes
Cable glands also available in AISI 316L steel (on request).
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
Nickel plated brass cable glands and silicon seal.
Earth plate and earth stud included.


Datasheet - PDF
