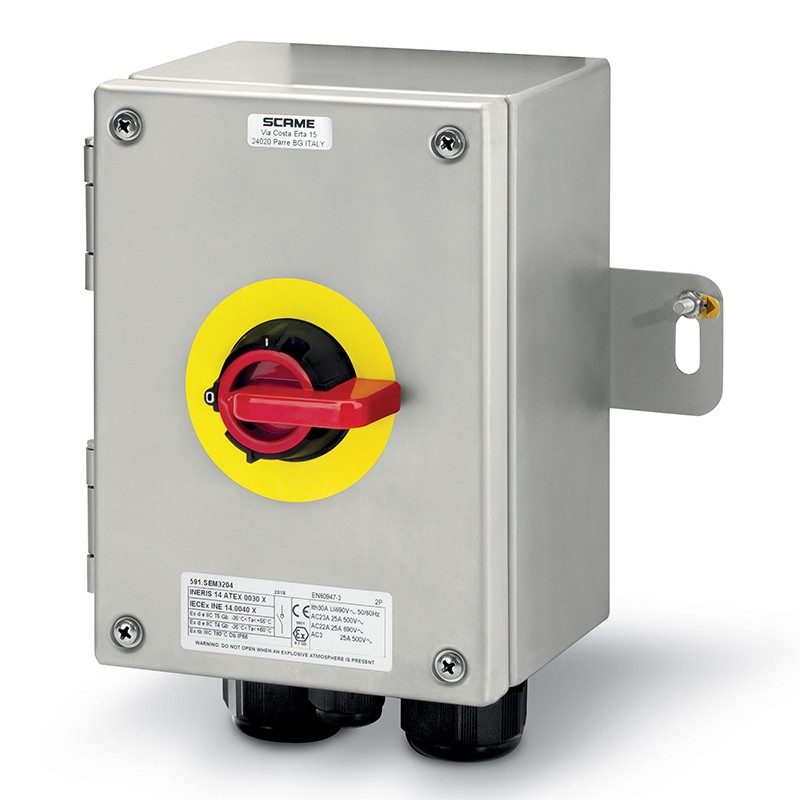

591.SEM4004-A SCAME SWITCH DISCONNECTOR 40A 3/4P IP66 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

591.SEM4004-A SCAME SWITCH DISCONNECTOR 40A 3/4P IP66

591.SEM4004-A

SCAME

SWITCH DISCONNECTOR 40A 3/4P IP66

MANOEUVRING INT. 40A 3/4P IP66

40A 3/4P IP66 201x270x160mm II 2GD 7J EMERGENCY YELLOW/RED

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-EX[GD] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI316L]
Protection degree IP
IP66
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
40A
Poles
3/4P
Dimensions
201x270x160mm
Cable entry
2xM40
Cable size
ø21-30mm
Options
Low temperature [-50°C]
Protection degree IK
7J
Padlock
ø6mm
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Rated insulation voltage (Ui)
690VAC
Current (Ie) in AC22A (690V)
40A
Current (Ie) in AC23A (500V)
40A
Current (Ie) in AC23A (690V)
40A
Current (Ie) in AC3 (500V)
40A
Terminals - Flexible wires
25mm²
Terminals - Rigid wires
35mm²
Terminals tightening torque
2,5Nm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Earth-stud included
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.


Datasheet - PDF
