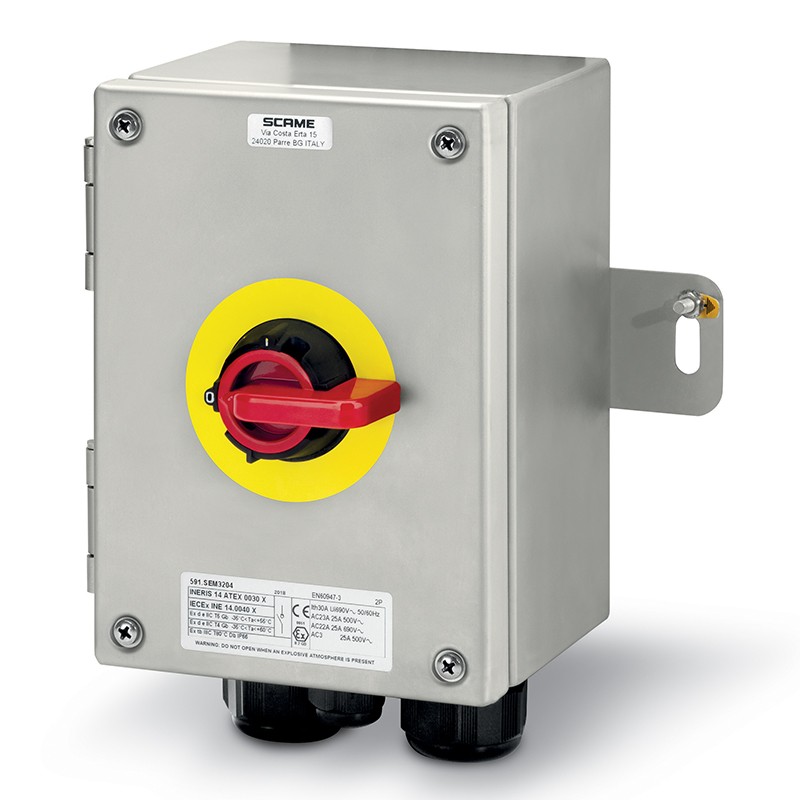

591.SEM3202 SCAME SWITCH DISCONNECTOR 32A 2P IP66 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

591.SEM3202 SCAME SWITCH DISCONNECTOR 32A 2P IP66

591.SEM3202

SCAME

SWITCH DISCONNECTOR 32A 2P IP66

MANOEUVRING INT. 32A 2P IP66

32A 2P IP66 141x200x126mm II 2GD EMERGENCY YELLOW/RED

More details


Industrial socket/plug applications > Explosion proof switch

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $890.12
Unit price: $890.12
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-EX[GD] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI316L]
Protection degree IP
IP66
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
32A
Poles
2P
Dimensions
141x200x126mm
Cable entry
2xM25
Cable size
ø10-14mm
Impact resistance
7J
Padlock
ø6mm
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
55 °C
Rated insulation voltage (Ui)
690VAC
Current (Ie) in AC22A (690V)
32A
Current (Ie) in AC23A (500V)
32A
Current (Ie) in AC3 (500V)
25A
Terminals - Flexible wires
10mm²
Terminals - Rigid wires
16mm²
Terminals tightening torque
0,8Nm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Earth-stud included
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
