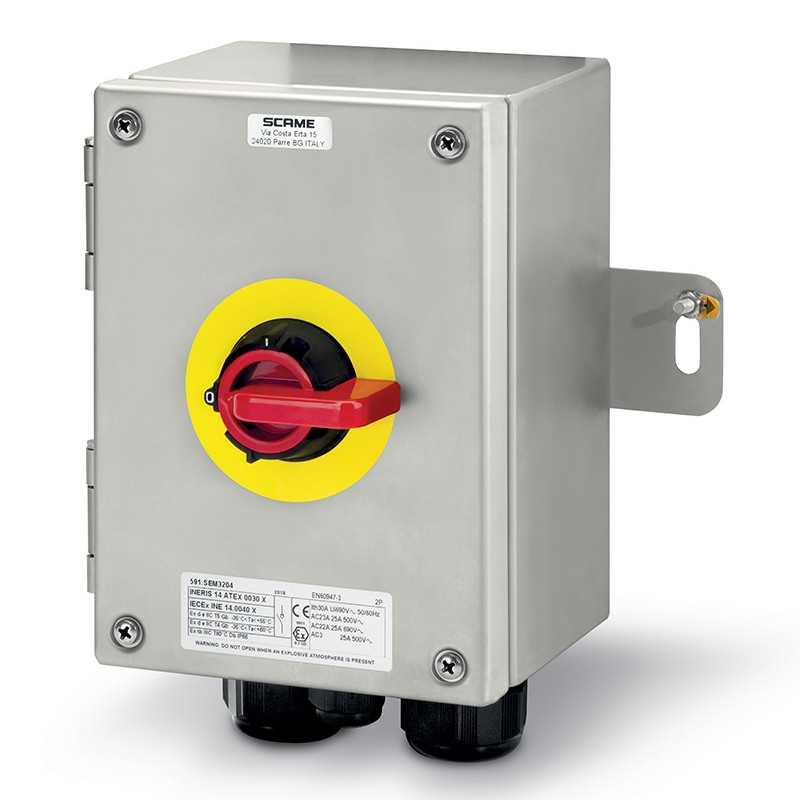

591.SEM2002 SCAME SWITCH DISCONNECTOR 20A 2P IP66 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

591.SEM2002 SCAME SWITCH DISCONNECTOR 20A 2P IP66

591.SEM2002

SCAME

SWITCH DISCONNECTOR 20A 2P IP66

20A 2P IP66 141x200x126mm II 2GD EMERGENCY YELLOW/RED

More details


Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ISOLATORS-EX[GD] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI316L]
Protection degree IP
IP66
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
20A
Poles
2P
Dimensions
141x200x126mm
Cable entry
2xM25
Cable size
ø10-14mm
Impact resistance
7J
Padlock
ø6mm
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Rated insulation voltage (Ui)
690VAC
Current (Ie) in AC22A (690V)
20A
Current (Ie) in AC23A (500V)
20A
Current (Ie) in AC3 (500V)
20A
Terminals - Flexible wires
10mm²
Terminals - Rigid wires
16mm²
Terminals tightening torque
0,8Nm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
Earth-stud included
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
