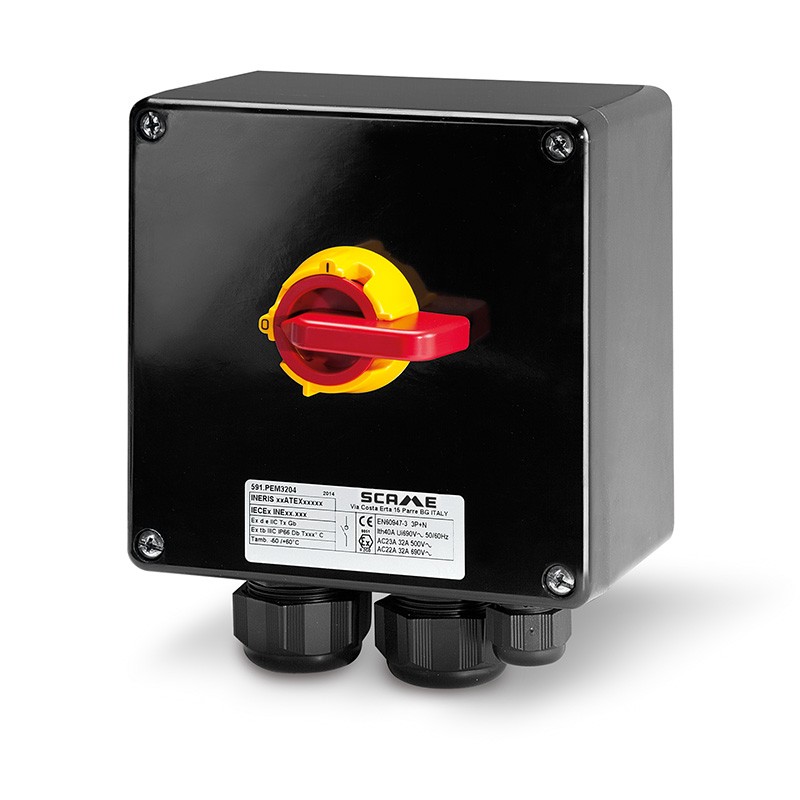

591.PEM2004 SCAME ISOLATOR EX "GD" EM. USE 3/4P 20A GRP View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

591.PEM2004 SCAME ISOLATOR EX "GD" EM. USE 3/4P 20A GRP

591.PEM2004

SCAME

ISOLATOR EX "GD" - EM. USE 3/4P 20A GRP

MANOEUVRING INT. 20A 3/4P IP66

20A 3/4P IP66 160x160x90mm II 2GD EMERGENCY YELLOW/RED GW 960°C

More details


Industrial socket/plug applications > Explosion proof switch

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $389.12
Unit price: $389.12
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

Best sellers

More info



Commercial Series
ISOLATORS-EX[GD] Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
ENGINEERING PLASTIC
Protection degree IP
IP66
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
20A
Poles
3/4P
Dimensions
160x160x90mm
Cable entry
2xM25
Cable size
ø10-14mm
GLOW WIRE
GW 960°C
Impact resistance
7J
Padlock
ø6mm
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Rated insulation voltage (Ui)
690VAC
Current (Ie) in AC22A (690V)
20A
Current (Ie) in AC23A (500V)
20A
Current (Ie) in AC3 (500V)
20A
Terminals - Flexible wires
10mm²
Terminals - Rigid wires
16mm²
Terminals tightening torque
0,8Nm
Catalogue notes
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
